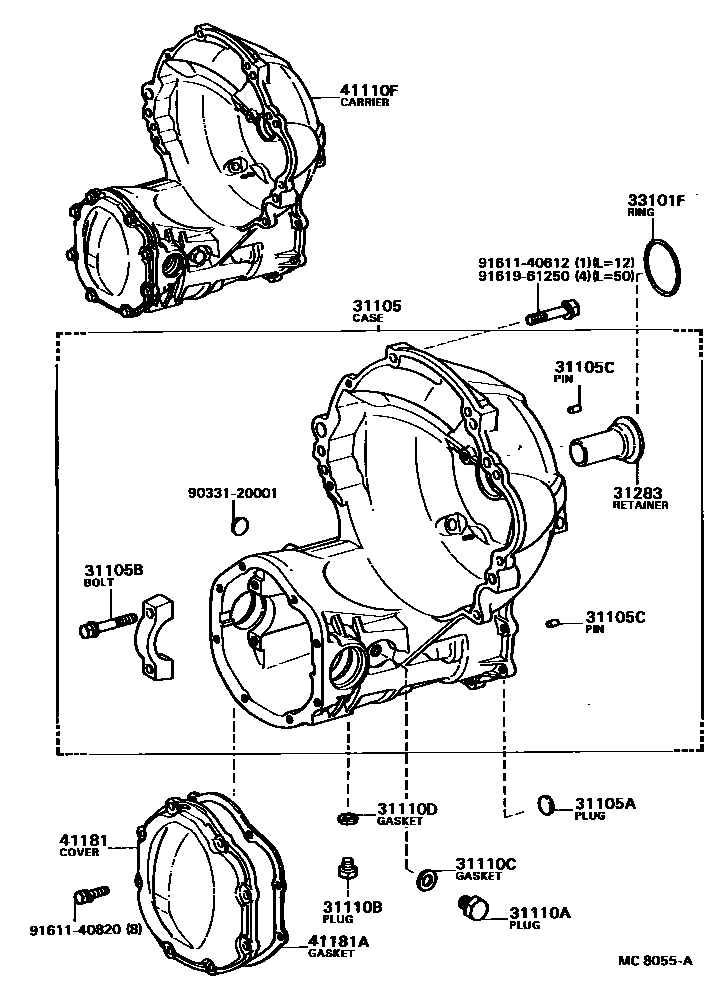

Toyota TERCEL — FRONT AXLE HOUSING & DIFFERENTIAL

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-16011i197901-198204

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-29001i197901-198204

31105BBOLT, HEXAGON(FOR DIFFERENTIAL BEARING CAP SETTING)

main90105-10008×4i197901-198204

31105CPIN, STRAIGHT(FOR TRANSAXLE CASE)

main90250-10232×2i197901-198204

31110APLUG(FOR DIFFERENTIAL FILLER)

main90341-18002i197901-197908

main90341-18006i197908-198204

31110BPLUG(FOR DIFFERENTIAL DRAIN)

main90341-18057i197901-198204

31110CGASKET(FOR DIFFERENTIAL FILLER)

main12157-10010i197901-198204

31110DGASKET(FOR DIFFERENTIAL DRAIN)

main12157-10010i197901-198204

31283RETAINER, CLUTCH RELEASE BEARING HUB

main31283-16010i197901-198204

33101FRING, O(FOR INPUT FRONT)

main90301-54002i197901-198204

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-16020i197901-197906

*AXC=Y302,R=41:11

main41110-16021i197906-198204

*AXC=Y302,R=41:11

main41110-16050i198008-198204

*AXC=Y302,R=3.727

main41110-16070i198008-198204

*AXC=Y372,R=3.583

41181COVER, FRONT DIFFERENTIAL CARRIER

main41181-16010i197901-197906

main41181-16020i197906-198204

41181AGASKET, FRONT DIFFERENTIAL CARRIER COVER

main41182-16010i197901-198204

9033120001

main90331-20001

9161140612

main91611-40612

9161140820

main91611-40820

9161961250

main91619-61250

17 parts on this diagram · 5 diagrams in section

FRONT AXLE HOUSING & DIFFERENTIAL for Toyota TERCEL

This section contains 51 genuine Toyota parts for the FRONT AXLE HOUSING & DIFFERENTIAL system of the Toyota TERCEL. Key components include: CASE SUB-ASSY, TRANSAXLE(MTM), PLUG, TIGHT(FOR FRONT TRANSAXLE CASE), BOLT, HEXAGON(FOR DIFFERENTIAL BEARING CAP SETTING), PIN, STRAIGHT(FOR TRANSAXLE CASE), PLUG(FOR DIFFERENTIAL FILLER).
