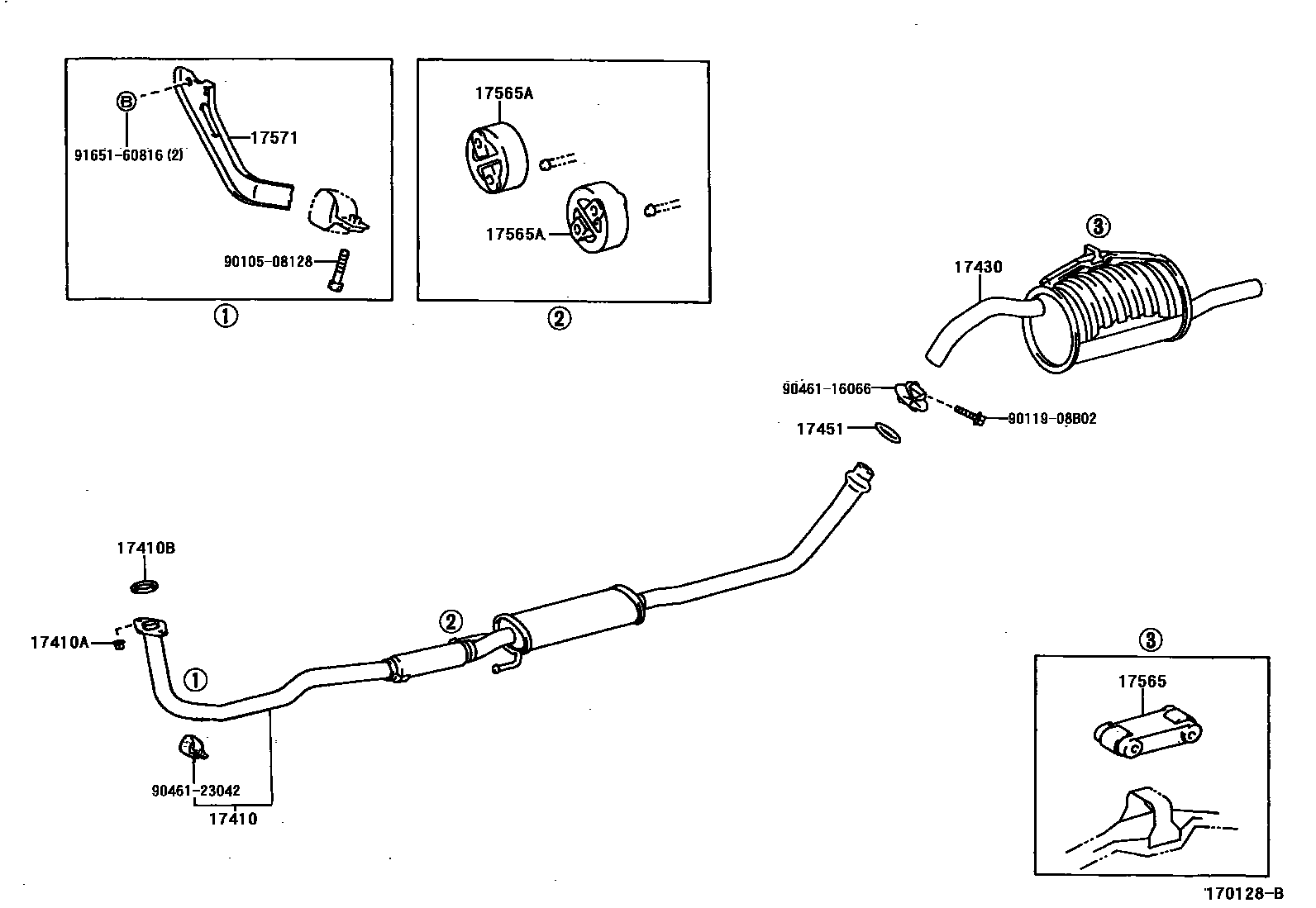

Toyota TERCEL — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17451GASKET, EXHAUST PIPE
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
9010508128
main90105-08128
9011908B02
main90119-08B02
9046116066
main90461-16066
9046123042
main90461-23042
9165160816
main91651-60816
13 parts on this diagram · 3 diagrams in section
EXHAUST PIPE for Toyota TERCEL
This section contains 27 genuine Toyota parts for the EXHAUST PIPE system of the Toyota TERCEL. Key components include: CONVERTER ASSY, W/CATALYST, PIPE ASSY, EXHAUST, FRONT, NUT, EXHAUST PIPE SET STUD BOLT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER.
