Toyota TERCEL — EXHAUST GAS RECIRCULATION SYSTEM

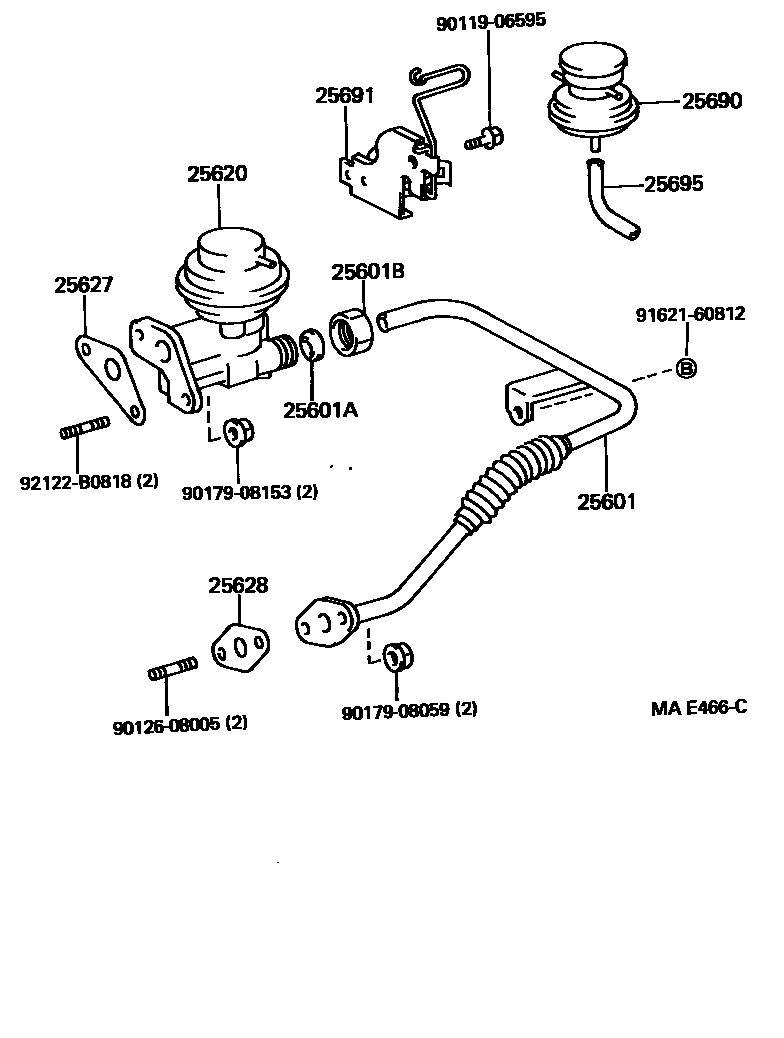

Parts diagram

25601PIPE SUB-ASSY, EGR, NO.1

main25611-11040i199409-199508

main25611-11050i199508

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-14005i199409-199508

25601BNUT, UNION, EGR PIPE, NO.1

main90402-22076i199409-199508

25620VALVE ASSY, EGR

main25620-11130i199409-199508

main25620-11140i199508

main25620-11150i199508

25627GASKET, EGR VALVE

main25627-11030i199508

main25627-11040i199409-199508

25628GASKET, EGR INLET

main25628-11020i199409-199508

25690MODULATOR ASSY, EGR VACUUM

main25870-11080i199409-199508

main25870-11090i199508

main25870-11100i199508

25691BRACKET, EGR VACUUM MODULATOR

main25691-11050i199409-199508

main25691-11060i199508

25695HOSE, EGR VACUUM MODULATOR

main25695-11010i199409-199508

9011906595

main90119-06595

9012608005

main90126-08005

9017908059

main90179-08059

9017908153

main90179-08153

9162160812

main91621-60812

92122B0818

main92122-B0818

15 parts on this diagram · 2 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota TERCEL

This section contains 18 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota TERCEL. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, VALVE ASSY, EGR, GASKET, EGR VALVE.
