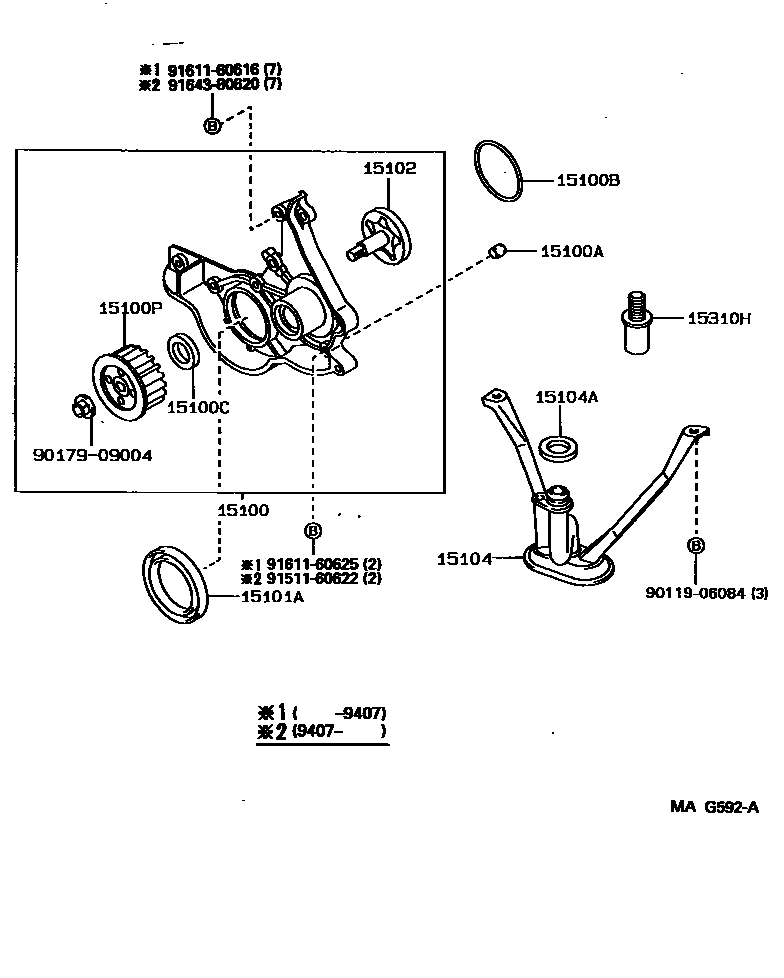

Toyota TERCEL — ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-11050i199009-199407

main15100-11051i199407-199409

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001×2i199009-199409

15100BRING, O(FOR OIL PUMP)

main90301-55005i199009-199409

15100CSEAL(FOR OIL PUMP)

main90029-21007i199009-199305

main90029-21020i199305-199409

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-11010i199009-199409

15101ASEAL(FOR CRANKSHAFT)

main90311-35013i199009-199409

15102ROTOR SET, OIL PUMP

main15102-11040i199009-199409

15104STRAINER SUB-ASSY, OIL

main15104-10020i199009-199409

15104ARING, O(FOR OIL STRAINER)

main96721-24015i199009-199409

15310HREGULATOR ASSY, OIL

main15310-10010i199009-199409

9011906084

main90119-06084

9017909004

main90179-09004

9151160622

main91511-60622

9161160616

main91611-60616

9161160625

main91611-60625

9164380620

main91643-80620

16 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota TERCEL

This section contains 16 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota TERCEL. Key components include: PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP), PULLEY, OIL PUMP DRIVE SHAFT.
