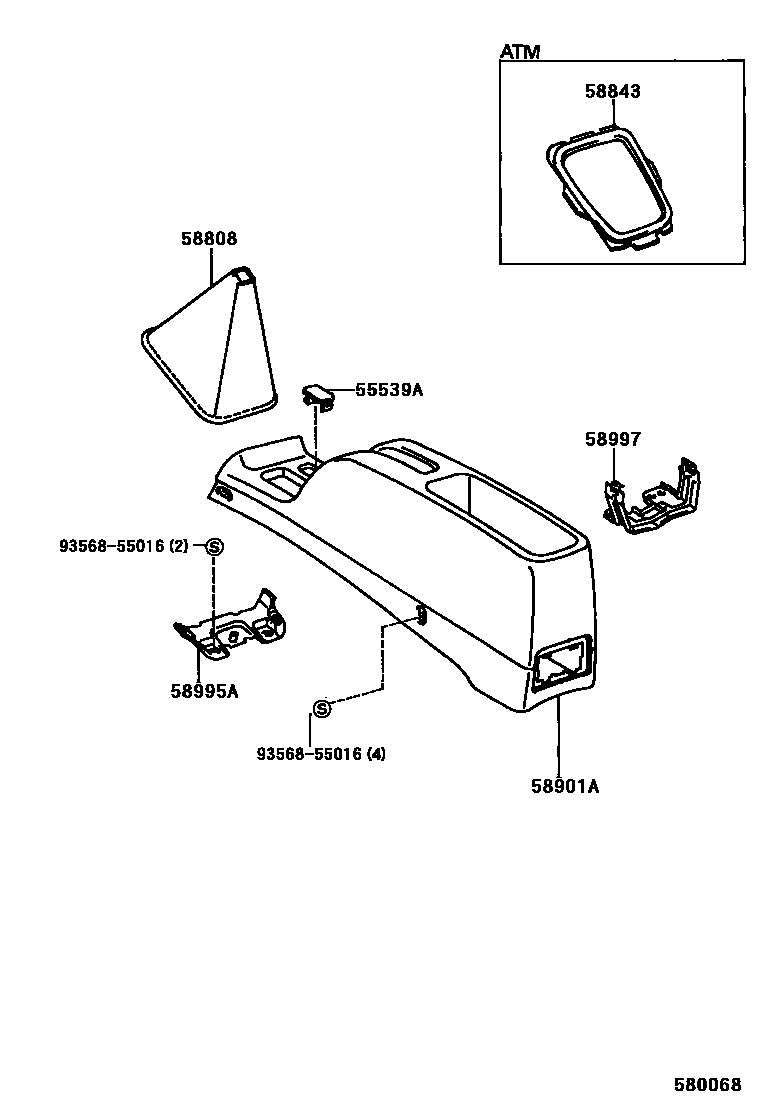

Toyota TERCEL — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-12120-B0iEL5#199608

SHADOW GRAY,TRIM1#

sub55539-32010

main55539-12120-B1iEL5#199409-199608

BLUISH GRAY,TRIM1#

sub55539-32010

main55539-12120-E2iEL5#199409

OAK,TRIM4#

sub55539-32010

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-16100-B0iEL5#..5F199409-199508

BLUISH GRAY,TRIM1#

main58808-16100-B1iEL5#..5F199508-199907

SHADOW GRAY,TRIM1#

main58808-16100-E0iEL5#..5F199409-199608

OAK,TRIM4#

main58808-16100-E1iEL5#..5F199712-199907

SANDAL WOOD,TRIM4#

58843BEZEL, SHIFTING HOLE

main58843-16040-B0iEL5#..ATM199409-199508

BLUISH GRAY,TRIM1#

main58843-16040-B1iEL5#..ATM199508

SHADOW GRAY,TRIM1#

main58843-16040-E1iEL5#..ATM199712

SANDAL WOOD,TRIM4#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-16130-B0iEL5#199409-199608

BLUISH GRAY,TRIM1#

main58901-16130-B1iEL5#199608

SHADOW GRAY,TRIM1#

main58901-16130-E0iEL5#199409

OAK,TRIM4#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-16070iEL5#199409

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-16070iEL5#199409

9356855016

main93568-55016

7 parts on this diagram · 1 diagram in section
