Toyota TERCEL — CARBURETOR ASSEMBLY

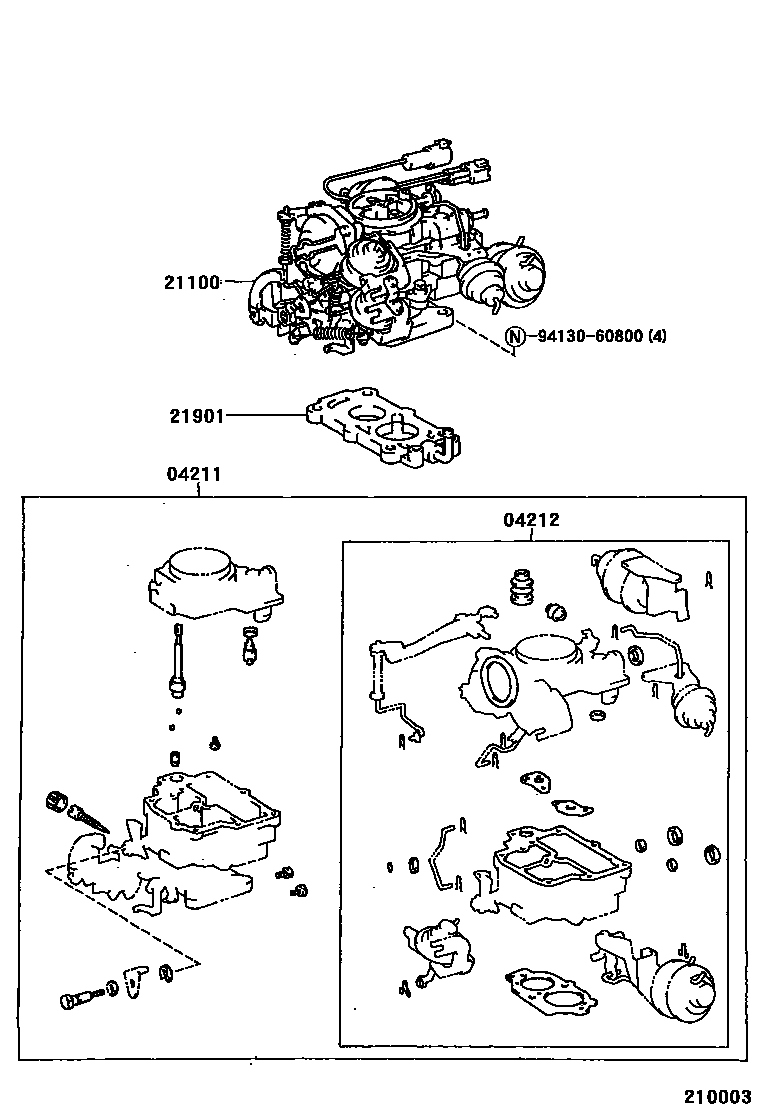

Parts diagram

04211CARBURETOR KIT

main04211-11180i199409-199501

main04211-1B020i199409-199705

main04211-1B060i199501

main04211-1B070i199705-199808

main04211-1B071i199808

04212GASKET KIT, CARBURETOR

main04212-11071i199409

21100CARBURETOR ASSY

main21100-11850i199409

main21100-11870i199409

main21100-1B020i199409-199705

main21100-1B021i199705-199712

COLOMBIA SPEC

main21100-1B022i199808

main21100-1B040i199409-199508

main21100-1B070i199508-199705

main21100-1B071i199705-199808

main21100-1B072i199808

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-11060i199409

9413060800

main94130-60800

5 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota TERCEL

This section contains 5 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota TERCEL. Key components include: CARBURETOR KIT, GASKET KIT, CARBURETOR, CARBURETOR ASSY, INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1.
