Toyota TERCEL — CARBURETOR ASSEMBLY

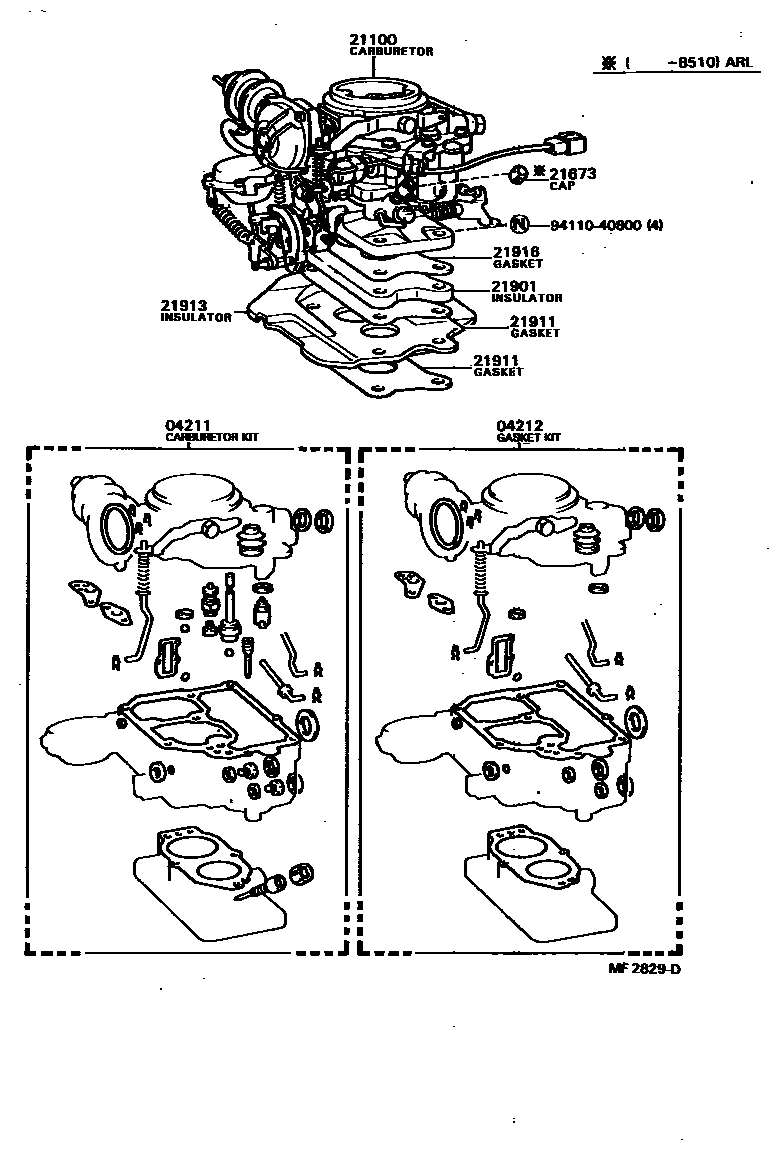

Parts diagram

04211CARBURETOR KIT

main04211-14050i198205-198801

main04211-14060i198205-198801

main04211-15100i198209-198605

main04211-15120i198308-198406

main04211-15140i198406-198511

main04211-15160i198511-198801

04212GASKET KIT, CARBURETOR

main04212-14010i198205-198801

main04212-15032i198605-198801

main04212-15040i198605-198801

SWEDEN SPEC

main04212-15100i198406-198511

main04212-15120i198511-198801

21100CARBURETOR ASSY

main21100-14090i198205-198801

main21100-14100i198205-198801

main21100-14110i198205-198801

main21100-14120i198205-198801

main21100-15310i198605-198801

SWEDEN SPEC

main21100-15340i198605-198801

main21100-15350i198308-198406

main21100-15351i198406-198511

main21100-15360i198511-198801

21673CAP, IDLE LIMIT

main21673-13280i198308-198511

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-15011i198205-198210

main21901-15012i198210-198605

main21901-15030i198605-198801

21911GASKET, CARBURETOR

main21916-15030×2i198205-198801

21913INSULATOR, CARBURETOR HEAT, NO.2

main21913-15030i198205-198801

21916GASKET, CARBURETOR, NO.2

main21911-15030i198605-198801

main21914-15020i198605-198801

SWEDEN SPEC

9411040800

main94110-40800

9 parts on this diagram · 2 diagrams in section

CARBURETOR ASSEMBLY for Toyota TERCEL

This section contains 10 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota TERCEL. Key components include: CARBURETOR KIT, GASKET KIT, CARBURETOR, CARBURETOR ASSY, CAP, IDLE LIMIT, INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1.
