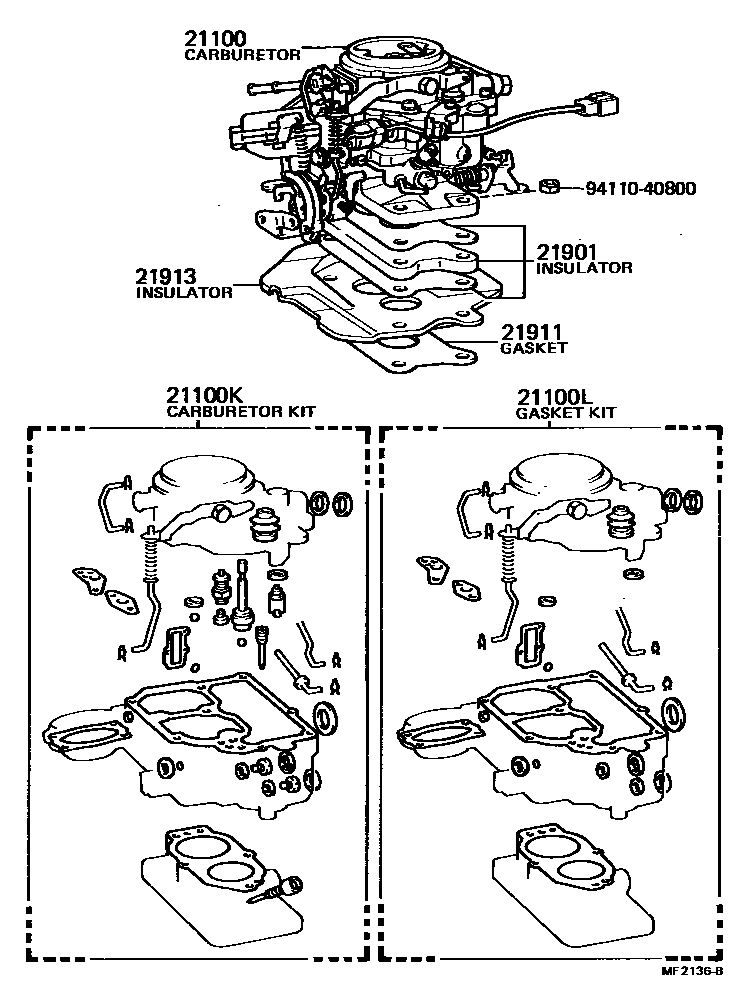

Toyota TERCEL — CARBURETOR ASSEMBLY

21100CARBURETOR ASSY

main21100-14010i197901-197910

main21100-14011i197910-198008

main21100-14012i198008-198204

main21100-14020i197901-197910

main21100-14021i197910-198002

main21100-14030i197901-197910

main21100-14031i197910-198002

main21100-14040i197901-197910

HONG KONG SPEC

main21100-14041i197910-198002

HONG KONG SPEC

main21100-14050i197908-198008

main21100-14051i198008-198204

main21100-14060i197908-198002

main21100-14061i198008-198204

main21100-14070i198002-198008

main21100-14071i198008-198204

main21100-14080i197908-198002

HONG KONG SPEC

main21100-14081i198008-198204

HONG KONG SPEC

21100KCARBURETOR KIT

main04211-14010i197901-197910

HONG KONG SPEC

main04211-14020i197901-197910

main04211-14030i197908-197910

HONG KONG SPEC

main04211-14031i198004-198204

HONG KONG SPEC

main04211-14040i197910-198004

main04211-14041i198004-198204

21100LGASKET KIT, CARBURETOR

main04212-14010i197901-198204

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-15010i197901-198204

21911GASKET, CARBURETOR

main21911-15010i197901-198204

21913INSULATOR, CARBURETOR HEAT, NO.2

main21913-15010i197901-198204

9411040800

main94110-40800

7 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota TERCEL

This section contains 7 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota TERCEL. Key components include: CARBURETOR ASSY, CARBURETOR KIT, GASKET KIT, CARBURETOR, INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1, GASKET, CARBURETOR.
