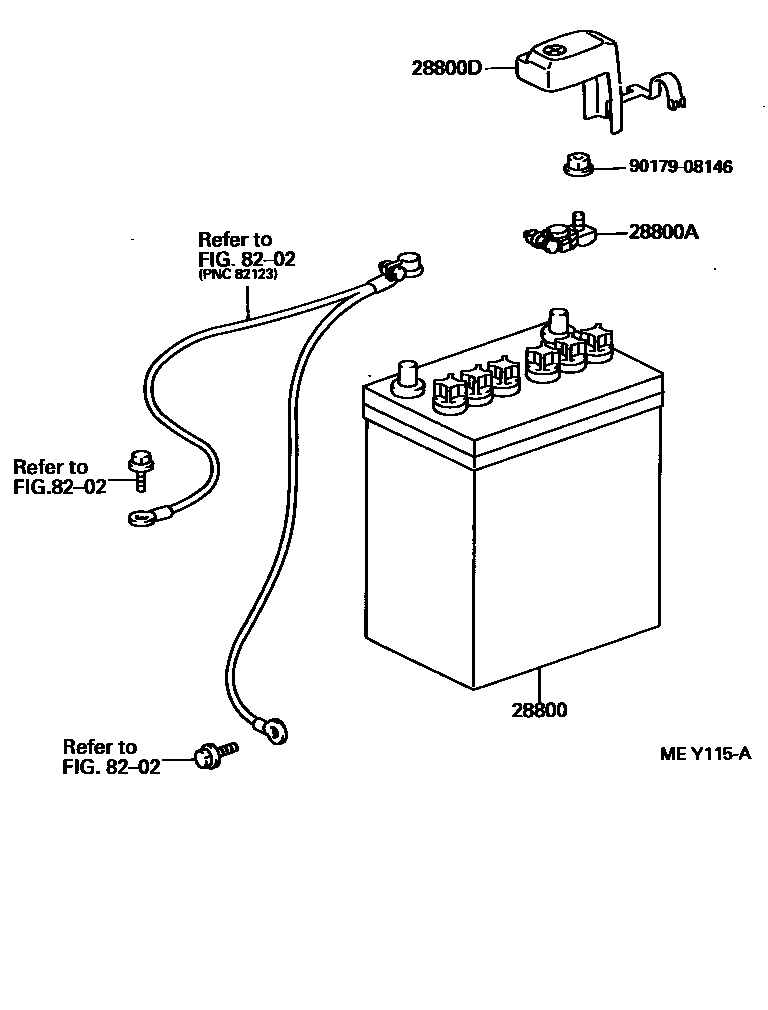

Toyota TERCEL — BATTERY & BATTERY CABLE

28800BATTERY

main28800-13060i199409-199603

28B19R

main28800-24030i199409

34B19R

main28800-33050i199508-199712

46B24R

main28800-33090i199409

32C24R

28800ATERMINAL, BATTERY POSITIVE

main90982-05034i199409

main90982-05035i199409

W(BATTERY=32C24R)

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i199409

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

5 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota TERCEL

This section contains 5 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota TERCEL. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), WIRING & CLAMP.
