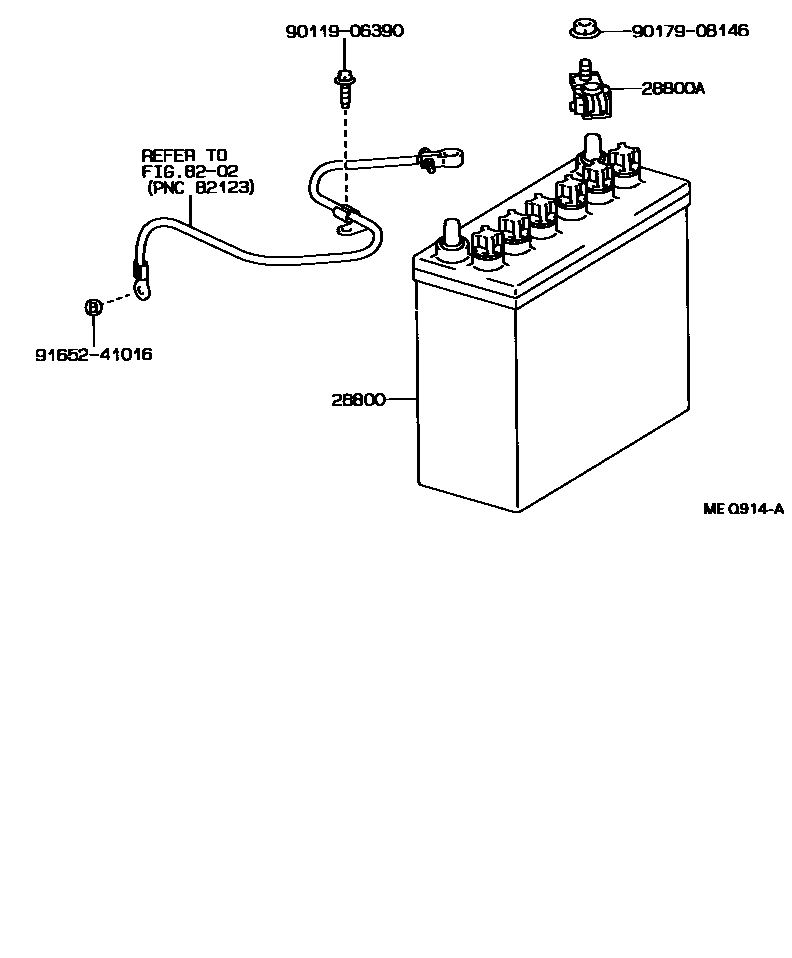

Toyota TERCEL — BATTERY & BATTERY CABLE

28800BATTERY

main28800-13060i199009-199409

28B19R

main28800-24030i199009-199409

34B19R

main28800-33101i199009-199409

32C24R

28800ATERMINAL, BATTERY POSITIVE

main90982-05034i199009-199409

main90982-05035i199009-199409

W(BATTERY=32C 24L)

8202WIRING & CLAMP

→ Go to FIG 82-02

9011906390

main90119-06390

9017908146

main90179-08146

9165241016

main91652-41016

6 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota TERCEL

This section contains 6 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota TERCEL. Key components include: BATTERY, TERMINAL, BATTERY POSITIVE, WIRING & CLAMP.
