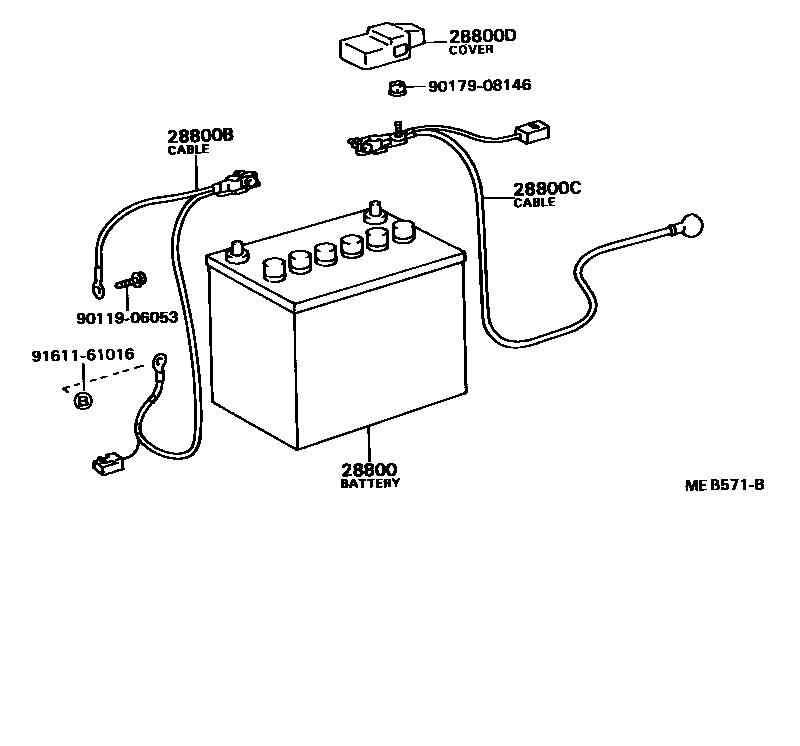

Toyota TERCEL — BATTERY & BATTERY CABLE

28800BATTERY

main28800-14010i198205-198801

55D23R,55D23R

main28800-14030i198605-198801

50D20R,50D20R-MF

main28800-24030i198205-198801

34B19R,34B19R(NS40ZA)

main28800-33071i198205-198801

32C24R,32C24R(N40)

28800BCABLE, BATTERY TO GROUND

main82123-16010i198205-198801

BATTERY=34B19R(NS40ZA)

main82123-16020i198205-198801

BATTERY=32C24R(N40),55D23R

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-16010i198205-198710

BATTERY=34B19R(NS40ZA)

main82122-16011i198710-198801

BATTERY=34B19R

main82122-16030i198205-198801

BATTERY=32C24R(N40); STARTER=12V 0.8KW

main82122-16040i198205-198801

STARTER=12V 1.0KW

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i198205-198801

9011906053

main90119-06053

9017908146

main90179-08146

9161161016

main91611-61016

7 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota TERCEL

This section contains 7 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota TERCEL. Key components include: BATTERY, CABLE, BATTERY TO GROUND, CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH), COVER, CONNECTOR(FOR BATTERY TERMINAL).
