Toyota TERCEL — BATTERY & BATTERY CABLE

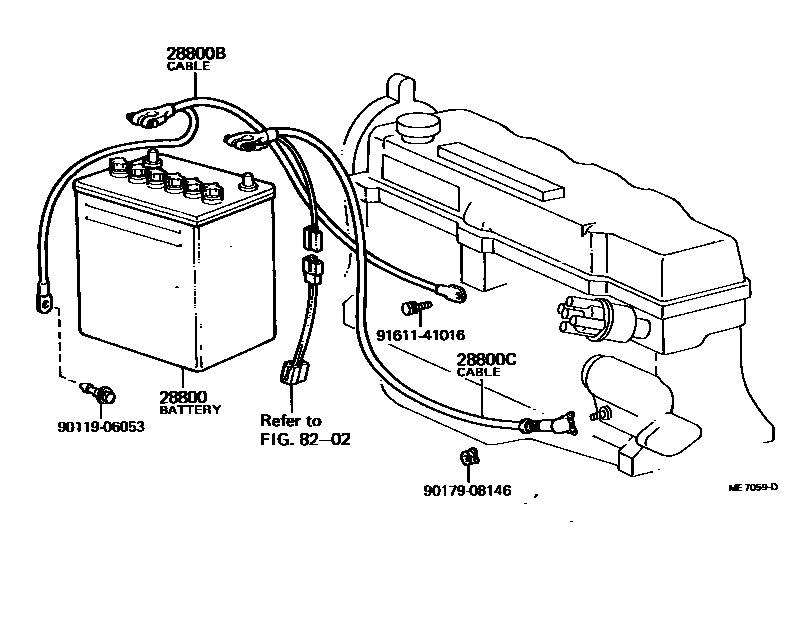

Parts diagram
28800BATTERY
main28800-14010i198008-198204
55D23R,55D 23R
main28800-24030i197901-198204
34B19R,NS40ZA
main28800-33071i197901-198204
32C24R,N40
main28800-33111i197901-198008
55D26R,N50Z
28800BCABLE, BATTERY TO GROUND
main90982-02177i197901-198008
L=750
main90982-02182i197901-198008
L=660
main90982-02213i198008-198204
L=750
main90982-02214i198008-198204
L=660
28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
main90982-01257i197901-198008
L=470
main90982-01268i198008-198204
L=470
main90982-01288i197901-198008
L=550
main90982-01333i198008-198204
L=470
main90982-01381i198008-198204
L=550
8202WIRING & CLAMP
→ Go to FIG 82-02
9011906053
main90119-06053
9017908146
main90179-08146
9161141016
main91611-41016

7 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota TERCEL

This section contains 7 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota TERCEL. Key components include: BATTERY, CABLE, BATTERY TO GROUND, CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH), WIRING & CLAMP.
