Toyota TERCELBACK UP LAMP

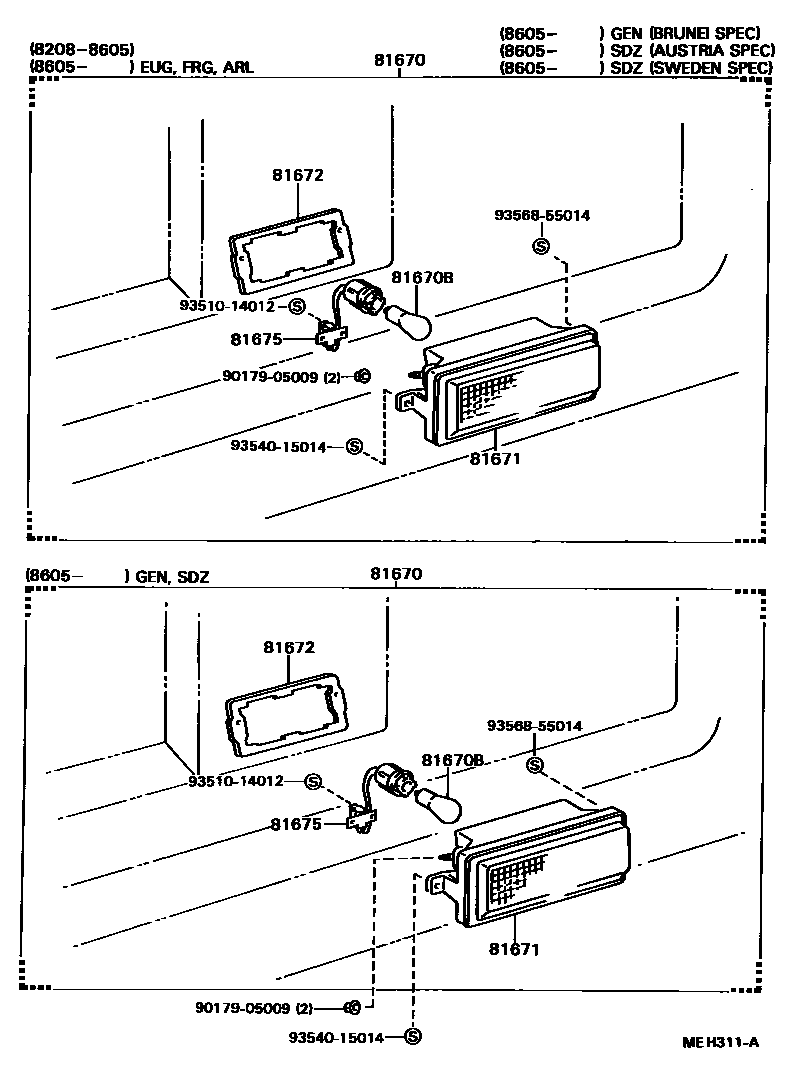

Parts diagram
81670LAMP ASSY, BACK-UP, RH
main81670-16020i198605-198801
SWEDEN OR AUSTRIA SPEC
main81670-16040i198605-198801
main81670-19125i198208-198605
main81670-19135i198605-198801
BRUNEI SPEC
81670BBULB(FOR BACK-UP LAMP)
main99132-11210i198605-198801
12V 21W,12V 21W; 12V 21W,BRUNEI SPEC,12V 21W; 12V 21W,SWEDEN OR AUSTRIA SPEC,12V 21W
main99132-11230i198208-198605
12V 23W,12V 23W
81671LENS, BACK-UP LAMP, RH
main81671-16010i198208-198605
main81671-16030i198605-198801
BRUNEI SPEC; SWEDEN OR AUSTRIA SPEC
main81671-16040i198605-198801
81672GASKET, BACK-UP LAMP LENS, RH
main81672-16010i198208-198801
81675SOCKET & WIRE, BACK-UP LAMP
main81675-16010i198605-198801
main81675-16020i198605-198801
BRUNEI SPEC; SWEDEN OR AUSTRIA SPEC
9017905009
9351014012
9354015014
9356855014

9 parts on this diagram · 1 diagram in section

BACK UP LAMP for Toyota TERCEL

This section contains 9 genuine Toyota parts for the BACK UP LAMP system of the Toyota TERCEL. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, GASKET, BACK-UP LAMP LENS, RH, SOCKET & WIRE, BACK-UP LAMP.
