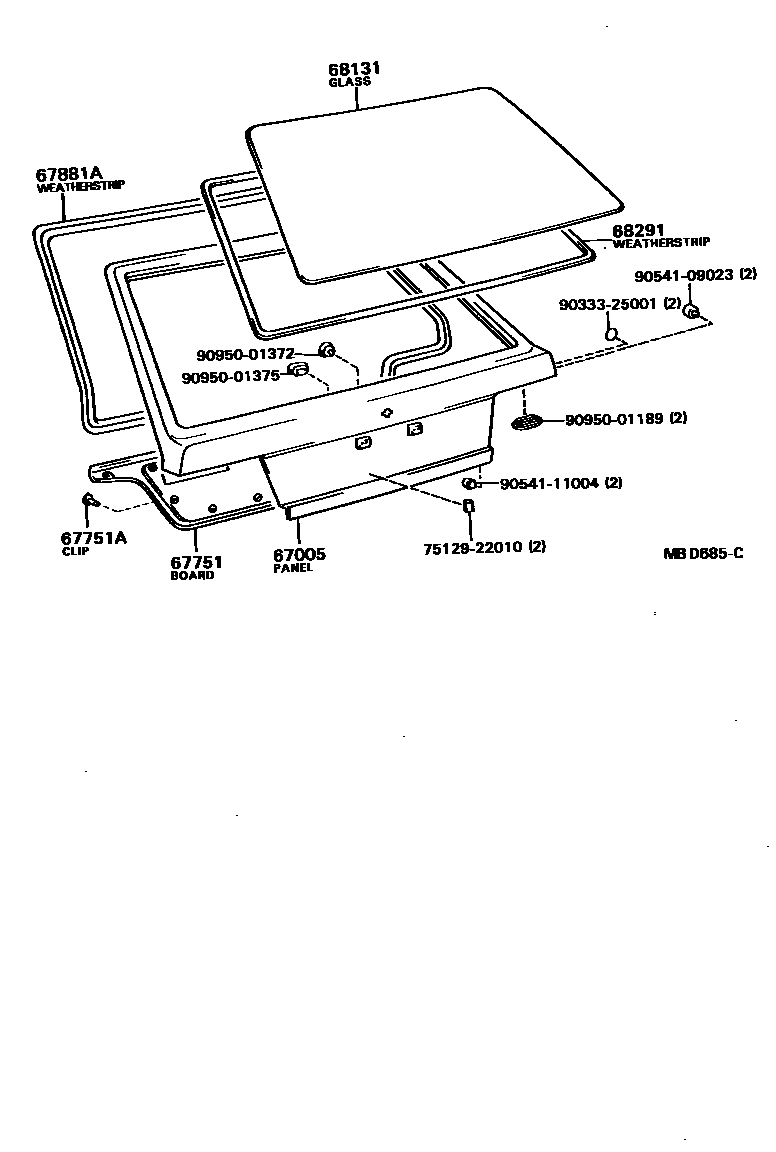

Toyota TERCEL — BACK DOOR PANEL & GLASS
67005PANEL SUB-ASSY, BACK DOOR
W/RR WIPER
W/RR WIPER
W/RR WIPER
67751BOARD, BACK DOOR TRIM
DARK WINE,DARK WINE,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
DARK WINE,DARK WINE,TRIM3#
BLACK,BLACK,TRIM2#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
BEIGE,BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
BLACK,BLACK,TRIM2#
BEIGE,DARK BEIGE,TRIM4#
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*TT,T=3.5
*TEM,T=3.5
*EHT,T=3.5
*EHTT,T=3.5
*EHT,T=3.5,COLD SPEC
*EHTT,T=3.5,COLD SPEC
*TT,T=3.5,*TT,T=3.5
*EHTT,T=3.5,*EHTT,T=3.5
*EHTT,T=3.5,*EHTT,T=3.5,COLD SPEC
68291WEATHERSTRIP, BACK DOOR GLASS
7512922010CUSHION, REAR LICENSE PLATE
main75129-22010
9033325001
main90333-25001
9054109023
main90541-09023
9054111004
main90541-11004
9095001189
main90950-01189
9095001372
main90950-01372
9095001375
main90950-01375
13 parts on this diagram · 2 diagrams in section
BACK DOOR PANEL & GLASS for Toyota TERCEL
This section contains 21 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota TERCEL. Key components include: PANEL SUB-ASSY, BACK DOOR, BOARD, BACK DOOR TRIM, CLIP(FOR BACK DOOR TRIM BOARD), RETAINER(FOR BACK DOOR TRIM BOARD), COVER, BACK DOOR.
