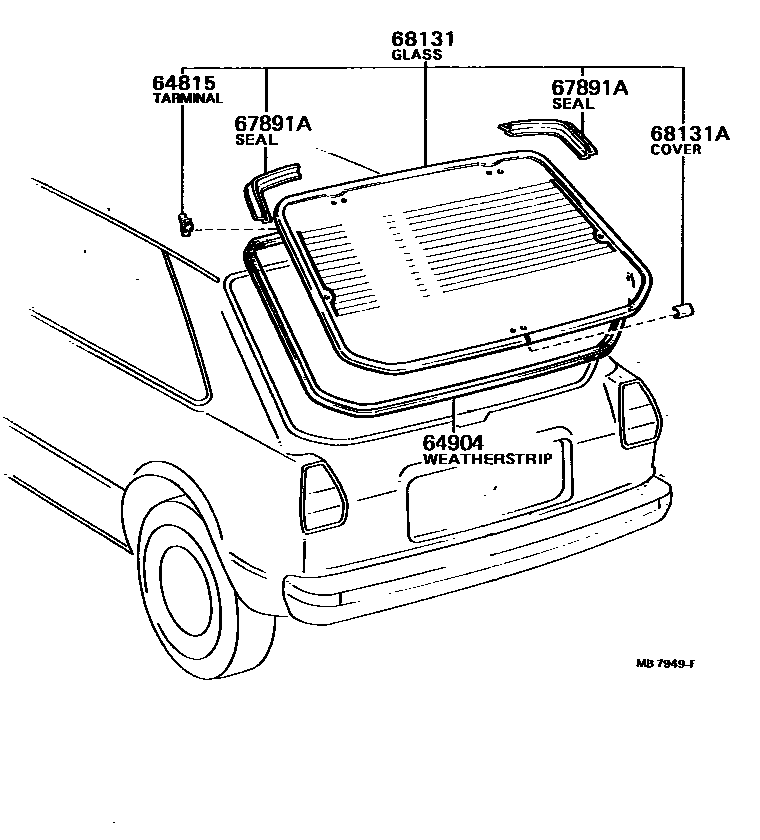

Toyota TERCEL — BACK DOOR PANEL & GLASS
64815TERMINAL, BACK WINDOW GLASS
W/*DEF
64904WEATHERSTRIP SUB-ASSY, BACK DOOR
67891ASEAL, BACK DOOR
68131GLASS, BACK DOOR
*EHTT,T=5.0
*TT,T=5.0
*EHTT,T=5.0,BLACK MOULDING
*TT,T=5.0,BLACK MOULDING
*EHT,T=5.0,*DEF=180W
*EHTT,T=5.0,*DEF=180W
*EHTT,T=5.0,*DEF=180W,BLACK
*TEM,T=5.0
*EHT,T=5.0,*DEF=100W
68131ACOVER, BACK DOOR MOULDING JOINT
5 parts on this diagram · 1 diagram in section
BACK DOOR PANEL & GLASS for Toyota TERCEL
This section contains 5 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota TERCEL. Key components include: TERMINAL, BACK WINDOW GLASS, WEATHERSTRIP SUB-ASSY, BACK DOOR, SEAL, BACK DOOR, GLASS, BACK DOOR, COVER, BACK DOOR MOULDING JOINT.
