E
EPC Data

Toyota TERCEL — ARMREST & VISOR

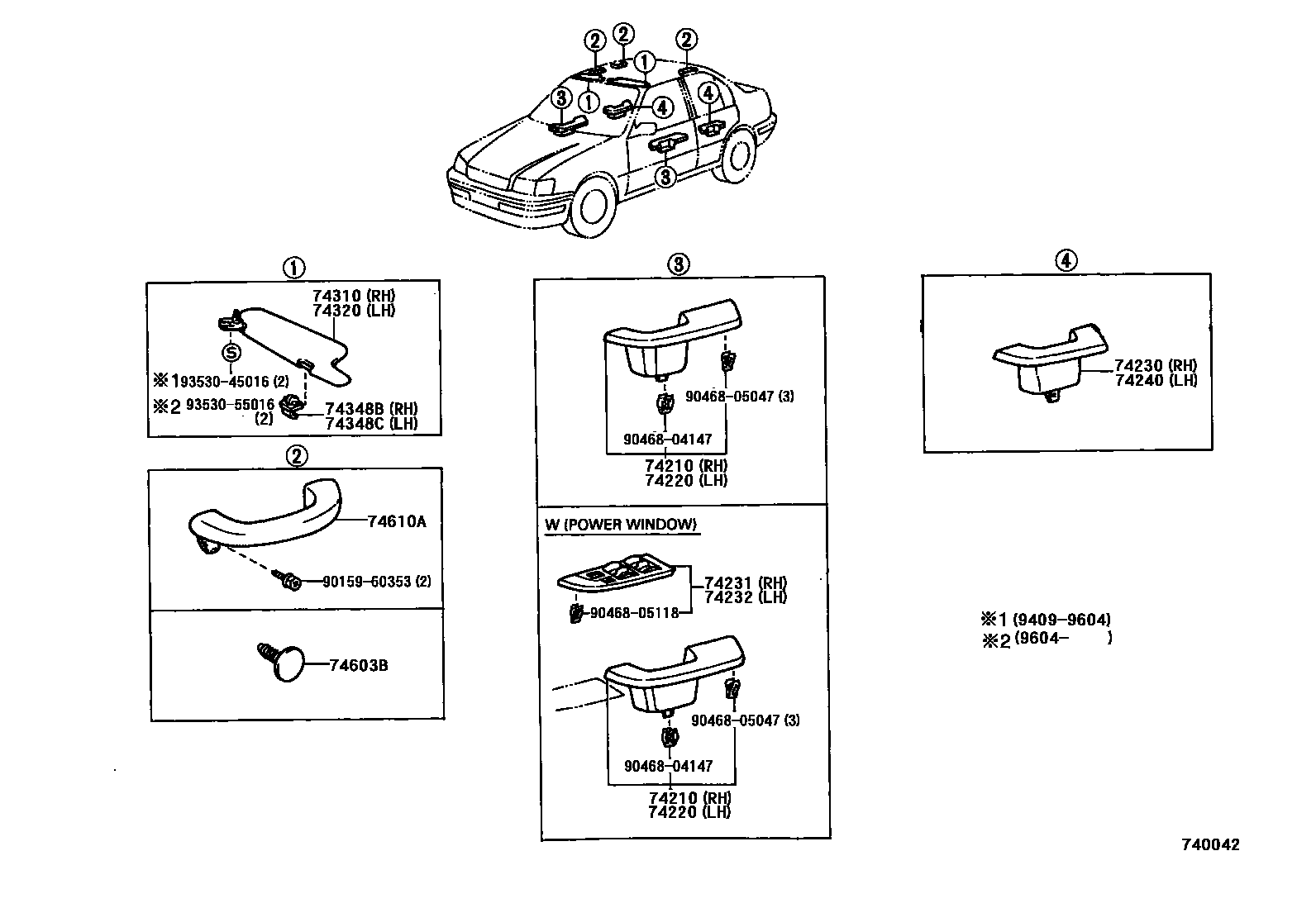

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-16110-E0i199409-199501
OAK,TRIM4#
main74210-16111-B1i199608
SHADOW GRAY,TRIM1#
main74210-16111-E0i199501
OAK,TRIM4#
main74210-16120-B1i199608
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main74210-16120-E0i199409-199509
W(POWER WINDOW),OAK,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74220-16090-E0i199409-199501
OAK,TRIM4#
main74220-16091-B1i199608
SHADOW GRAY,TRIM1#
main74220-16091-E0i199501
OAK,TRIM4#
main74220-16100-B1i199608
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main74220-16100-E0i199409-199509
W(POWER WINDOW),OAK,TRIM4#
74230ARMREST ASSY, REAR, RH
main74250-16060-B1i199608
SHADOW GRAY,TRIM1#
main74250-16060-E0i199409
OAK,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-10032-B0i199712
SHADOW GRAY,TRIM1#
main74231-10032-C0i199409-199509
BLACK,TRIM1#,4#
main74231-10032-E0i199712
OAK,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-16020-B1i199712
SHADOW GRAY,TRIM1#
main74232-16020-C0i199509-199712
BLACK,TRIM1#,4#
main74232-16020-E0i199712
OAK,TRIM4#
74240ARMREST ASSY, REAR, LH
main74250-16060-B1i199608
SHADOW GRAY,TRIM1#
main74250-16060-E0i199409
OAK,TRIM4#
74310VISOR ASSY, RH
main74310-16610-B1i199409
LT. BLUISH GRAY,TRIM1#
main74310-16610-E0i199409
LT. BEIGE,TRIM4#
main74310-16620-B1i199409
W(*80 & VANITY MIRROR),LT. BLUISH GRAY,TRIM1#
main74310-16620-E0i199409
W(*80 & VANITY MIRROR),LT. BEIGE,TRIM4#
main74310-16820-B0i199608-199708
LT. BLUISH GRAY,TRIM1#
main74310-16820-E0i199608-199708
LT. BEIGE,TRIM4#
main74310-16821-B0i199708
LT. BLUISH GRAY,TRIM1#
main74310-16821-E0i199708
LT. BEIGE,TRIM4#
74320VISOR ASSY, LH
main74320-16410-B1i199409-199712
W(VANITY MIRROR),LT. BLUISH GRAY,TRIM1#
main74320-16410-E0i199712
W(VANITY MIRROR),LT. BEIGE,TRIM4#
main74320-16430-B1i199409
LT. BLUISH GRAY,TRIM1#
main74320-16430-E0i199409
LT. BEIGE,TRIM4#
main74320-16670-B0i199608-199708
W(*80 & VANITY MIRROR),LT. BLUISH GRAY,TRIM1#
main74320-16670-E0i199608-199708
W(*80 & VANITY MIRROR),LT. BEIGE,TRIM4#
main74320-16671-B0i199708
LT. BLUISH GRAY,TRIM1#
main74320-16671-E0i199708
LT. BEIGE,TRIM4#
main74320-16680-B0i199608-199708
LT. BLUISH GRAY,TRIM1#
main74320-16680-E0i199608-199708
LT. BEIGE,TRIM4#
main74320-16681-B0i199708
W(*80,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#
main74320-16681-E0i199708
W(*80,DRIVER SIDE),LT. BEIGE,TRIM4#
main74320-16690-B0i199712
W(*80,DRIVER SIDE & PASSENGER SIDE),LT. BLUISH GRAY,TRIM1#
main74320-16690-E0i199712
W(*80,DRIVER SIDE & PASSENGER SIDE),LT. BEIGE,TRIM4#
74348BHOLDER, VISOR, RH
main74348-16010-B0i199409
LT.BLUISH GRAY,TRIM1#
main74348-16010-E0i199409
MD.OAK,TRIM4#
74348CHOLDER, VISOR, LH
main74348-16010-B0i199409
LT.BLUISH GRAY,TRIM1#
main74348-16010-E0i199409
MD.OAK,TRIM4#
74603BCLIP (FOR ASSIST GRIP)
main90467-05021-B1×2i199409
LT.BLUISH GRAY,TRIM1#
sub90467-06177
main90467-05021-E1×2i199409
MD.OAK,TRIM4#
sub90467-06177
74610AGRIP SUB-ASSY, ASSIST
main74611-20030-B2×3i199409
LT.BLUISH GRAY,TRIM1#
sub74610-12090
main74611-20030-E1×3i199409
MD.OAK,TRIM4#
sub74610-12090
9015960353
main90159-60353
9046804147
main90468-04147
9046805047
main90468-05047
9046805118
main90468-05118
9353045016
main93530-45016
9353055016
main93530-55016

18 parts on this diagram · 1 diagram in section
