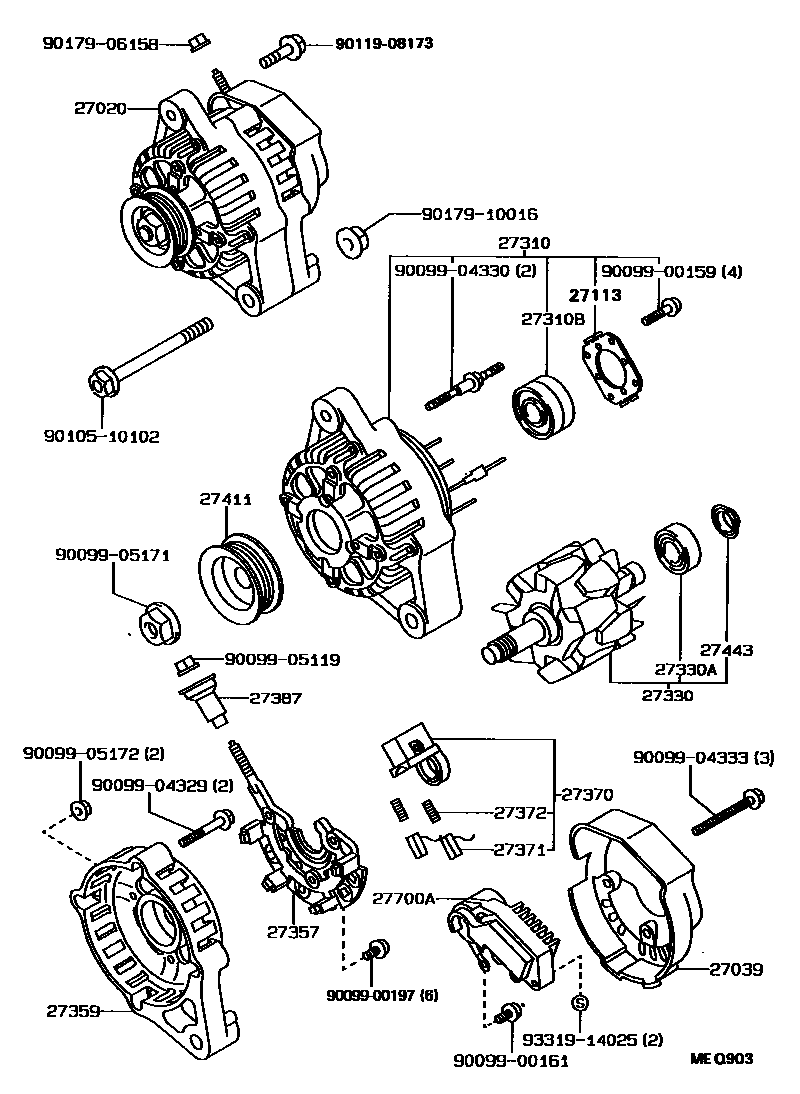

Toyota TERCEL — ALTERNATOR

27020ALTERNATOR ASSY

main27060-10100i2E..EL40199009-199208

12V 50A

main27060-11260i2E..EL40199208-199409

12V 50A

27039COVER, ALTERNATOR REAR END

main27039-11190i2E..EL40199208-199409

main27039-72150i2E..EL40199009-199208

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-72120i2E..EL40199009-199409

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-10090i2E..EL40199009-199409

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10170i2E..EL40199009-199105

main90099-10198i2E..EL40199105-199409

sub90099-10229

27330ROTOR ASSY, ALTERNATOR

main27330-72150i2E..EL40199009-199409

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10154i2E..EL40199009-199409

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-72150i2E..EL40199009-199409

27359FRAME, ALTERNATOR RECTIFIER END

main27359-72150i2E..EL40199009-199409

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i2E..EL40199009-199105

main27370-54450i2E..EL40199105-199409

sub27370-58320

27371BRUSH, ALTERNATOR

main27371-63020×2i2E..EL40199009-199105

main27371-70300×2i2E..EL40199105-199409

27372SPRING, ALTERNATOR BRUSH

main27372-63020×2i2E..EL40199009-199409

sub27372-87501

27387INSULATOR, TERMINAL

main27387-10080i2E..EL40199009-199409

27411PULLEY, ALTERNATOR

main27411-10051i2E..EL40199009-199409

27443COVER, ALTERNATOR BEARING

main27443-63020i2E..EL40199009-199409

27700AREGULATOR ASSY, GENERATOR

main27700-10080i2E..EL40199009-199111

sub27700-66010

main27700-11020i2E..EL40199111-199208

main27700-11060i2E..EL40199208-199409

9009900159

main90099-00159

9009900161

main90099-00161

9009900197

main90099-00197

9009904329

main90099-04329

9009904330

main90099-04330

9009904333

main90099-04333

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510102

main90105-10102

9011908173

main90119-08173

9017906158

main90179-06158

9017910016

main90179-10016

9331914025

main93319-14025

30 parts on this diagram · 1 diagram in section
