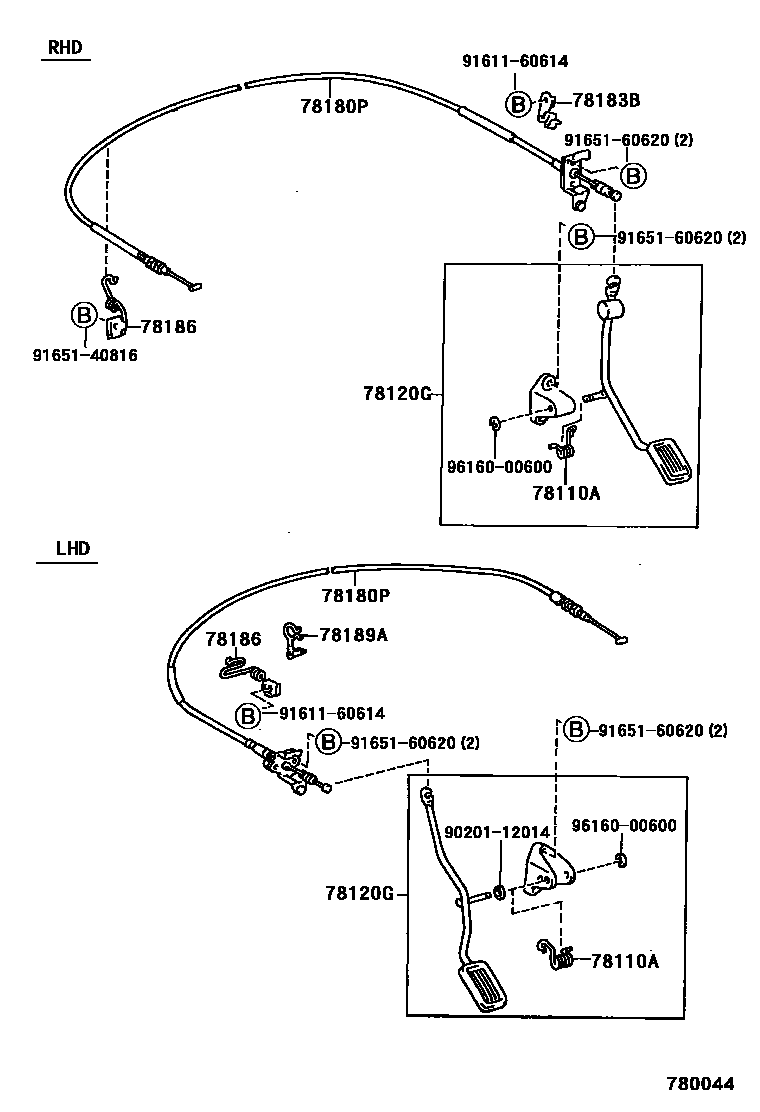

Toyota TERCEL — ACCELERATOR LINK

0001 1 0002 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-17003iEL5#..LHD199409

main90508-20114iEL50..RHD..3FC199409

main90959-03007iEL50..RHD..5F199409

78120GROD ASSY, ACCELERATOR PEDAL

main78120-16100iEL5#..LHD199409

main78120-16120iEL50..RHD..3FC199409

main78120-16130iEL50..RHD..5F199409

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-10460iEL50..RHD199409

main78180-10470iEL50..LHD199409

main78180-16270iEL53..5F199409-199509

main78180-16300iEL53..4FC199409-199509

main78180-16440iEL53199509

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-10080iEL50..RHD199409

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78183-16050iEL50..LHD199409

main78186-16110iEL53199409-199509

main78186-16160iEL50..RHD199409

main78186-16180iEL53199509

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78186-10080iEL50..LHD199409

9020112014

main90201-12014

9161160614

main91611-60614

9165140816

main91651-40816

9165160620

main91651-60620

9616000600

main96160-00600

11 parts on this diagram · 2 diagrams in section
