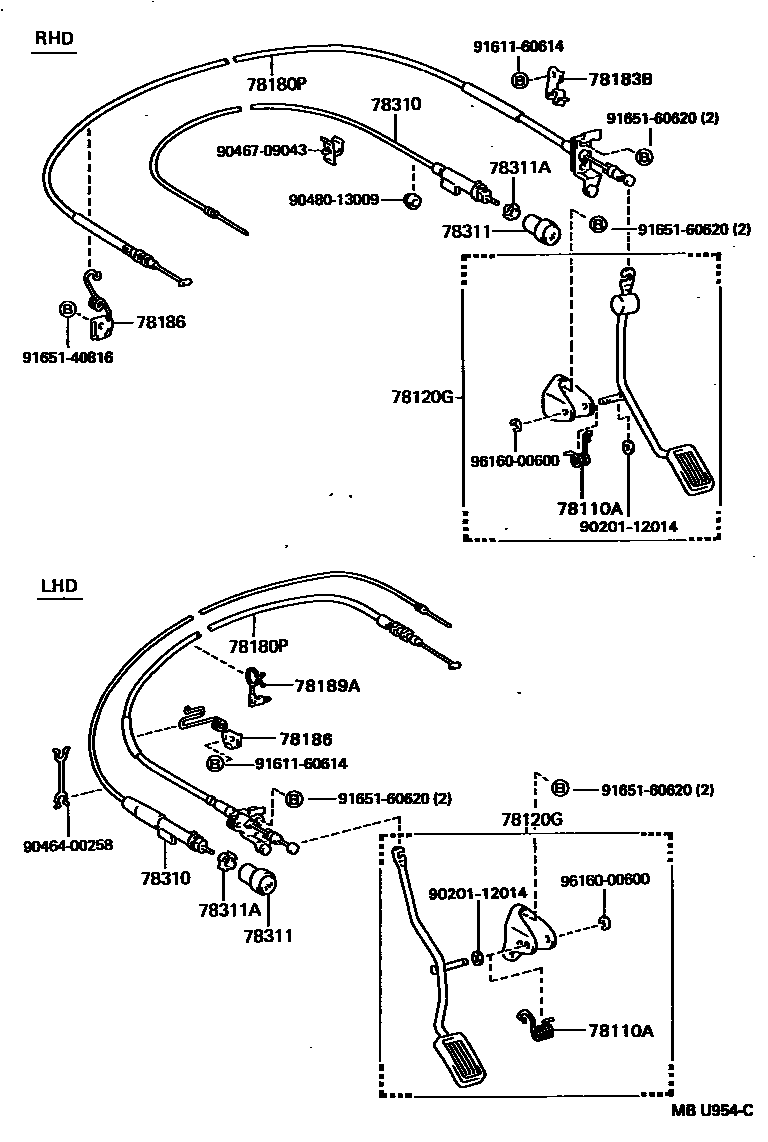

Toyota TERCEL — ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-17003iEL40..LHD199009-199409

main90508-20114iEL40..RHD..ATM199009-199409

main90508-22002iEL40..RHD..MTM199009-199106

main90959-03007iEL40..RHD..MTM199106-199409

78120GROD ASSY, ACCELERATOR PEDAL

main78120-16090iEL40..RHD..ATM199009-199409

main78120-16100iEL40..LHD199009-199409

main78120-16110iEL40..RHD..MTM199009-199409

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-10410iEL40..RHD199009-199208

main78180-10460iEL40..RHD199208-199409

main78180-10470iEL40..LHD199208-199409

main78180-10570iEL40..LHD199009-199208

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-10080iEL40..RHD199009-199409

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78183-16050iEL40..LHD199104-199409

main78186-10050iEL40..RHD199009-199104

main78186-16160iEL40..RHD199104-199409

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78186-10080iEL40..LHD199009-199409

78310CABLE ASSY, CHOKE

main84506-16020iEL40..RHD199009-199205

main84506-16030iEL40..LHD199009-199208

main84506-16040iEL40..RHD199205-199208

78311KNOB, CHOKE CONTROL CABLE

main78311-10041iEL40199009-199208

78311ANUT, CHOKE SHAFT SET

main78313-16010iEL40199009-199208

9020112014

main90201-12014

9046400258

main90464-00258

9046709043

main90467-09043

9048013009

main90480-13009

9161160614

main91611-60614

9165140816

main91651-40816

9165160620

main91651-60620

9616000600

main96160-00600

17 parts on this diagram · 1 diagram in section
