Toyota TERCEL — WINDSHIELD WASHER

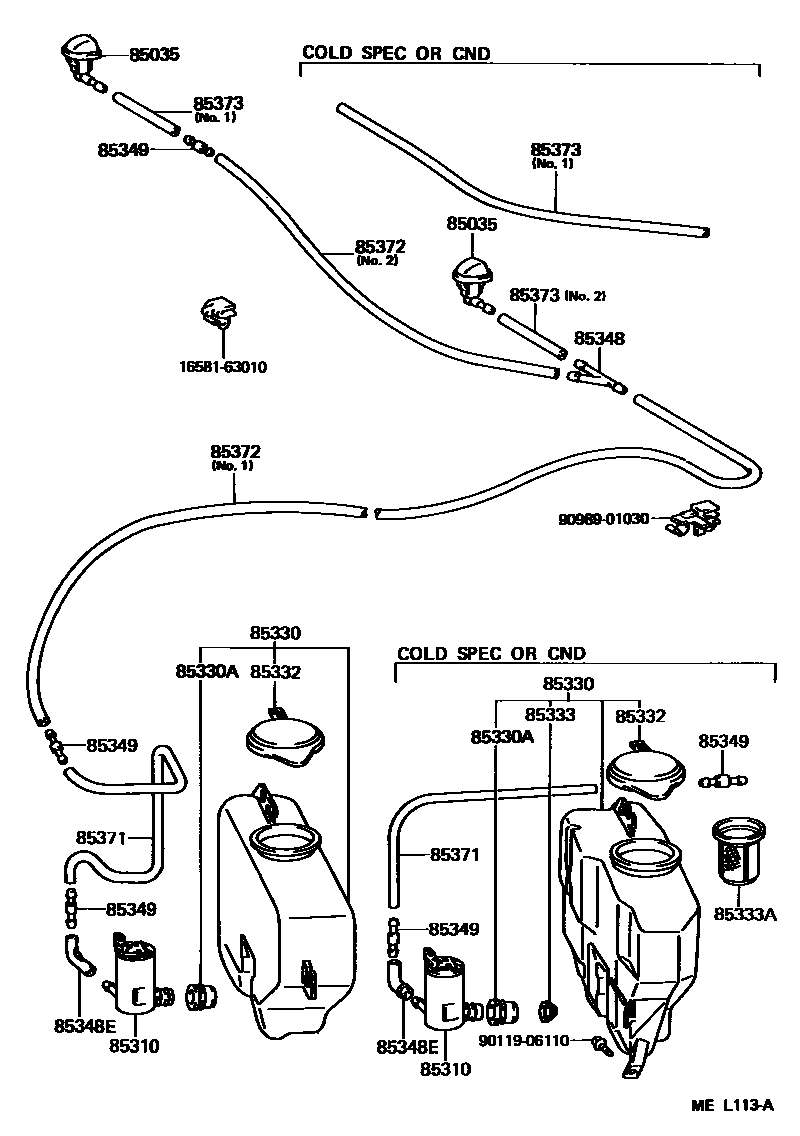

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85035-16080×2i198808-199009
sub85381-30020
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-14080i198808-199009
FR
sub85330-50020
main85310-16050i198808-199009
W(RR WIPER),FR
sub85330-60140
main85310-16080i198808-199009
W(RR WIPER) OR COLD SPEC & W(RR WIPER),RR
85330JAR ASSY, WINDSHIELD WASHER
main85331-16230i198808-198908
main85331-16250i198908-199009
main85331-16260i198808-199009
W(RR WIPER)
main85331-16270i198808-199009
COLD SPEC
main85331-16280i198808-199009
W(RR WIPER)
main85331-16330i198808-199009
COLD SPEC
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i198808-199009
W(RR WIPER)
main90099-32103i198808-199009
COLD SPEC & W(RR WIPER),RR
85332CAP, WINDSHIELD WASHER JAR
main85332-12320i198808-198908
main85332-12650i198908-199009
sub85316-34050
85333FILTER, WINDSHIELD WASHER JAR
main85333-20020i198808-199009
COLD SPEC
85333AFILTER, WINDSHIELD WASHER JAR, NO.2
main85333-20010i198808-199009
COLD SPEC
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12250i198808-199009
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85355-16192i198808-199009
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89122×2i198808-199009
COLD SPEC OR COLD SPEC & W(RR WIPER)
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080i198808-199009
L=1450
main90446-06013i198808-199009
L=1000
main90446-07001i198808-199009
L=1800
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main85343-16140i198810-199009
L=510,NO.1
main90099-33080i198808-198810
L=1450,NO.1
main90446-06013i198808-199009
L=1000,NO.2
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080i198808-199009
L=1450,NO.1,NO.2
1658163010CLAMP, HOSE(FOR WATER HOSE)
main16581-63010
9011906110
main90119-06110
9098901030
main90989-01030

16 parts on this diagram · 2 diagrams in section
