Toyota TERCEL — WINDSHIELD WASHER

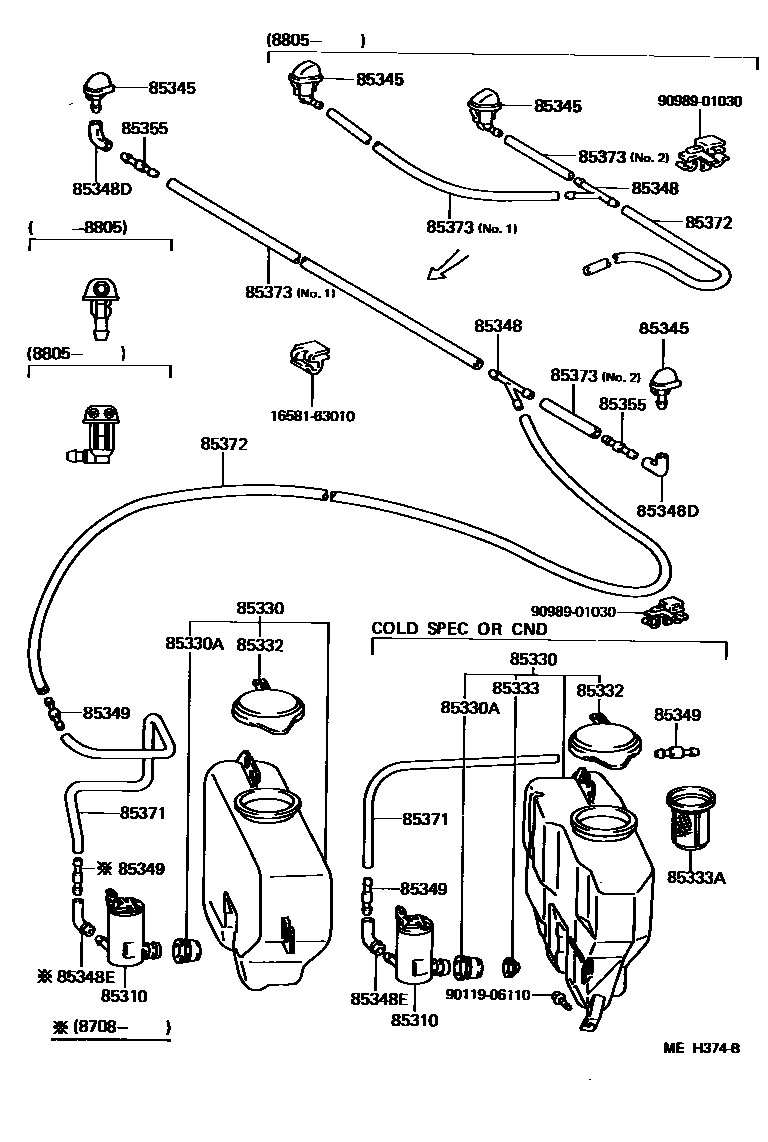

Parts diagram
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-14080i198608-198808
FR,COLD SPEC
sub85330-50020
main85310-16050i198608-198808
FR
sub85330-60140
main85310-16080i198608-198808
RR
85330JAR ASSY, WINDSHIELD WASHER
main85331-16230i198608-198808
main85331-16260i198608-198808
W/*RW
main85331-16270i198608-198808
COLD SPEC
main85331-16280i198608-198808
COLD SPEC,W/*RW
main85331-16330i198608-198808
COLD SPEC
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089×2i198608-198808
main90099-32103×2i198608-198808
COLD SPEC
85332CAP, WINDSHIELD WASHER JAR
main85332-12320i198608-198808
85333FILTER, WINDSHIELD WASHER JAR
main85333-20020i198608-198808
COLD SPEC
85333AFILTER, WINDSHIELD WASHER JAR, NO.2
main85333-20010i198608-198808
COLD SPEC
85345NOZZLE, WINDSHIELD WASHER
main85035-16060×2i198608-198805
main85035-16080×2i198805-198808
sub85381-30020
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12250i198608-198808
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-14481×2i198608-198705
COLD SPEC
main85355-20070×2i198608-198705
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85355-14481i198708-198808
main85355-16192i198608-198808
COLD SPEC
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89122×2i198608-198808
85355VALVE, WINDSHIELD WASHER HOSE
main85031-12250×2i198608-198805
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33080i198608-198808
L=1450(*H,L=310)
main90446-06013i198608-198808
L=1000(*H,L=430)
main90446-07001i198608-198808
L=1000(*H,L=350),W/*RW
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33080i198608-198805
L=1000(*H,L=675),COLD SPEC
main90998-91003i198608-198805
*H,L=685
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080i198608-198808
L=1450(*H,L=60),NO.2
main90099-33299i198805-198808
L=1000(*H,L=570),COLD SPEC,NO.1
1658163010CLAMP, HOSE(FOR WATER HOSE)
main16581-63010
9011906110
main90119-06110
9098901030
main90989-01030
