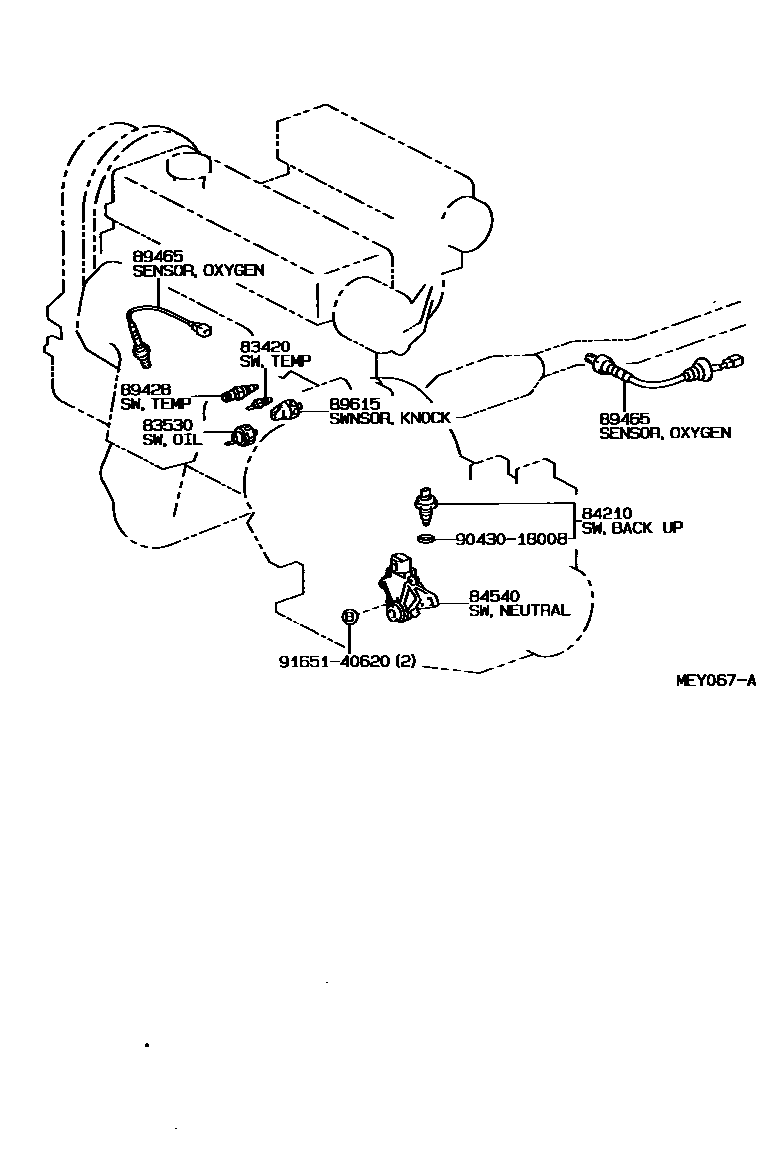

Toyota TERCEL — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1W/O(AIR BAG) 0006 1W(AIR BAG) 0007 1W(AIR BAG) 0008 1 0009 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16050iEL53199409-199411

main83420-20040iEL53199411-199705

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iEL53199409-199411

main83530-28020iEL53199803

main83530-30090iEL53199411-199803

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL53..MTM199409

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16050iEL53..ATM199409

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEL53199409

89465SENSOR, OXYGEN

main89465-16050iEL53199409-199608

EXHAUST MANIFOLD

main89465-16060iEL53199409-199608

EXHAUST PIPE

main89465-16110iEL53199608

EXHAUST MANIFOLD

main89465-16120iEL53199608

EXHAUST PIPE

89615SENSOR, KNOCK CONTROL

main89615-22030iEL53199409

MATSUSHITA

main89615-22040iEL53199409

NIPPONDENSO

9043018008

main90430-18008

9165140620

main91651-40620

9 parts on this diagram · 9 diagrams in section
