Toyota TERCEL — SIDE MEMBER

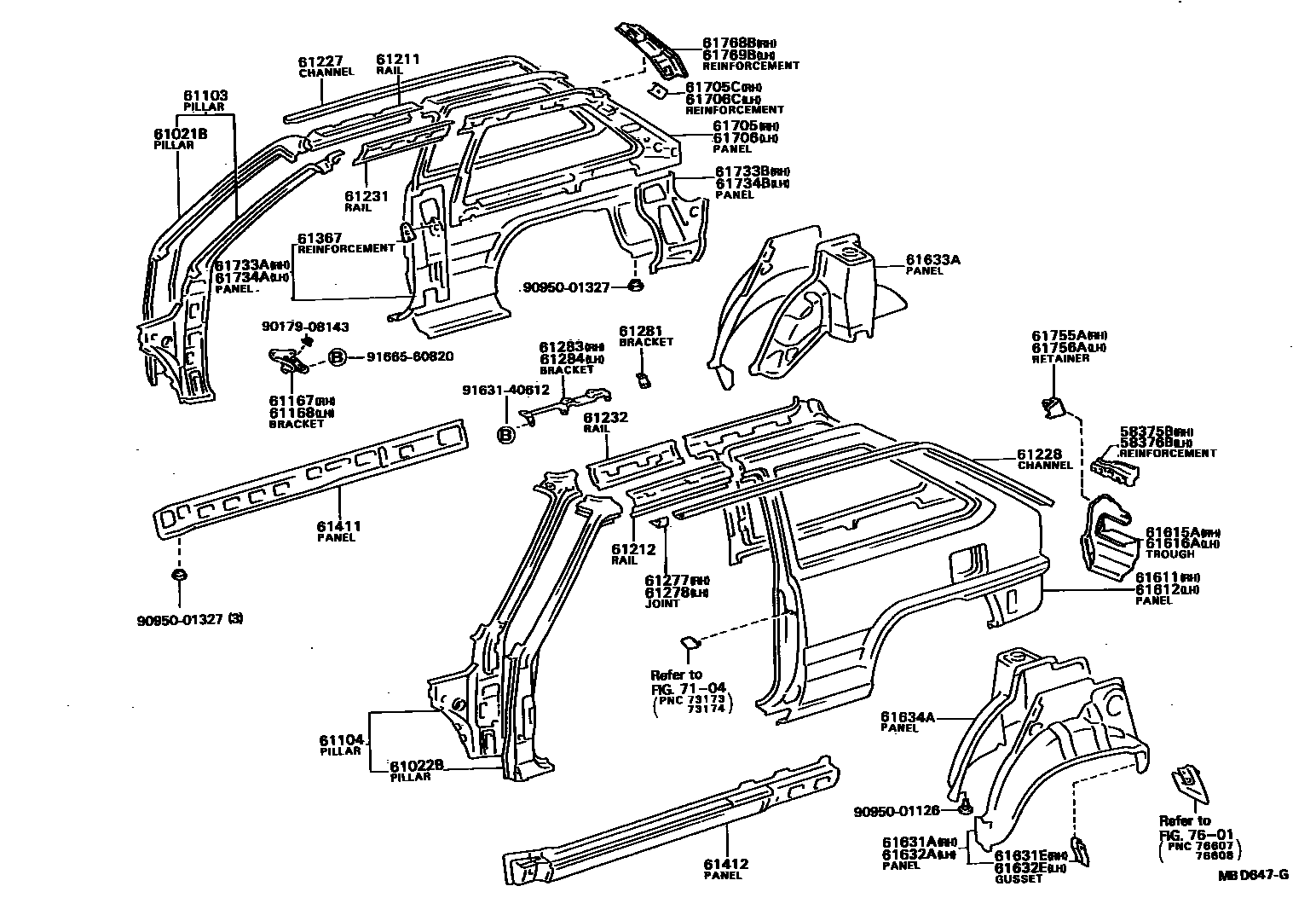

Parts diagram

58375BREINFORCEMENT, BODY LOWER BACK PANEL, RH

main58375-16010i198205-198408

58376BREINFORCEMENT, BODY LOWER BACK PANEL, LH

main58376-16010i198205-198408

61021BPILLAR SUB-ASSY, FRONT BODY, UPPER RH

main61021-16901i198205-198408

61022BPILLAR SUB-ASSY, FRONT BODY, UPPER LH

main61022-16901i198205-198408

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-16050i198205-198801

main61021-16070i198205-198801

main61021-16090i198208-198801

W/SUN ROOF

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-16070i198205-198801

main61022-16090i198205-198801

main61022-16110i198208-198611

W/SUN ROOF

main61022-16130i198208-198801

W/SUN ROOF

main61022-16170i198611-198801

W/SUN ROOF

61167BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH

main61165-16020i198205-198801

61168BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-16020i198205-198801

61211RAIL, ROOF SIDE, OUTER RH

main61211-16030i198205-198408

main61211-16050i198205-198408

main61211-16070i198208-198801

61212RAIL, ROOF SIDE, OUTER LH

main61212-16030i198205-198408

main61212-16050i198205-198408

main61212-16070i198208-198801

61227CHANNEL, ROOF DRIP SIDE, REAR RH

main61267-16030i198205-198408

main61267-16040i198205-198408

main61267-16050i198208-198801

61228CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-16030i198205-198408

main61268-16040i198205-198408

main61268-16050i198208-198801

61231RAIL, ROOF SIDE, INNER RH

main61231-16050i198205-198408

main61231-16070i198205-198408

main61231-16090i198208-198801

61232RAIL, ROOF SIDE, INNER LH

main61232-16050i198205-198408

main61232-16070i198205-198408

main61232-16090i198208-198801

61277JOINT, ROOF DRIP CHANNEL, FRONT RH

main61277-16020i198205-198408

61278JOINT, ROOF DRIP CHANNEL, FRONT LH

main61277-16020i198205-198408

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-16010i198302-198304

EUROPE CAMPAIGN

main61281-16010i198205-198408

main61281-16020i198208-198801

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main61283-16010i198302-198304

EUROPE CAMPAIGN

main61283-16010i198403-198407

GERMAN/U.K.SPECIAL SPEC

main61283-16010i198205-198408

main61283-16020i198208-198801

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main61284-16010i198302-198304

EUROPE CAMPAIGN

main61284-16010i198403-198407

GERMAN/U.K.SPECIAL SPEC

main61284-16010i198205-198408

main61284-16020i198208-198801

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-14010i198205-198408

61411PANEL, ROCKER, OUTER RH

main61401-16090i198205-198408

main61401-16100i198205-198801

61412PANEL, ROCKER, OUTER LH

main61402-16090i198205-198408

main61402-16100i198205-198801

61611PANEL, QUARTER, RH

main61601-16902i198205-198405

main61601-16903i198205-198405

main61601-16907i198605-198801

W/BACK DOOR OPENER

main61601-16907i198506-198605

NEW ZEALAND SPEC

main61601-16907i198308-198605

main61601-16909i198208-198801

main61601-16911i198405-198408

main61601-16912i198405-198408

61612PANEL, QUARTER, LH

main61602-16903i198205-198405

main61602-16905i198205-198405

main61602-16912i198208-198801

main61602-16917i198405-198408

main61602-16919i198405-198408

61615ATROUGH, BACK DOOR OPENING, RH

main61621-16030i198205-198408

61616ATROUGH, BACK DOOR OPENING, LH

main61622-16030i198205-198408

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-16140i198205-198408

main61605-16150i198205-198408

main61605-16160i198208-198801

main61605-16170i198506-198801

NEW ZEALAND SPEC

main61605-16170i198208-198801

61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-12050i198208-198305

main61645-12080i198305-198801

main61645-16010i198205-198408

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61606-16160i198205-198408

main61606-16170i198205-198408

main61606-16180i198208-198801

main61606-16190i198208-198801

main61606-16190i198506-198801

NEW ZEALAND SPEC

61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-16020i198205-198408

main61646-16030i198208-198801

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-16090i198208-198604

main61607-16110i198205-198408

main61607-16150i198604-198801

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-16120i198208-198604

main61608-16140i198205-198408

main61608-16170i198604-198801

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-16310i198208-198801

main61705-16360i198308-198801

main61705-16360i198506-198801

NEW ZEALAND SPEC

main61705-16908i198205-198408

main61705-16909i198205-198408

61705CREINFORCEMENT, SEAT BELT ANCHORAGE, REAR RH

main61665-14010i198205-198408

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-16310i198208-198801

main61706-16360i198308-198801

main61706-16360i198506-198801

NEW ZEALAND SPEC

main61706-16908i198205-198408

main61706-16909i198205-198408

61706CREINFORCEMENT, SEAT BELT ANCHORAGE, REAR LH

main61665-14010i198205-198408

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-16900i198205-198408

61733BPANEL, ROOF SIDE, INNER REAR RH

main61735-16010i198205-198408

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-16900i198205-198408

61734BPANEL, ROOF SIDE, INNER REAR LH

main61736-16010i198205-198408

61755ARETAINER, DECK SIDE TRIM, UPPER RH

main61755-16020i198205-198408

61756ARETAINER, DECK SIDE TRIM, UPPER LH

main61755-16020i198205-198408

61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH

main61768-16010i198205-198408

main61768-16020i198205-198408

61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH

main61769-16010i198205-198408

main61769-16020i198205-198408

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9017908143

main90179-08143

9095001126

main90950-01126

9095001327

main90950-01327

9163140612

main91631-40612

9166560820

main91665-60820

51 parts on this diagram · 3 diagrams in section

SIDE MEMBER for Toyota TERCEL

This section contains 73 genuine Toyota parts for the SIDE MEMBER system of the Toyota TERCEL. Key components include: REINFORCEMENT, BODY LOWER BACK PANEL, RH, REINFORCEMENT, BODY LOWER BACK PANEL, LH, PROTECTOR, QUARTER PANEL, RH, PROTECTOR, QUARTER PANEL, LH, PILLAR SUB-ASSY, FRONT BODY, UPPER RH.
