Toyota TERCEL — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14040-B0i199409-199508

BLUISH GRAY,TRIM1#

main33504-14040-E0i199512-199602

BLACK HAWK,OAK,TRIM4

main33504-14040-P0i199508-199608

SHADOW GRAY,TRIM1#

main33504-24010-B1i199508

DARK SMOKE GRAY,TRIM1#

main33504-24010-B4i199409-199508

BLUISH GRAY,TRIM1#

main33504-24010-E3i199409-199712

OAK,TRIM4#

main33504-24010-E8i199712

SANDAL WOOD,TRIM4#

main33542-16060-B0i199409-199508

BLUISH GRAY,TRIM1#

main33542-16060-B1i199508

SHADOW GRAY,TRIM1#

main33542-16060-E0i199512-199602

BLACK HAWK,OAK,TRIM4

main33542-16060-E1i199712

SANDAL WOOD,TRIM4#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-16140i199409-199608

main33530-16150i199608

9163160828

main91631-60828

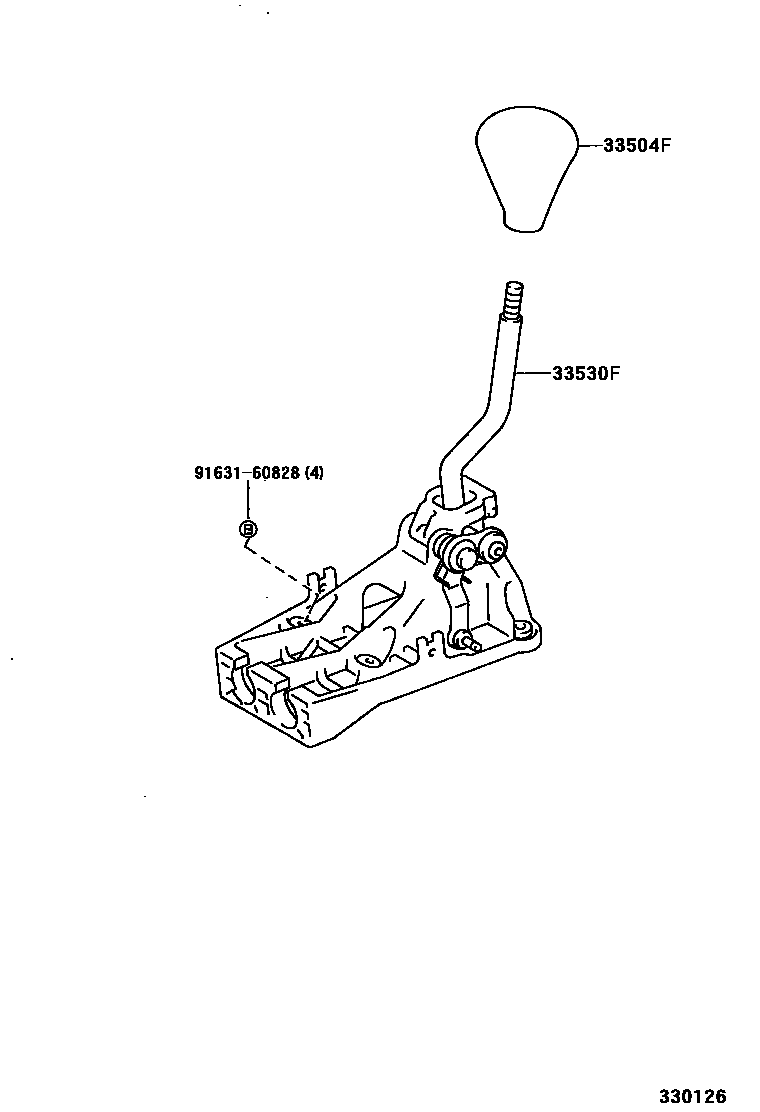

3 parts on this diagram · 5 diagrams in section

SHIFT LEVER & RETAINER for Toyota TERCEL

This section contains 54 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota TERCEL. Key components include: BRACKET SUB-ASSY, SHIFT LOCK SOLENOID, BUSH (FOR SHIFT & SELECT LEVER), SCREW (FOR SHIFT LEVER KNOB SETTING), KNOB SUB-ASSY, SHIFT LEVER, SPRING, COMPRESSION (FOR SHIFT LEVER KNOB).
