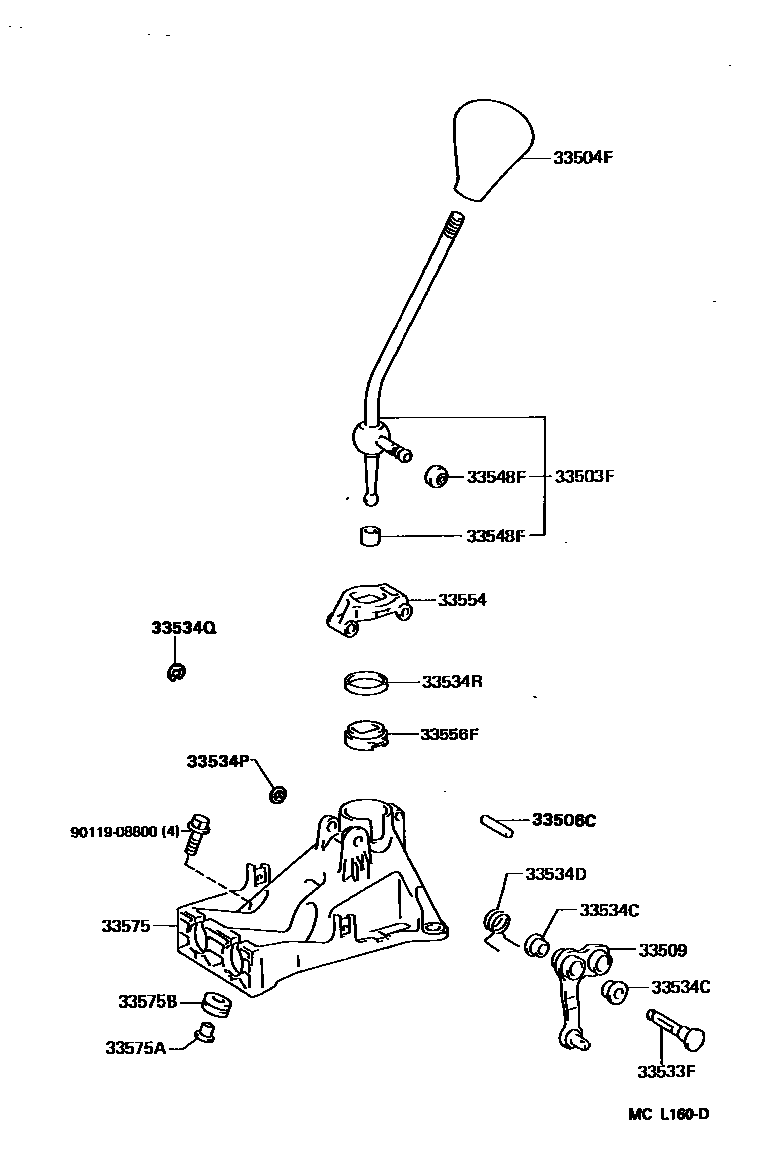

Toyota TERCEL — SHIFT LEVER & RETAINER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
TSUDA
MANNO
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
BLACK,TRIM2#
NEW BLACK,TRIM2#
GRAYISH BLUE,TRIM8#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
NEW BLACK,TRIM2#
GRAYISH BLUE,TRIM8#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
BLACK,TRIM2#
GRAYISH BLUE,TRIM8#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
33506CPIN, SHIFT LEVER RETAINER RING
L=62.5
L=40
33509CRANK SUB-ASSY, SELECTING BELL, NO.1
TSUDA
MANNO
33533FSHAFT, BELLCRANK (FOR FLOOR SHIFT)
L=70.5
L=78.5
33534CBUSH (FOR SELECTING BELLCRANK NO.1)
H=10.0
H=7
33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)
MANNO
TSUDA
33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)
MANNO
33534QRING, E (FOR SELECTING BELLCRANK NO.1)
OD=14
OD=16
33534RCUSHION (FOR SELECTING BELLCRANK NO.1)
OD=8.0
OD=40.0
33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
TSUDA
MANNO,NO.2
MANNO,NO.1
33554CAP, SHIFT LEVER
33556FSEAT, TRANSMISSION SHIFT LEVER BALL
TSUDA
MANNO
33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33575ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER)
OD=26
OD=22
33575BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER)
MANNO
TSUDA
9011908800
main90119-08800
17 parts on this diagram · 7 diagrams in section
SHIFT LEVER & RETAINER for Toyota TERCEL
This section contains 88 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota TERCEL. Key components include: LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT), BRACKET SUB-ASSY, SHIFT LOCK SOLENOID, BUSH (FOR SHIFT & SELECT LEVER), PLATE SUB-ASSY, SHIFT LEVER, LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT).
