Toyota TERCEL — MOUNTING

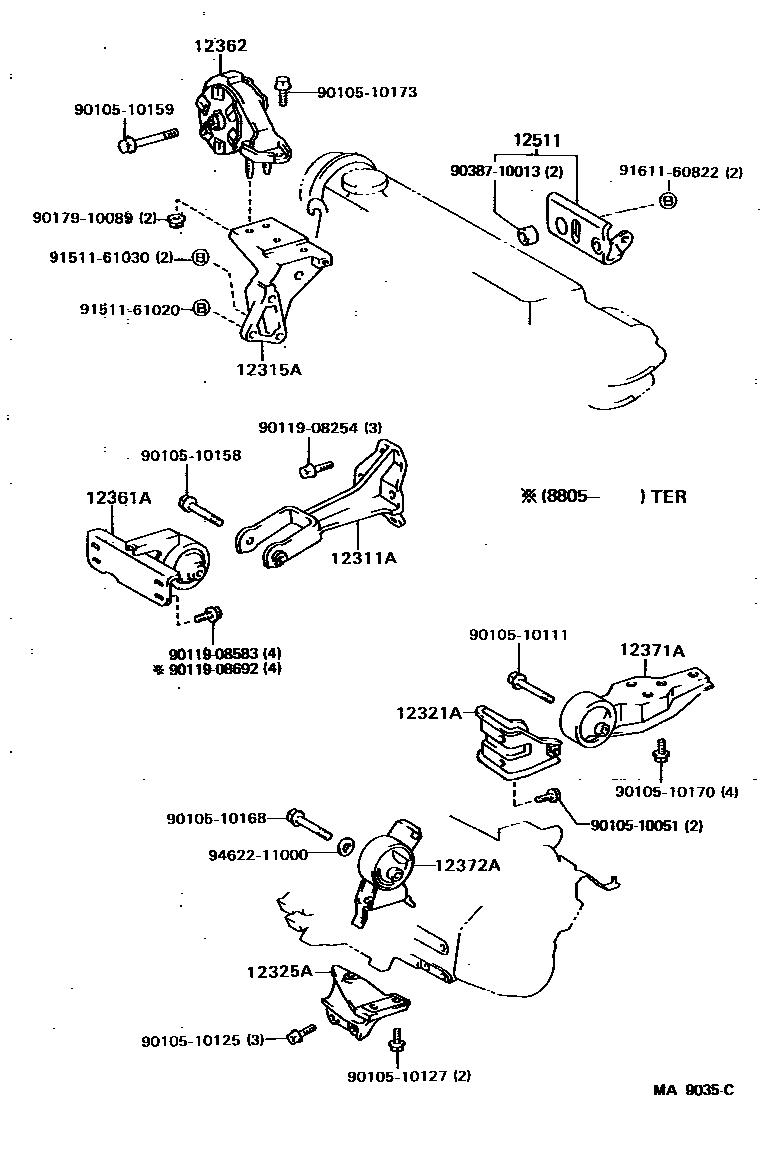

Parts diagram

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-11030i198608-198808

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-10010i198608-198808

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-11040i198608-198808

main12321-11050i198608-198808

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-11020i198608-198808

main12325-11040i198608-198808

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-11050i198608-198808

main12361-11070i198608-198805

main12361-11130i198805-198808

main12361-11150i198805-198808

12362INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12362-11060i198608-198808

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-11141i198608-198808

main12371-11160i198608-198808

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-11091i198608-198808

main12372-11120i198608-198808

12511BRACKET, ALTERNATOR, NO.1

main12511-11010i198608-198808

9010510051

main90105-10051

9010510111

main90105-10111

9010510125

main90105-10125

9010510127

main90105-10127

9010510158

main90105-10158

9010510159

main90105-10159

9010510168

main90105-10168

9010510170

main90105-10170

9010510173

main90105-10173

9011908254

main90119-08254

9011908583

main90119-08583

9011908692

main90119-08692

9017910089

main90179-10089

9038710013

main90387-10013

9151161020

main91511-61020

9151161030

main91511-61030

9161160822

main91611-60822

9462211000

main94622-11000

27 parts on this diagram · 2 diagrams in section

MOUNTING for Toyota TERCEL

This section contains 32 genuine Toyota parts for the MOUNTING system of the Toyota TERCEL. Key components include: BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR NO.2, BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE).
