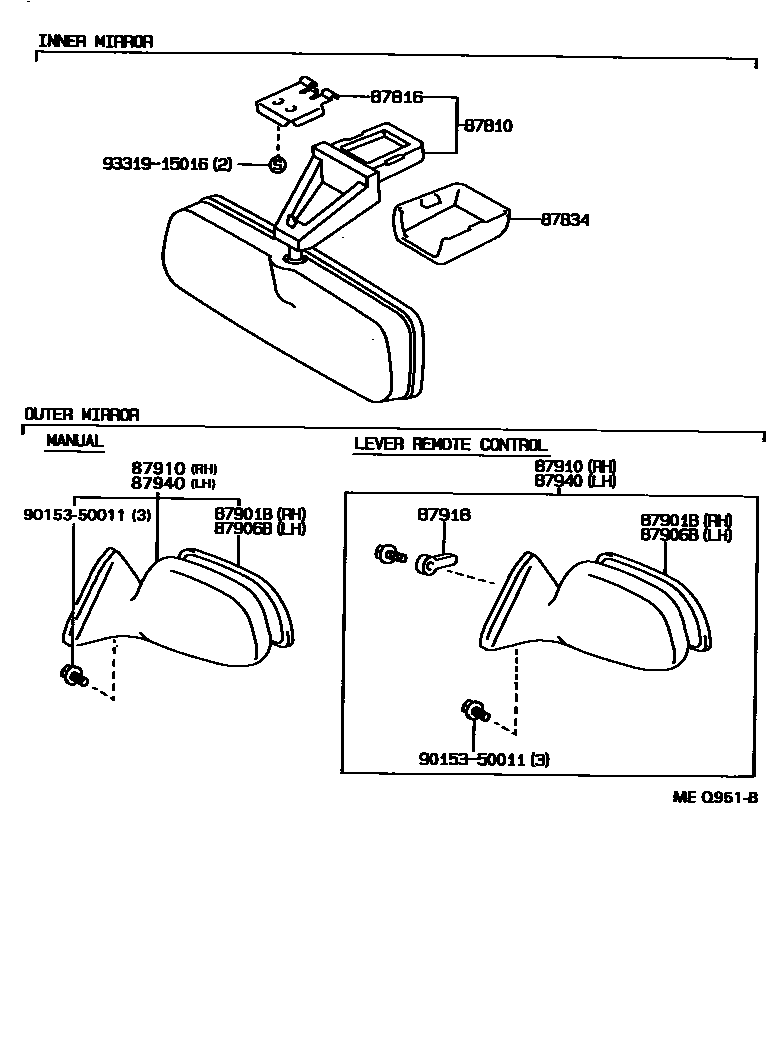

Toyota TERCEL — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-12230-13iEL42..STD199009-199208

GRAY,TRIM2#

sub87810-12250

sub87810-12280

main87810-12230-S3iEL42..STD199208-199409

LIGHT GRAY,TRIM2#

sub87810-12250

sub87810-12280

main87810-12240-13iEL42..STD199009-199106

GRAY,TRIM2#

sub87810-12260

sub87810-12270

main87810-12240-14iEL42..DLX,LE199009-199208

GRAYISH BLUE,TRIM8#

sub87810-12260

sub87810-12270

main87810-12240-S3iEL42..STD199106-199409

GRAY,TRIM2#

sub87810-12260

sub87810-12270

main87810-12240-W7iEL42..DLX,LE199208-199409

LI.BLUE,TRIM8#

sub87810-12260

sub87810-12270

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iEL42199009-199409

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-13iEL42199009-199106

GRAY,TRIM2#

main87834-12030-14iEL42..DLX,LE199009-199208

GRAYISH BLUE,TRIM8#

main87834-12030-S3iEL42199106-199409

GRAY,TRIM2#

main87834-12030-W7iEL42..DLX,LE199208-199409

LI.BLUE,TRIM8#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-16510iEL42..LE..CND;EL42..(DLX,LE)..USA199009-199208

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-16550iEL42..USA;EL42..(LE,STD)..CND;EL42..2DS..DLX..CND199009-199208

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-16510iEL42..4DS..DLX..CND199206-199208

LEVER REMOTE CONTROL TYPE

main87910-16550iEL42..2DS..DLX..USA199009-199208

LEVER REMOTE CONTROL TYPE

main87910-16560iEL42..2DS..DLX..USA199009-199208

main87910-16570iEL42..4DS..DLX199208-199409

87918KNOB, CONTROL OUTER MIRROR

main87918-16010×2iEL42..LE..CND;EL42..(DLX,LE)..USA199009-199208

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-16550iEL42..4DS..DLX199208-199409

LEVER REMOTE CONTROL TYPE

main87940-16560iEL42..4DS..DLX199009-199409

main87940-16600iEL42..2DS..DLX199208-199409

main87940-16610iEL42..2DS..DLX199208-199409

LEVER REMOTE CONTROL TYPE

main87940-16640iEL42..STD..USA;EL42..2DS..(DLX,STD)..CND199009-199208

9015350011

main90153-50011

9331915016

main93319-15016

10 parts on this diagram · 1 diagram in section
