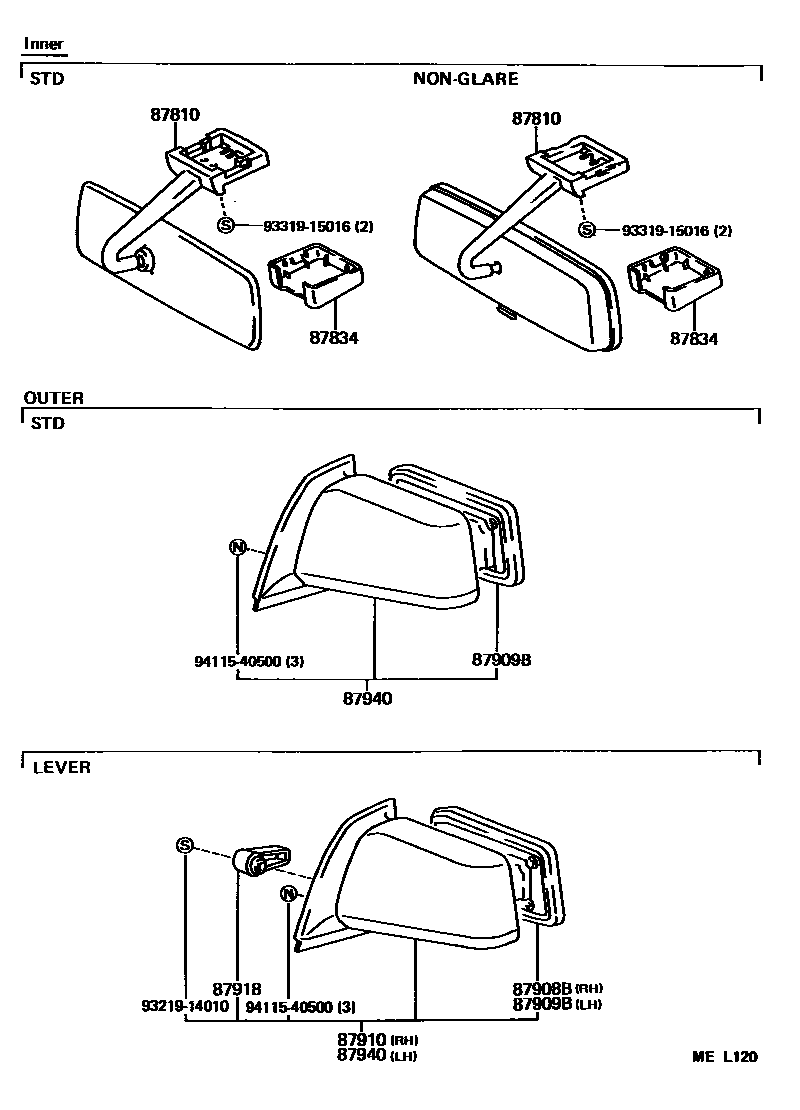

Toyota TERCEL — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-16010-01iEL31..BASE,STD198808-199009

NEW BLACK,TRIM2#

main87810-16010-04iEL31..STD198808-199009

BLUE,TRIM8#

main87810-16010-06iEL31..STD198808-199009

BROWN,TRIM4#

main87810-16020-01iEL31..DX198808-199009

NON-GLARE,NEW BLACK,TRIM2#

sub87810-22162

sub87810-19015

main87810-16020-04iEL31..DX198808-199009

NON-GLARE,BLUE,TRIM8#

sub87810-22162

sub87810-19015

main87810-16020-06iEL31..DX198808-199009

NON-GLARE,BROWN,TRIM4#

sub87810-22162

sub87810-19015

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-34iEL31..DX,STD198808-199009

DEEP BLUE,TRIM8#

main87834-20080-35iEL31..DX,STD198808-199009

BEIGE,TRIM4#

main87834-20080-53iEL31198808-199009

SHADOW GRAY,TRIM2#

87908BMIRROR SUB-ASSY, RH

main87908-16060iEL31..DX198808-198908

87909BMIRROR SUB-ASSY, LH

main87909-16050iEL31..DX198808-198908

main87909-16320iEL31198808-199009

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-16290iEL31..DX;EL31..3DS..STD198908-199009

main87910-16340iEL31..5DS..DX;EL31..5DS..STD..CND198808-199009

87918KNOB, CONTROL OUTER MIRROR

main87918-16010iEL31198808-198908

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-16320iEL31..2DS,3DS198808-199009

main87940-16330iEL31..DX..USA;EL31..3DS..STD..USA198908-199009

main87940-16380iEL31..5DS198808-199009

main87940-16390iEL31..5DS..STD..CND198808-199009

9321914010

main93219-14010

9331915016

main93319-15016

9411540500

main94115-40500

10 parts on this diagram · 1 diagram in section
