Toyota TERCEL — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-16010-01iEL31..B,STD198608-198808

BLACK,NEW BLACK,TRIM2#

main87810-16010-04iEL31..B,STD198608-198808

BLUE,BLUE,TRIM8#

main87810-16010-05iEL31..B,STD198608-198808

BEIGE,DARK BEIGE,TRIM4#

main87810-16020-01iEL31..DX198608-198808

NON-GLARE,BLACK,NEW BLACK,TRIM2#

sub87810-22162

sub87810-19015

main87810-16020-04iEL31..DX198608-198808

NON-GLARE,BLUE,BLUE,TRIM8#

sub87810-22162

sub87810-19015

main87810-16020-05iEL31..DX198608-198808

NON-GLARE,BEIGE,DARK BEIGE,TRIM4#

sub87810-22162

sub87810-19015

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-28iEL31198608-198808

IVORY,IVORY

87908BMIRROR SUB-ASSY, RH

main87908-16060iEL31..DX198608-198808

87909BMIRROR SUB-ASSY, LH

main87909-16050iEL31..DX198608-198808

LEVER TYPE

main87909-16320iEL31198608-198808

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-16290iEL31..(2DS,3DS)..DX198608-198808

main87910-16340iEL31..5DS..DX198608-198808

87918KNOB, CONTROL OUTER MIRROR

main87918-16010×2iEL31198608-198808

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-16320iEL31..2DS,3DS198608-198808

main87940-16330iEL31..2DS,3DS198608-198808

LEVER TYPE

main87940-16380iEL31..5DS198608-198808

main87940-16390iEL31..5DS198608-198808

LEVER TYPE

9321914010

main93219-14010

9331915016

main93319-15016

9411540500

main94115-40500

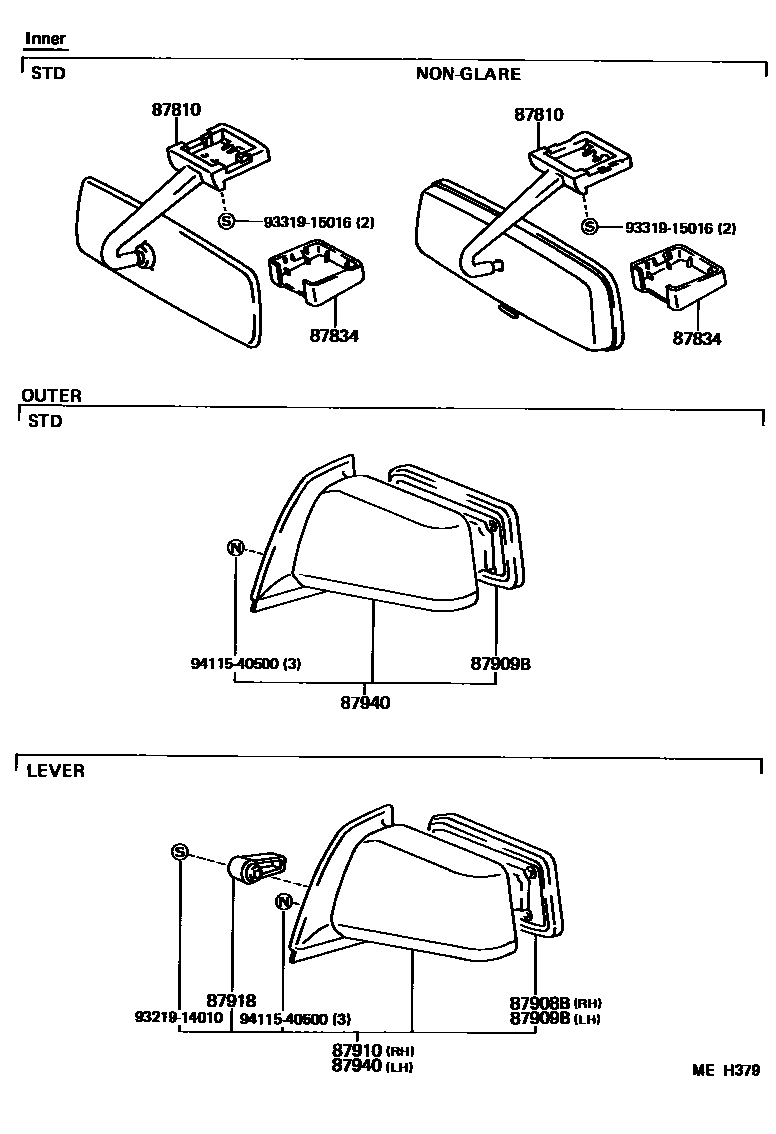

10 parts on this diagram · 1 diagram in section
