Toyota TERCEL — METER

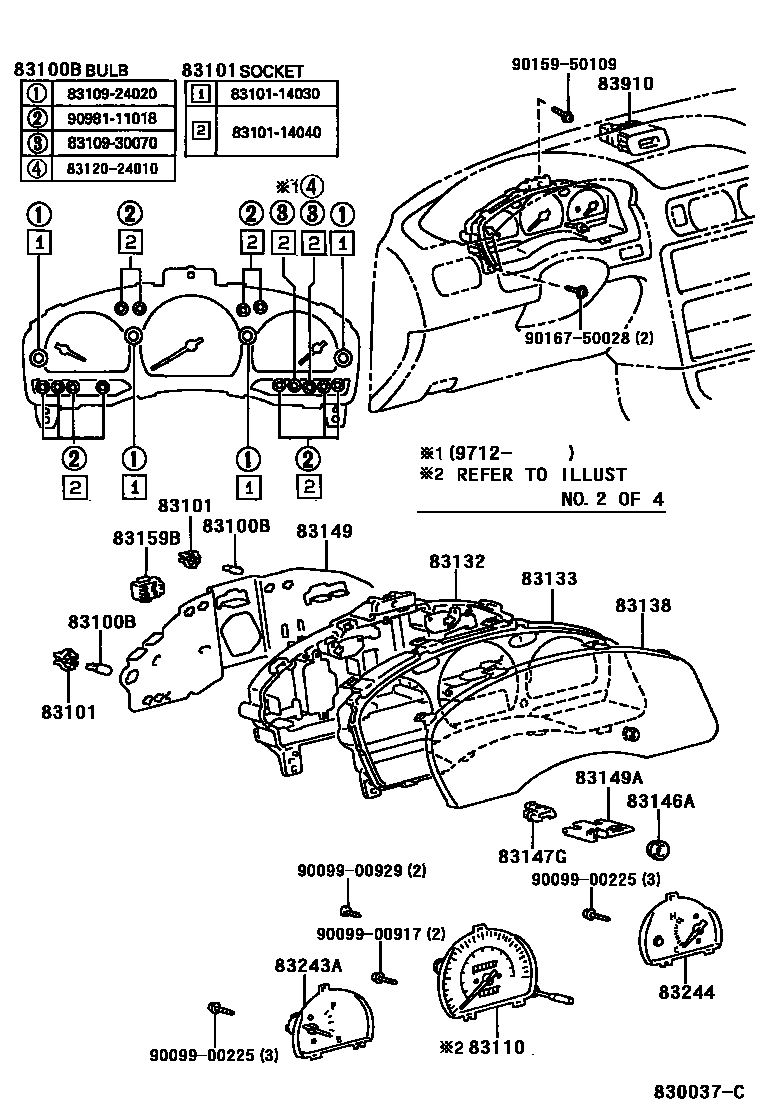

Parts diagram
83100BBULB, COMBINATION METER, NO.1
main83109-24020×4i199712
12V3.4W W(GREEN CAP),NO.1
main83109-30070×2i199409-199712
14V 2.0W,W/O SOCKET,NO.3
main83120-24010i199712
13.5V,W(SOCKET),NO.4
main90072-02001×3i199409
12V 3.4W,GREEN CAP,NO.2
main90072-02004×11i199409
14V 1.1W,NO.1
main90072-02014i199409
14V 1.4W,GREEN CAP,NO.3
main90981-11018×9i199608
12V 1.2W W/O SOCKET,PUERTORICO SPEC,NO.2
83101SOCKET SUB-ASSY, COMBINATION METER BULB
main83101-14030×4i199409
NO.1
main83101-14040×12i199409-199712
NO.2
main90072-01001×3i199409
W(TACHOMETER),NO.2
main90072-01003×11i199409
W(TACHOMETER),NO.1
main90072-01006i199409
NO.3
83110SPEEDOMETER ASSY
main83110-1G390i199409-199508
TYPE A:REFER TO ILLUSTRATION
main83110-1G391i199508-199608
TYPE B:REFER TO ILLUSTRATION
main83110-1G400i199409-199508
TYPE A:REFER TO ILLUSTRATION
main83110-1G401i199508-199706
TYPE B:REFER TO ILLUSTRATION
main83110-1G402i199706-199712
TYPE B:REFER TO ILLUSTRATION
main83110-1G410i199409-199508
TYPE A:REFER TO ILLUSTRATION
main83110-1G411i199508-199608
TYPE B:REFER TO ILLUSTRATION
main83110-1G420i199409-199508
TYPE A:REFER TO ILLUSTRATION
main83110-1G421i199508-199706
TYPE B:REFER TO ILLUSTRATION
main83110-1G422i199706-199712
TYPE B:REFER TO ILLUSTRATION
main83110-1G470i199409-199712
W(TACHOMETER);TYPE C:REFER TO ILLUSTRATION
main83220-16090i199712
TYPE B:REFER TO ILLUSTRATION
main83220-16100i199712
TYPE B:REFER TO ILLUSTRATION
main83220-16150i199712
W(TACHOMETER);TYPE C:REFER TO ILLUSTRATION
83132CASE, COMBINATION METER
main83132-1G020i199712
W(TACHOMETER)
main83132-1G060i199409-199712
W(TACHOMETER)
main83132-1S170i199409
main83132-1S190i199409
83133PLATE, COMBINATION METER, NO.1
main83133-1G020i199409
W(TACHOMETER)
main83133-1G310i199409-199608
main83133-1G330i199409-199608
sub83811-10100
main83811-10120i199608-199712
83138GLASS, SPEEDOMETER
main83138-16630i199409
main83138-16650i199409-199608
main83138-1G020i199409
W(TACHOMETER)
83146ACOVER, SPEEDMETER
main83146-30870i199409
83147GCONNECTOR, COMBINATION METER
main83147-16010i199409
83149PLATE, METER CIRCUIT
main83149-1G120i199409
W(TACHOMETER)
main83149-1G590i199409
83149APLATE, METER CIRCUIT, NO.2
main83149-1G630i199409
83159BRELAY ASSY, METER
main83159-22170i199712
83243AGAUGE SUB-ASSY, FUEL RECEIVER
main83243-1G020i199409-199712
W(TACHOMETER)
main83243-1G150i199409-199508
main83243-1G151i199508-199712
main83243-1G230i199409-199508
main83243-1G231i199508-199712
main83882-16160i199712
main83882-16350i199712
W(TACHOMETER)
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
main83244-16650i199409-199508
main83244-16651i199508-199712
main83244-16670i199409-199508
PUERTORICO SPEC
main83244-16671i199508-199712
PUERTORICO SPEC
main83883-16160i199712
main83883-16230i199712
PUERTORICO SPEC
83910CLOCK ASSY
main83910-16200-B0i199409-199608
BLUISH GRAY,TRIM1#
main83910-16200-B1i199608
GRAY,TRIM1#
main83910-16200-E0i199409
OAK,TRIM4#
9009900225
main90099-00225
9009900917
main90099-00917
9009900929
main90099-00929
9015950109
main90159-50109
9016750028
main90167-50028
