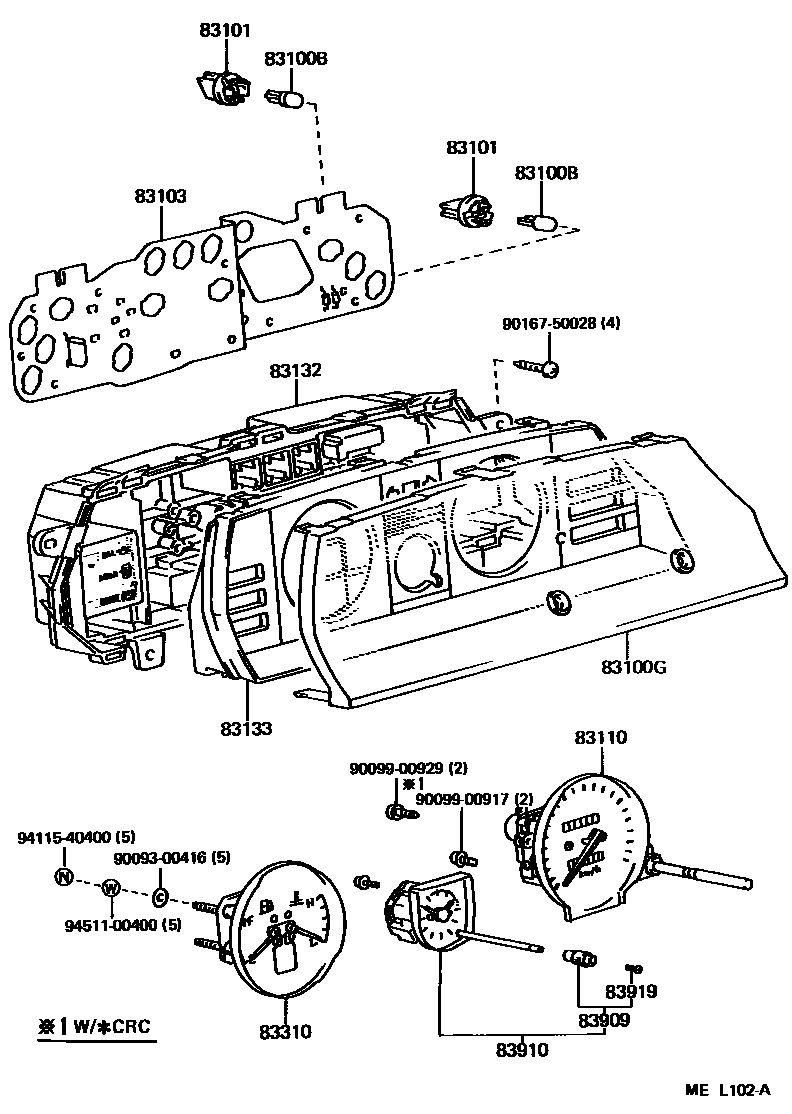

Toyota TERCEL — METER

0001 1 0002 1

83100BBULB, COMBINATION METER, NO.1

main83109-24030×4iEL31..BASE..USA198808-198812

12V3.4W W(GREEN CAP)

main99132-12034×9iEL31..5F..DX..USA198812-198908

12V 3.4W

83100GGLASS, COMBINATION METER

main83138-16490iEL31..DX,STD198808-199009

main83138-16510iEL31..DX..EFI198908-199009

W(FUEL LEVEL WARNING & CLOCK)

main83138-16530iEL31..BASE..USA198808-198812

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×13iEL31..5F..DX..USA198908-199009

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-1G670iEL31..3FC..BASE198812-199009

PUERTO RICO SPEC---EXCL/W(FUEL LEVEL WARNING & CLOCK)

main83247-1G690iEL31..3FC..DX..USA198812-198908

W(FUEL LEVEL WARNING & CLOCK)

main83247-1G710iEL31..3FC..DX..USA198812-198908

W(FUEL LEVEL WARNING)

main83247-1G730iEL31..DX..CND198808-199009

W(*CRC)

main83247-1G750iEL31..DX..CND;EL31..5DS..STD..CND198808-199009

W(*CRC & FUEL LEVEL WARNING &CLOCK)

main83247-1G770iEL31..DX..CND198808-199009

W(*CRC & FUEL LEVEL WARNING)

main83247-1G870iEL31..5F..DX..USA198908-199009

CALIFOLNIA SPEC

83110SPEEDOMETER ASSY

main83110-16290iEL31..(DX,STD)..USA..CBR198808-199009

main83110-1G030iEL31..(DX,STD)..CND198808-199009

main83110-1G070iEL31..DX..CND198808-199009

W(*CRC)

main83110-1G080iEL31..5F..DX..USA198908-199009

CALIFOLNIA SPEC

main83110-1G100iEL31..BASE..USA198808-199009

main83110-1G150iEL31..BASE..CND198808-199009

main83110-1G190iEL31..4F..USA198908-199009

CALIFOLNIA SPEC

83132CASE, COMBINATION METER

main83132-1G010iEL31..5DS..DX;EL31..BASE..CND;EL31..5DS..STD..USA;EL31..(2DS,3DS)..(DX,STD)..CBR198808-199009

main83132-1G090iEL31..3FC..DX..USA..CBR;EL31..3DS..3FC..STD..USA..CBR198908-199009

W(FUEL LEVEL WARNING)

main83132-1G190iEL31..3DS..5F..USA198908-199009

CALIFOLNIA SPEC

main83132-1G210iEL31..DX..EFI;EL31..3DS..EFI198808-199009

W(FUEL LEVEL WARNING)

83133PLATE, COMBINATION METER, NO.1

main83133-1G050iEL31..DX..EFI198908-199009

W(FUEL LEVEL WARNING & CLOCK)

main83133-1G070iEL31..DX,STD198808-199009

main83133-1G090iEL31..BASE..USA198808-198812

83310GAGE ASSY, FUEL RECEIVER

main83243-16670iEL31..BASE..USA198808-198908

CALIFOLNIA SPEC

main83243-16690iEL31..3DS..3FC..STD..USA198908-199009

W(FUEL LEVEL WARNING)

main83243-16710iEL31..5DS..DX..CND;EL31..(2DS,3DS)..CND198808-199009

main83243-16730iEL31..DX..CND198808-199009

W(FUEL LEVEL WARNING)

main83243-16810iEL31..3FC..USA..CBR198812-199009

PUERTO RICO SPEC

main83243-16830iEL31..3FC..DX..USA198812-198908

PUERTO RICO SPEC & W(FUEL LEVEL WARNING)

83909KNOB, CLOCK

main83909-14012iEL31..DX..EFI198908-199009

83910CLOCK ASSY

main83910-16120iEL31..DX..EFI198908-199009

83919SCREW, CLOCK

main83919-14012iEL31..DX..USA198808-198812

9009300416

main90093-00416

9009900917

main90099-00917

9009900929

main90099-00929

9016750028

main90167-50028

9411540400

main94115-40400

9451100400

main94511-00400

17 parts on this diagram · 2 diagrams in section
