Toyota TERCEL — INSTRUMENT PANEL & GLOVE COMPARTMENT

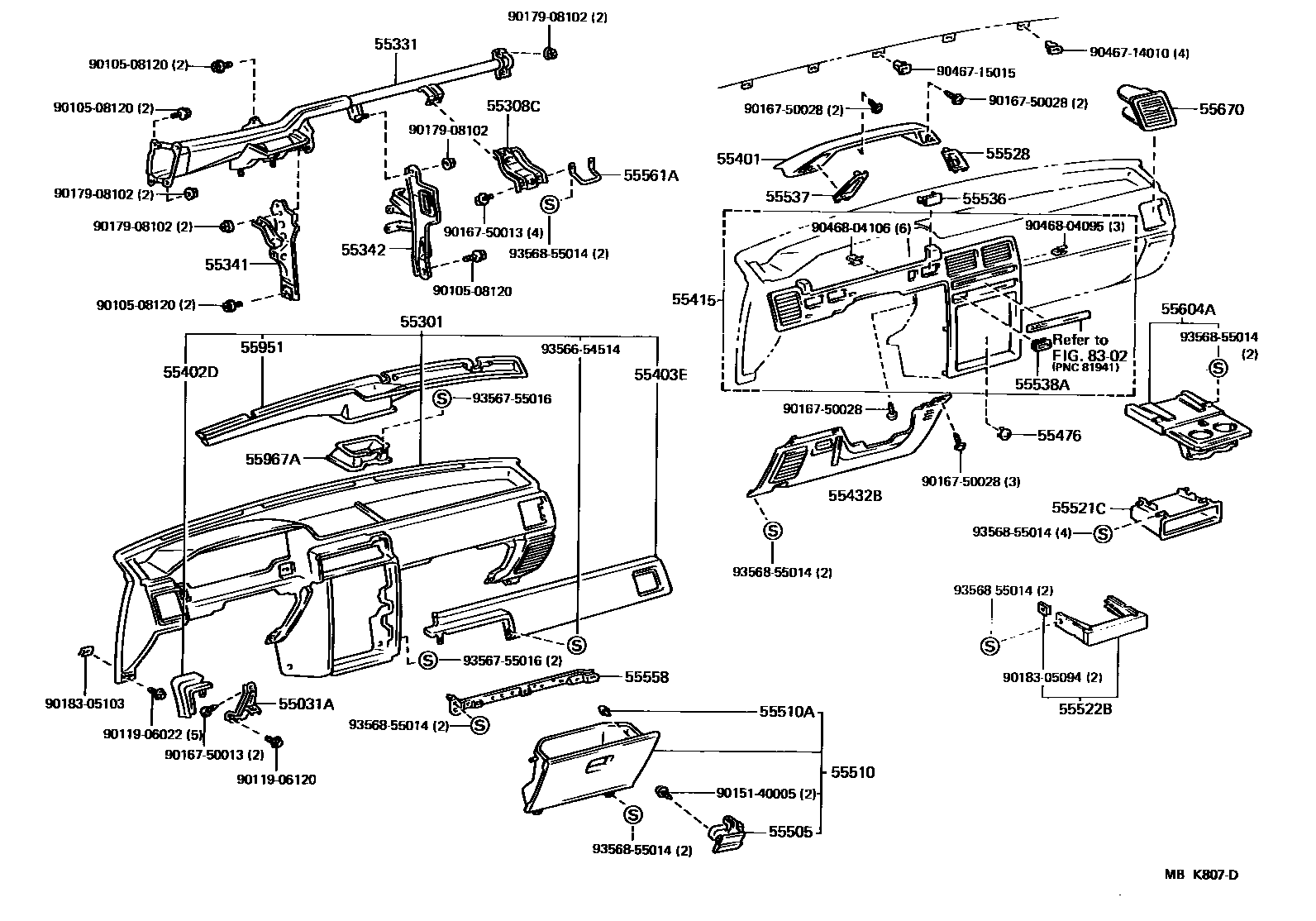

Parts diagram
55031ASTAY SUB-ASSY, INSTRUMENT PANEL, NO.1
main55031-16020i198608-198808
55301PANEL SUB-ASSY, INSTRUMENT
main55301-16020-01i198608-198808
BLACK,BLACK,TRIM2#
main55301-16020-04i198608-198808
BLUE,BLUE,TRIM8#
main55301-16020-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
main55308-16010i198608-198808
55331REINFORCEMENT, INSTRUMENT PANEL
main55330-16040i198608-198808
55341BRACE, INSTRUMENT PANEL, NO.1
main55306-16060i198608-198808
55342BRACE, INSTRUMENT PANEL, NO.2
main55307-16060i198608-198808
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
main55404-16100-01i198608-198808
BLACK,BLACK,TRIM2#
main55404-16100-04i198608-198808
BLUE,BLUE,TRIM8#
main55404-16100-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1
main55402-16020-01i198608-198808
BLACK,BLACK,TRIM2#
main55402-16020-04i198608-198808
BLUE,BLUE,TRIM8#
main55402-16020-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
55403EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2
main55403-16040-01i198608-198808
BLACK,BLACK,TRIM2#
main55403-16040-04i198608-198808
BLUE,BLUE,TRIM8#
main55403-16040-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
main55405-16070i198608-198712
main55405-16071i198712-198801
main55405-16081i198801-198808
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
main55432-16080-01i198608-198808
BLACK,BLACK,TRIM2#
main55432-16080-04i198608-198808
BLUE,BLUE,TRIM8#
main55432-16080-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main55432-16090-01i198608-198808
W/TILT STEERING,BLACK,BLACK,TRIM2#
main55432-16090-04i198608-198808
W/TILT STEERING,BLUE,BLUE,TRIM8#
main55432-16090-05i198608-198808
W/TILT STEERING,BEIGE,DARK BEIGE,TRIM4#
55476COVER, CIGARETTE LIGHTER HOLE
main55477-16050i198611-198708
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
main55560-16050-01i198608-198808
BLACK,NEW BLACK,TRIM2#
main55560-16050-04i198608-198808
BLUE,BLUE,TRIM8#
main55560-16050-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
55510DOOR ASSY, GLOVE COMPARTMENT
main55550-16070-01i198608-198808
BLACK,BLACK,TRIM2#
main55550-16070-04i198608-198808
BLUE,BLUE,TRIM8#
main55550-16070-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
main90541-03015×3i198608-198808
55521CCOVER, STEREO OPENING
main55521-16030i198608-198808
50 X 180
main55521-16040i198608-198808
100 X 180
55522BCOVER, RADIO TUNER OPENING
main55522-16030i198611-198708
DECONTENT PACKAGE
55528COVER, AUTO DRIVE OPENING
main55528-16010i198608-198808
55536COVER, REAR WINDOW WIPER SWITCH HOLE
main55539-32010-11i198608-198808
BLACK,BLACK,TRIM2#
55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE
main55537-16030i198608-198808
55538ACOVER, COOLER SWITCH HOLE
main55538-16020i198608-198808
55558REINFORCEMENT, GLOVE COMPARTMENT DOOR
main55558-16050i198608-198808
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
main55561-12040i198608-198808
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
main55604-19015i198608-198808
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
main55670-16030-01i198608-198808
BLACK,BLACK,TRIM2#
main55670-16030-04i198608-198808
BLUE,BLUE,TRIM8#
main55670-16030-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
55951NOZZLE, DEFROSTER, FRONT
main55951-16070i198608-198808
55967ANOZZLE, DEFROSTER, LOWER
main55967-16020i198608-198808
8302INDICATOR
→ Go to FIG 83-02
9010508120
main90105-08120
9011906022
main90119-06022
9011906120
main90119-06120
9015140005
main90151-40005
9016750013
main90167-50013
9016750028
main90167-50028
9017908102
main90179-08102
9018305094
main90183-05094
9018305103
main90183-05103
9046714010
main90467-14010
9046715015
main90467-15015
9046804095
main90468-04095
9046804106
main90468-04106
9356654514
main93566-54514
9356755016
main93567-55016
9356855014
main93568-55014

44 parts on this diagram · 1 diagram in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota TERCEL

This section contains 44 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota TERCEL. Key components include: STAY SUB-ASSY, INSTRUMENT PANEL, NO.1, PANEL SUB-ASSY, INSTRUMENT, BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER, REINFORCEMENT, INSTRUMENT PANEL, BRACE, INSTRUMENT PANEL, NO.1.
