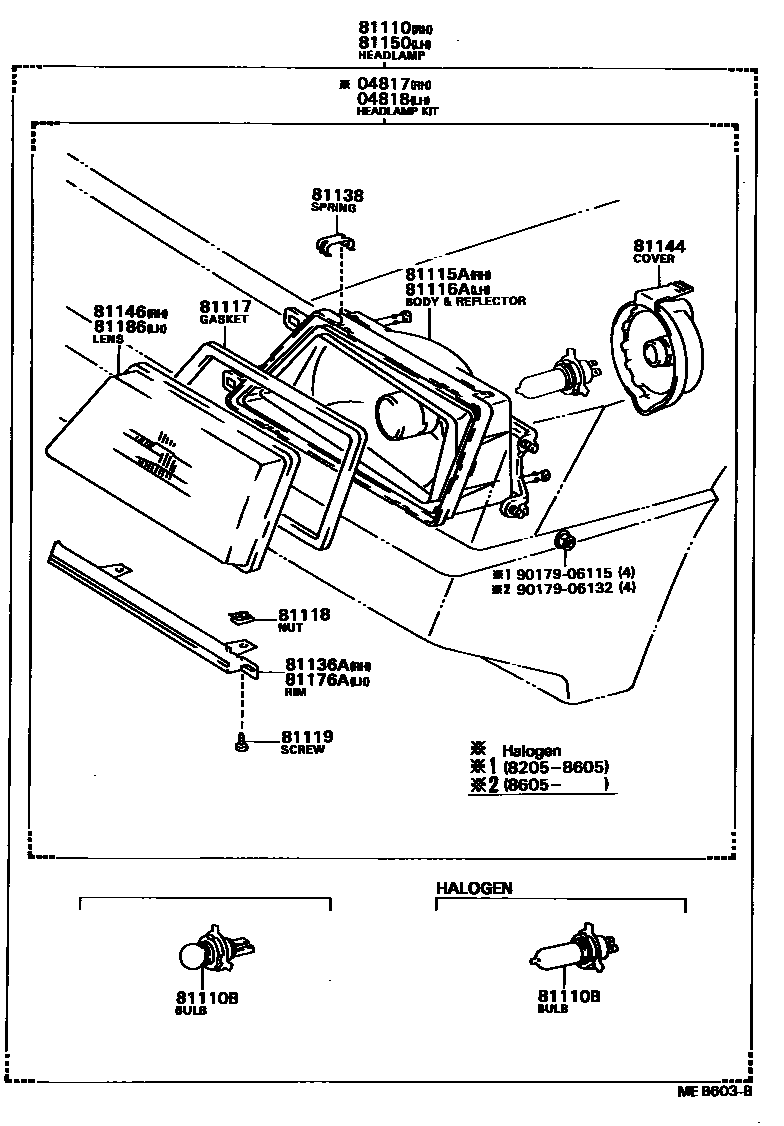

Toyota TERCEL — HEADLAMP

04817HEADLAMP KIT, W/O SEALED BEAM, RH

main04817-16020i198308-198408

BAHAMA SPEC,W/HALOGEN HEADLAMP; W/HALOGEN HEADLAMP

main04817-16030i198208-198801

W/HALOGEN HEADLAMP

main04817-16050i198605-198801

LH TRAFFIC SPEC(*46),W/HALOGEN; W/HALOGEN HEADLAMP

main04817-16060i198208-198605

W/HALOGEN HEADLAMP

04818HEADLAMP KIT, W/O SEALED BEAM, LH

main04818-16020i198308-198408

BAHAMA SPEC W/HALOGEN HEADLAMP; W/HALOGEN HEADLAMP

main04818-16030i198605-198801

W/HALOGEN HEADLAMP

main04818-16050i198605-198801

LH TRAFFIC SPEC(*46),W/HALOGEN; W/HALOGEN HEADLAMP

main04818-16060i198208-198605

W/HALOGEN HEADLAMP

81110HEADLAMP ASSY, RH

main81110-80209i198308-198408

BAHAMA SPEC

main81110-80210i198308-198408

BAHAMA SPEC,HALOGEN; HALOGEN

main81110-80211i198208-198801

main81110-80212i198208-198801

HALOGEN,WHITE

main81110-80213i198605-198801

LH TRAFFIC SPEC(*46) EN

main81110-80214i198605-198801

HALOGEN; LH TRAFFIC SPEC(*46),W/HALOGEN

main81110-80215i198205-198308

HALOGEN,YELLOW

main81110-80219i198208-198408

HALOGEN

main81110-80221i198308-198408

BAHAMA SPEC

main81110-80223i198208-198605

HALOGEN,YELLOW

main81110-80303i198208-198605

main81110-80304i198208-198605

HALOGEN,WHITE

main81110-80422i198408-198605

main81110-80423i198408-198605

HALOGEN

main81110-80426i198408-198605

LH TRAFFIC SPEC(*46)

main81110-80427i198408-198605

HALOGEN; LH TRAFFIC SPEC(*46),W/HALOGEN

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013×2i198605-198801

12V 45/40W,WHITE,12V 45/40W

main90981-13015×2i198205-198801

12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE

main90981-13016×2i198205-198308

12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW

main90981-13022×2i198308-198801

12V 65/60W,WHITE,12V 65/60W

81115ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH

main81105-16150i198308-198408

BAHAMA SPEC

main81105-16160i198205-198408

HALOGEN

main81135-16170i198311-198801

NATO SPEC

main81135-16180i198605-198801

HALOGEN

main81135-16190i198605-198801

LH TRAFFIC SPEC(*46)

main81135-16200i198205-198801

HALOGEN

81116ABODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH

main81106-16150i198308-198408

BAHAMA SPEC

main81106-16160i198308-198408

BAHAMA SPEC,HALOGEN; HALOGEN

main81175-16170i198605-198801

main81175-16180i198311-198801

NATO SPEC,HALOGEN

main81175-16190i198605-198801

LH TRAFFIC SPEC(*46)

main81175-16200i198605-198801

HALOGEN; LH TRAFFIC SPEC(*46),W/HALOGEN

81117PACKING, HEADLAMP HOUSING

main81136-32030×2i198205-198408

main81147-16180×2i198205-198408

81118NUT, SPRING

main81128-16150×4i198308-198408

BAHAMA SPEC

main90183-04016×4i198205-198408

main90183-04020×4i198705-198801

81119SCREW, HEADLAMP

main81119-14880×4i198408-198605

main81119-16150×4i198308-198408

BAHAMA SPEC

main93540-54012×4i198205-198408

81136ARIM, HEADLAMP, RH

main81112-16150i198308-198605

main81136-16180i198208-198801

81138SPRING, HEADLAMP

main81138-14880×8i198308-198408

BAHAMA SPEC,SILVER; SILVER

main81138-20550×12i198605-198801

main81138-32030×4i198205-198408

BLACK

81144COVER, HEADLAMP, NO.1

main81139-14880×2i198205-198408

main81139-30481×2i198205-198408

81146LENS, HEADLAMP, RH

main81135-32030i198308-198408

BAHAMA SPEC

main81146-16170i198311-198801

NATO SPEC

main81146-16180i198208-198801

HALOGEN

main81146-16190i198605-198801

LH TRAFFIC SPEC(*46)

main81146-16200i198605-198801

HALOGEN; LH TRAFFIC SPEC(*46),W/HALOGEN

81150HEADLAMP ASSY, LH

main81150-80206i198308-198408

BAHAMA SPEC

main81150-80207i198308-198408

BAHAMA SPEC,HALOGEN; HALOGEN

main81150-80208i198205-198408

main81150-80209i198311-198801

NATO SPEC,HALOGEN

main81150-80210i198605-198801

LH TRAFFIC SPEC(*46)

main81150-80211i198605-198801

HALOGEN; LH TRAFFIC SPEC(*46),W/HALOGEN

main81150-80212i198605-198801

HALOGEN,YELLOW

main81150-80216i198208-198408

HALOGEN

main81150-80218i198308-198408

BAHAMA SPEC

main81150-80220i198208-198605

HALOGEN,YELLOW

main81150-80300i198208-198605

main81150-80301i198208-198605

HALOGEN,WHITE

main81150-80414i198408-198605

main81150-80415i198408-198605

HALOGEN

main81150-80418i198408-198605

LH TRAFFIC SPEC(*46)

main81150-80419i198408-198605

HALOGEN; LH TRAFFIC SPEC(*46),W/HALOGEN

81176ARIM, HEADLAMP, LH

main81152-16150i198308-198408

BAHAMA SPEC

main81176-16180i198205-198408

81186LENS, HEADLAMP, LH

main81176-32030i198308-198408

BAHAMA SPEC

main81186-16170i198605-198801

main81186-16180i198311-198801

NATO SPEC,HALOGEN

main81186-16190i198605-198801

LH TRAFFIC SPEC(*46)

main81186-16200i198205-198801

HALOGEN

9017906115

main90179-06115

9017906132

main90179-06132

18 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota TERCEL

This section contains 33 genuine Toyota parts for the HEADLAMP system of the Toyota TERCEL. Key components include: HEADLAMP KIT, W/O SEALED BEAM, RH, HEADLAMP KIT, W/O SEALED BEAM, LH, FRONT CLEARANCE LAMP, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1).
