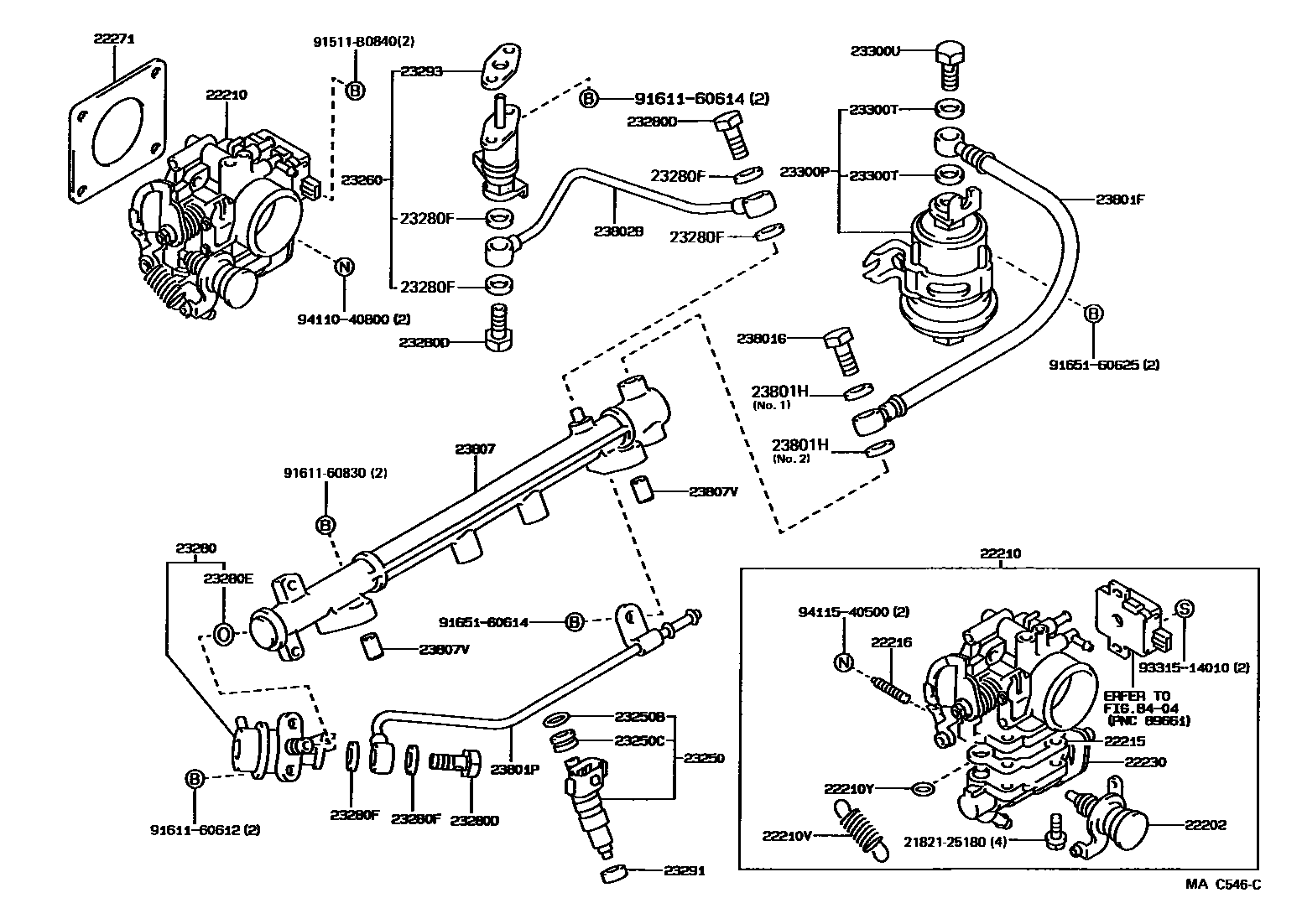

Toyota TERCEL — FUEL INJECTION SYSTEM

0001 1 0002 1

22202DASH POT SUB-ASSY

main22202-11022i3EE..EL31198908-199009

22210BODY ASSY, THROTTLE

main22210-11100i3EE..EL31198908-199009

22210VSPRING, TENSION, W/DAMPER (FOR THROTTLE RETURN)

main90507-12021i3EE..EL31198908-199009

22210YRING, O(FOR AIR TUBE)

main96711-19009i3EE..EL31198908-199009

22215GASKET, THROTTLE BODY COVER

main22215-11010i3EE..EL31198908-198912

main22215-11110i3EE..EL31198912-199009

22216SCREW, DASH POT ADJUSTING

main22216-74010×2i3EE..EL31198908-199009

22230VALVE ASSY, AUXILIARY AIR

main22230-11020i3EE..EL31198908-199009

22271GASKET, THROTTLE BODY

main22271-11010i3EE..EL31198908-198912

main22271-11011i3EE..EL31198912-199009

23250INJECTOR ASSY, FUEL

main23209-11040×4i3EE..EL31198908-199009

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i3EE..EL31198908-199009

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×4i3EE..EL31198908-199009

23260INJECTOR ASSY, COLD START FUEL

main23260-19065i3EE..EL31198908-198912

main23260-19066i3EE..EL31198912-199009

23280REGULATOR ASSY, FUEL PRESSURE

main23280-11030i3EE..EL31198908-199009

23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)

main90401-08003×3i3EE..EL31198908-199009

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i3EE..EL31198908-199009

23280FGASKET(FOR FUEL PRESSURE REGULATOR)

main90430-08005×6i3EE..EL31198908-199009

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i3EE..EL31198908-199009

23293GASKET, COLD START INJECTOR

main23293-62020i3EE..EL31198912-199009

main23293-74010i3EE..EL31198908-198912

sub23293-42010

23300PFILTER, FUEL(FOR EFI)

main23300-19235i3EE..EL31198908-199009

23300TGASKET(FOR FUEL FILTER)

main90430-12005×2i3EE..EL31198908-199009

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i3EE..EL31198908-199009

23801FHOSE, FUEL, NO.1

main90923-01369i3EE..EL31198908-199009

23801GBOLT, UNION(FOR FUEL PIPE)

main23207-74010i3EE..EL31198908-199009

sub23207-46010

23801HGASKET(FOR FUEL PIPE)

main23232-28010i3EE..EL31198908-199009

NO.1

sub23232-41081

main90430-12005i3EE..EL31198908-199009

NO.2

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-11040i3EE..EL31198908-199009

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-11031i3EE..EL31198908-199009

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-11030i3EE..EL31198912-199009

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08036×2i3EE..EL31198908-199009

8404

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

91511B0840

main91511-B0840

9161160612

main91611-60612

9161160614

main91611-60614

9161160830

main91611-60830

9165160614

main91651-60614

9165160625

main91651-60625

9331514010

main93315-14010

9411040800

main94110-40800

9411540500

main94115-40500
