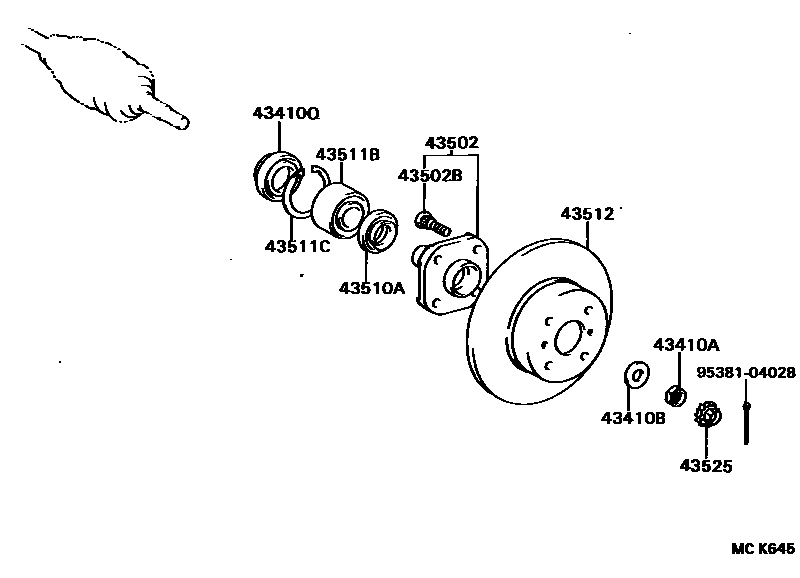

Toyota TERCEL — FRONT AXLE HUB

43410ANUT (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90170-19001×2iEL31198808-199009

43410BWASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90201-20012×2iEL31198808-199009

43410QSEAL, OIL (FOR FRONT DRIVE SHAFT)

main90311-56006iEL31198808-199009

43502HUB SUB-ASSY, FRONT AXLE

main43502-16030iEL31198808-199009

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047×8iEL31198808-199009

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-54003iEL31198808-199009

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38006iEL31198808-199009

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-77001iEL31198808-199009

OD=77

main90521-77002×2iEL31198808-199009

T=2.53

main90521-77003×2iEL31198808-199009

T=2.59

main90521-77004×2iEL31198808-199009

T=2.64

main90521-77005×2iEL31198808-199009

T=2.70

43512DISC, FRONT

main43512-16031×2iEL31198808-199009

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010×2iEL31198808-199009

9538104028

main95381-04028

11 parts on this diagram · 1 diagram in section
