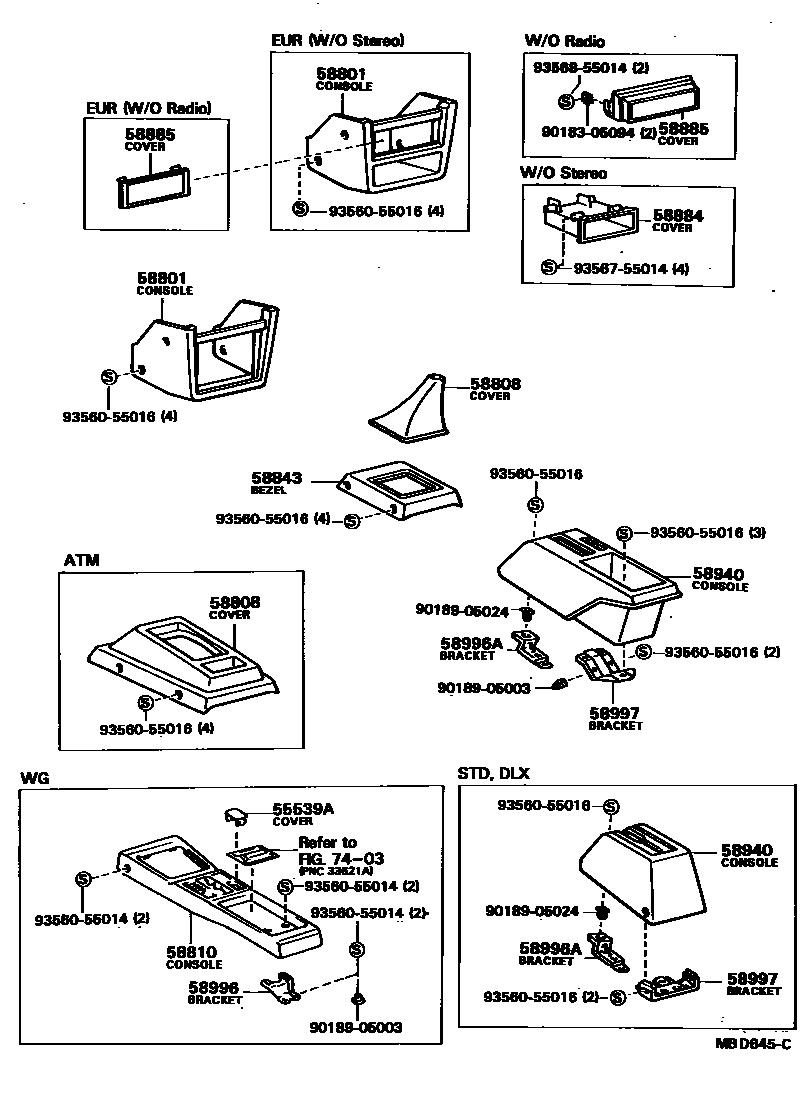

Toyota TERCEL — CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
58801CONSOLE SUB-ASSY, UPPER
W/STEREO CASSETTE,DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
W/STEREO CASSETTE,BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
DIN A TYPE,BLACK,BLACK,TRIM2#
DIN A TYPE,GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BEIGE,DARK BEIGE,TRIM4#
DIN E/F TYPE,BLACK,BLACK,TRIM2#
DIN E/F TYPE,GRAY,GRAY,TRIM1#
DIN E/F TYPE,BEIGE,BEIGE,TRIM4#
DIN E/F TYPE,BEIGE,DARK BEIGE,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
58810CONSOLE ASSY
BLACK,BLACK,TRIM2#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
58843BEZEL, SHIFTING HOLE
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
58884COVER, STEREO OPENING
58940CONSOLE ASSY, REAR
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
BLACK,BLACK,TRIM2#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BEIGE,DARK BEIGE,TRIM4#
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
7403
9018305094
main90183-05094
9018905003
main90189-05003
9018905024
main90189-05024
9356055014
main93560-55014
9356055016
main93560-55016
9356755014
main93567-55014
9356855014
main93568-55014
19 parts on this diagram · 2 diagrams in section
