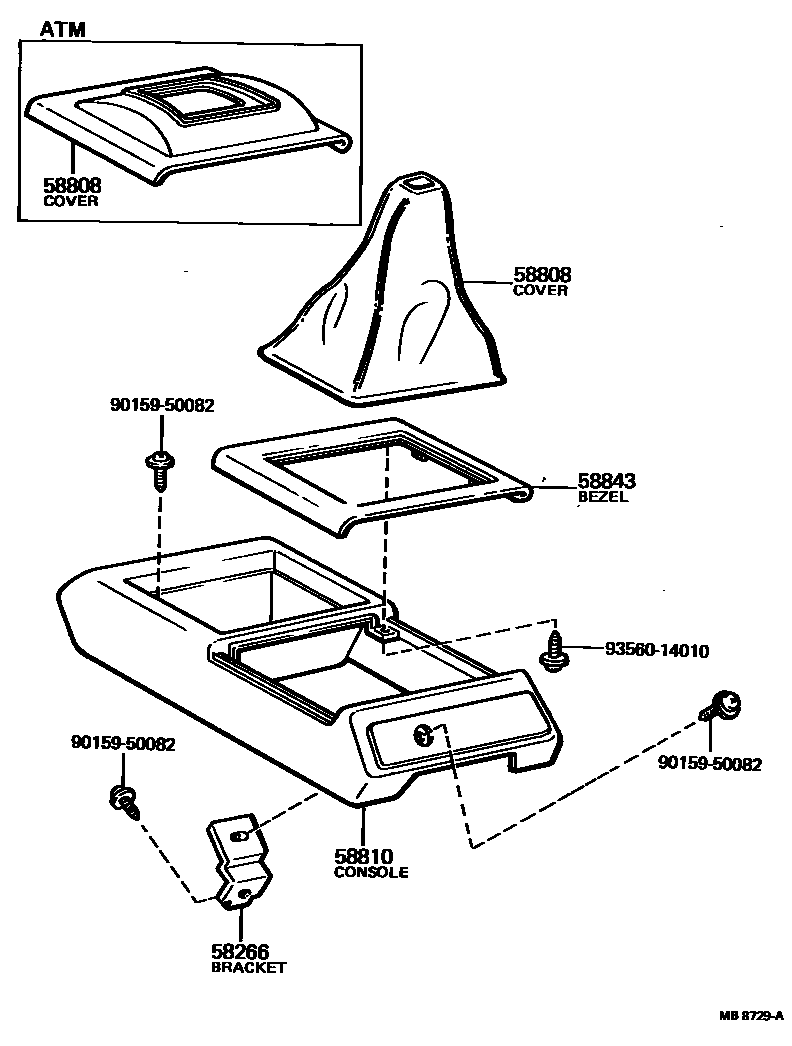

Toyota TERCEL — CONSOLE BOX & BRACKET
58266BRACKET, CONSOLE BOX SUPPORT, FRONT
58808COVER SUB-ASSY, SHIFTING HOLE
DENMARK SPEC,BLACK,BLACK,TRIM2#
DENMARK SPEC,BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
58810CONSOLE ASSY
DENMARK SPEC,BLACK,BLACK,TRIM2#
DENMARK SPEC,BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
BLACK,BLACK,TRIM2#
BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
COLD SPEC,BLACK,BLACK,TRIM2#
COLD SPEC,BLUE,BLUE,TRIM8#
COLD SPEC,LIGHT BROWN,BROWN,TRIM4#
58843BEZEL, SHIFTING HOLE
DENMARK SPEC,BLACK,BLACK,TRIM2#
DENMARK SPEC,BLUE,BLUE,TRIM8#
LIGHT BROWN,BROWN,TRIM4#
9015950082
main90159-50082
9356014010
main93560-14010
6 parts on this diagram · 2 diagrams in section
