Toyota TERCEL — ARMREST & VISOR

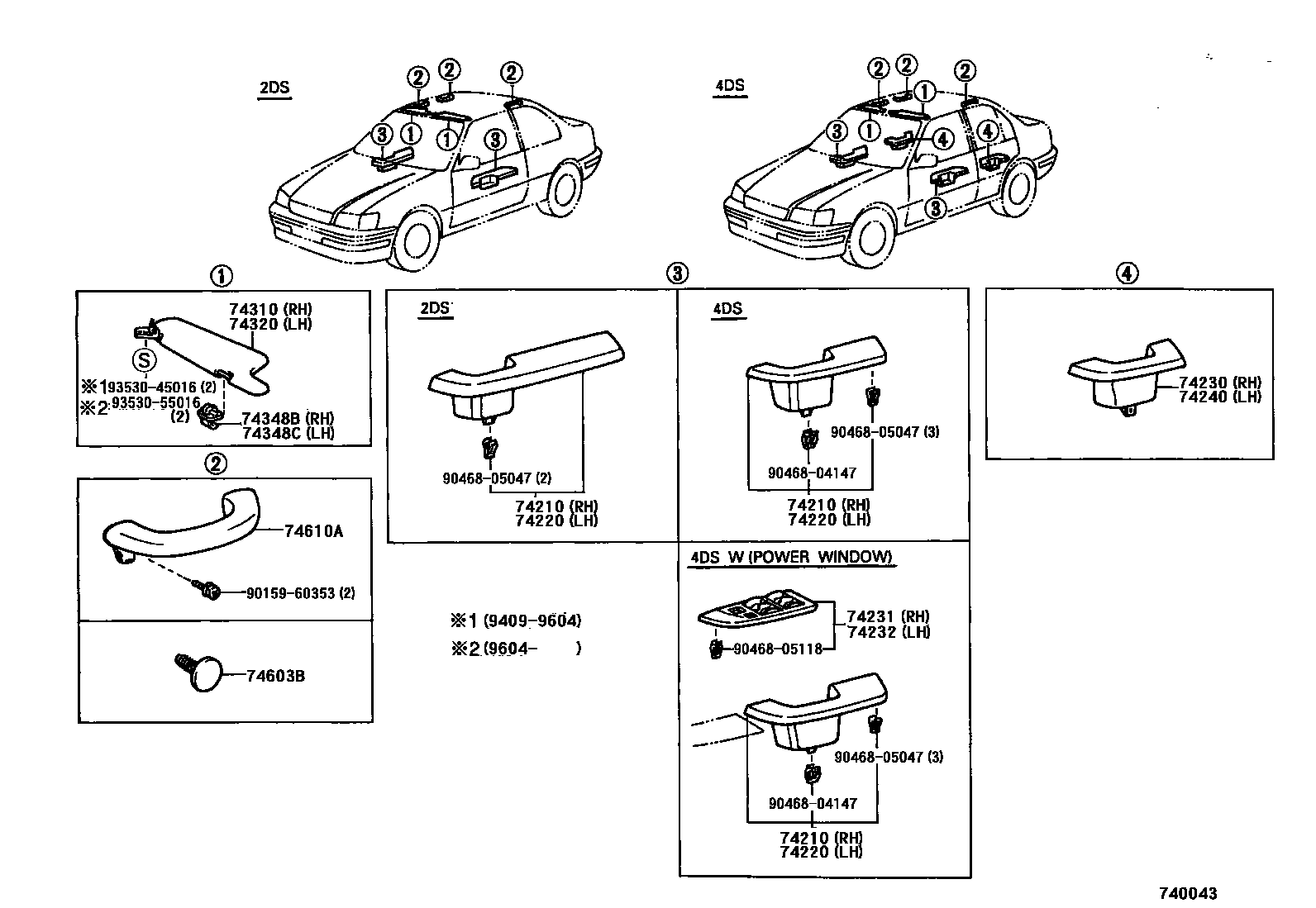

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-16080-B0i199409-199608
BLUISH GRAY,TRIM1#
main74210-16080-E0i199512-199602
BLACK HAWK,LT.BEIGE,TRIM4
main74210-16090-B0i199409-199608
BLUISH GRAY,TRIM1#
main74210-16090-B1i199608-199712
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main74210-16090-E0i199608-199907
W(POWER WINDOW),OAK,TRIM4#
main74210-16110-E0i199409-199501
OAK,TRIM4#
main74210-16111-B1i199608-199907
SHADOW GRAY,TRIM1#
main74210-16111-E0i199501-199907
OAK,TRIM4#
main74210-16120-B1i199608-199907
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main74210-16120-E0i199409-199907
W(POWER WINDOW),OAK,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74220-16060-B0i199409-199608
BLUISH GRAY,TRIM1#
main74220-16060-E0i199512-199602
BLACK HAWK,LT.BEIGE,TRIM4
main74220-16070-B0i199409-199608
BLUISH GRAY,TRIM1#
main74220-16070-B1i199608-199907
SHADOW GRAY,TRIM1#
main74220-16070-E0i199409-199608
OAK,TRIM4#
main74220-16090-E0i199409-199501
OAK,TRIM4#
main74220-16091-B1i199608-199907
SHADOW GRAY,TRIM1#
main74220-16091-E0i199501-199907
OAK,TRIM4#
main74220-16100-B1i199608-199907
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main74220-16100-E0i199409-199907
W(POWER WINDOW),OAK,TRIM4#
74230ARMREST ASSY, REAR, RH
main74250-16060-B1i199608
SHADOW GRAY,TRIM1#
main74250-16060-E0i199409
OAK,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-10032-B0i199712
PUERTORICO SPEC,SHADOW GRAY,TRIM1#
main74231-10032-C0i199409-199712
PUERTORICO SPEC,BLACK,TRIM1#,4#
main74231-10032-E0i199712
PUERTORICO SPEC,OAK,TRIM4#
main74231-16040-B1i199712
SHADOW GRAY,TRIM1#
main74231-16040-C0i199608-199712
BLACK,TRIM1#,4#
main74231-16040-E0i199712
OAK,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-10030-B0i199712
SHADOW GRAY,TRIM1#
main74232-10030-C0i199509-199608
BLACK,TRIM1#,4#
main74232-10030-E0i199712
OAK,TRIM4#
main74232-16020-B1i199712
SHADOW GRAY,TRIM1#
main74232-16020-C0i199409-199712
BLACK,TRIM1#,4#
main74232-16020-E0i199712
OAK,TRIM4#
74240ARMREST ASSY, REAR, LH
main74250-16060-B1i199608
SHADOW GRAY,TRIM1#
main74250-16060-E0i199409
OAK,TRIM4#
74310VISOR ASSY, RH
main74310-16600-B1i199409-199608
LT. BLUISH GRAY,TRIM1#
main74310-16600-E0i199512-199602
BLACK HAWK,LT.BEIGE,TRIM4#
main74310-16601-B1i199608-199702
LT. BLUISH GRAY,TRIM1#
main74310-16601-E0i199608-199702
LT. BEIGE,TRIM4#
main74310-16602-B1i199702-199708
LT. BLUISH GRAY,TRIM1#
main74310-16602-E0i199702-199708
LT. BEIGE,TRIM4#
main74310-16603-B1i199708
LT. BLUISH GRAY,TRIM1#
main74310-16603-E0i199708
LT. BEIGE,TRIM4#
main74310-16610-B1i199409
W(VANITY MIRROR),LT. BLUISH GRAY,TRIM1#
main74310-16610-E0i199409
W(VANITY MIRROR),LT. BEIGE,TRIM4#
main74310-16620-B1i199409-199608
LT. BLUISH GRAY,TRIM1#
main74310-16830-B0i199712
LT. BLUISH GRAY,TRIM1#
main74310-16830-E0i199712
LT. BEIGE,TRIM4#
74320VISOR ASSY, LH
main74320-16410-B1i199409-199712
LT. BLUISH GRAY,TRIM1#
main74320-16410-E0i199409-199712
LT. BEIGE,TRIM4#
main74320-16420-B1i199409-199608
LT. BLUISH GRAY,TRIM1#
main74320-16420-E0i199512-199602
BLACK HAWK,LT.BEIGE,TRIM4#
main74320-16421-B1i199608-199702
LT. BLUISH GRAY,TRIM1#
main74320-16421-E0i199608-199702
LT. BEIGE,TRIM4#
main74320-16422-B1i199702-199708
LT. BLUISH GRAY,TRIM1#
main74320-16422-E0i199702-199708
LT. BEIGE,TRIM4#
main74320-16423-B1i199708-199712
LT. BLUISH GRAY,TRIM1#
main74320-16423-E0i199712
LT. BEIGE,TRIM4#
main74320-16440-B1i199409-199712
W(*80),LT. BLUISH GRAY,TRIM1#
main74320-16440-E0i199409-199712
W(*80),LT. BEIGE,TRIM4#
main74320-16441-B1i199608-199708
W(*80,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#
main74320-16441-E0i199608-199708
W(*80,DRIVER SIDE),LT. BEIGE,TRIM4#
main74320-16442-B1i199708
W(*80,DRIVER SIDE),LT. BLUISH GRAY,TRIM1#
main74320-16442-E0i199708
W(*80,DRIVER SIDE),LT. BEIGE,TRIM4#
74348BHOLDER, VISOR, RH
main74348-16010-B0i199409
LT.BLUISH GRAY,TRIM1#
main74348-16010-E0i199409
MD.OAK,TRIM4#
74348CHOLDER, VISOR, LH
main74348-16010-B0i199409
LT.BLUISH GRAY,TRIM1#
main74348-16010-E0i199409
MD.OAK,TRIM4#
74603BCLIP (FOR ASSIST GRIP)
main90467-05021-B1×2i199608
LT.BLUISH GRAY,TRIM1#
sub90467-06177
main90467-05021-E1×6i199608
MD.OAK,TRIM4#
sub90467-06177
74610AGRIP SUB-ASSY, ASSIST
main74611-20030-B2i199608
LT.BLUISH GRAY,TRIM1#
sub74610-12090
main74611-20030-E1×3i199608
MD.OAK,TRIM4#
sub74610-12090
9015960353
main90159-60353
9046804147
main90468-04147
9046805047
main90468-05047
9046805118
main90468-05118
9353045016
main93530-45016
9353055016
main93530-55016

18 parts on this diagram · 1 diagram in section
