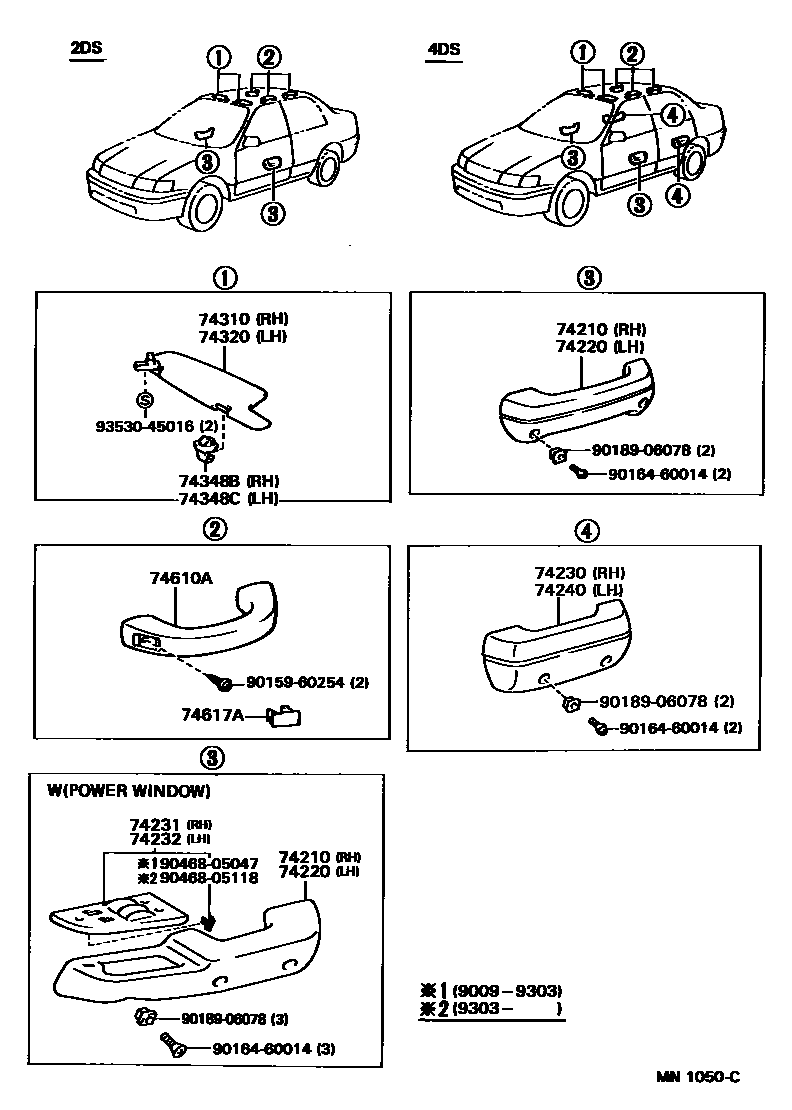

Toyota TERCEL — ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-10030-22iEL42..4DS..USA199208-199303

W(POWER WINDOW),BLACK,TRIM2#

main74210-10030-W4iEL42..4DS..USA199208-199303

W(POWER WINDOW),EISEN BLUE,TRIM8#

main74210-10031-22iEL42..4DS..USA199303-199409

W(POWER WINDOW),BLACK,TRIM2#

main74210-10031-W4iEL42..4DS..USA199303-199409

W(POWER WINDOW),EISEN BLUE,TRIM8#

main74210-16040-01iEL42..DLX,LE199009-199208

BLACK,TRIM2#

main74210-16040-04iEL42..DLX,LE199009-199208

GRAYISH BLUE,TRIM8#

main74210-16040-22iEL42..DLX,LE199208-199409

BLACK,TRIM2#

main74210-16040-W4iEL42..DLX,LE199208-199409

EISEN BLUE,TRIM8#

main74210-16060-01iEL42..STD199009-199208

BLACK,TRIM2#

sub74210-16061

main74210-16060-22iEL42..STD199208-199409

BLACK,TRIM2#

sub74210-16061

74220ARMREST ASSY, FRONT, LH

main74210-16040-01iEL42..DLX,LE199009-199208

BLACK,TRIM2#

main74210-16040-04iEL42..DLX,LE199009-199208

GRAYISH BLUE,TRIM8#

main74210-16040-22iEL42..DLX,LE199208-199409

BLACK,TRIM2#

main74210-16040-W4iEL42..DLX,LE199208-199409

EISEN BLUE,TRIM8#

main74210-16060-01iEL42..STD199009-199208

BLACK,TRIM2#

sub74210-16061

main74210-16060-22iEL42..STD199208-199409

BLACK,TRIM2#

sub74210-16061

main74220-10020-22iEL42..4DS..USA199208-199303

W(POWER WINDOW),BLACK,TRIM2#

main74220-10020-W4iEL42..4DS..USA199208-199303

W(POWER WINDOW),EISEN BLUE,TRIM8#

main74220-10021-22iEL42..4DS..USA199303-199409

W(POWER WINDOW),BLACK,TRIM2#

main74220-10021-W4iEL42..4DS..USA199303-199409

W(POWER WINDOW),EISEN BLUE,TRIM8#

74230ARMREST ASSY, REAR, RH

main74210-16060-01iEL42..4DS199009-199208

BLACK,TRIM2#

sub74210-16061

main74210-16060-04iEL42..4DS199009-199208

GRAYISH BLUE,TRIM8#

sub74210-16061

main74210-16060-22iEL42..4DS199208-199409

BLACK,TRIM2#

sub74210-16061

main74210-16060-W4iEL42..4DS199208-199409

EISEN BLUE,TRIM8#

sub74210-16061

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-10030-C0iEL42..4DS..USA199208-199303

BLACK,TRIM2#

main74231-10030-J0iEL42..4DS..USA199208-199303

EISEN BLUE,TRIM8#

main74231-10031-C0iEL42..4DS..USA199303-199309

BLACK,TRIM2#

sub74231-10032

main74231-10031-J0iEL42..4DS..USA199303-199309

EISEN BLUE,TRIM8#

sub74231-10032

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-10010-C0iEL42..4DS..USA199208-199303

BLACK,TRIM2#

main74232-10010-J0iEL42..4DS..USA199208-199303

EISEN BLUE,TRIM8#

main74232-10011-C0iEL42..4DS..USA199303-199409

BLACK,TRIM2#

main74232-10011-J0iEL42..4DS..USA199303-199409

EISEN BLUE,TRIM8#

74240ARMREST ASSY, REAR, LH

main74210-16060-01iEL42..4DS199009-199208

BLACK,TRIM2#

sub74210-16061

main74210-16060-04iEL42..4DS199009-199208

GRAYISH BLUE,TRIM8#

sub74210-16061

main74210-16060-22iEL42..4DS199208-199409

BLACK,TRIM2#

sub74210-16061

main74210-16060-W4iEL42..4DS199208-199409

EISEN BLUE,TRIM8#

sub74210-16061

74310VISOR ASSY, RH

main74310-16500-03iEL42..STD..CND199009-199208

GRAY,TRIM2#

main74310-16500-S3iEL42..STD..CND199208-199308

LI.GRAY,TRIM2#

main74310-16510-03iEL42..(DLX,LE)..CND199009-199208

GRAY,TRIM2#

main74310-16510-04iEL42..(DLX,LE)..CND199009-199208

GRAYISH BLUE,TRIM8#

main74310-16510-S3iEL42..(DLX,LE)..CND199208-199308

LI.GRAY,TRIM2#

main74310-16510-W7iEL42..(DLX,LE)..CND199208-199308

LI.BLUE,TRIM8#

main74310-16511-S3iEL42..CND199308-199409

LI. GRAY,TRIM2#

main74310-16511-W7iEL42..(DLX,LE)..CND199308-199409

EISEN BLUE,TRIM8#

main74310-16520-03iEL42..USA199009-199208

GRAY,TRIM2#

main74310-16520-04iEL42..(DLX,LE)..USA199009-199208

GRAYISH BLUE,TRIM8#

main74310-16521-S3iEL42..USA199208-199409

LI.GRAY,TRIM2#

main74310-16521-W7iEL42..(DLX,LE)..USA199208-199409

LI.BLUE,TRIM8#

74320VISOR ASSY, LH

main74320-16260-03iEL42..CND199009-199208

GRAY,TRIM2#

main74320-16260-04iEL42..(DLX,LE)..CND199009-199208

GRAYISH BLUE,TRIM8#

main74320-16260-S3iEL42..CND199208-199308

LI.GRAY,TRIM2#

main74320-16260-W7iEL42..(DLX,LE)..CND199208-199308

LI.BLUE,TRIM8#

main74320-16310-03iEL42..USA199009-199208

GRAY,TRIM2#

main74320-16310-04iEL42..(DLX,LE)..USA199009-199208

GRAYISH BLUE,TRIM8#

main74320-16311-S3iEL42..USA199208-199409

LI.GRAY,TRIM2#

main74320-16311-W7iEL42..(DLX,LE)..USA199208-199409

LI.BLUE,TRIM8#

main74320-16380-B0iEL42..CND199308-199409

LI. GRAY,TRIM2#

main74320-16380-J0iEL42..(DLX,LE)..CND199308-199409

EISEN BLUE,TRIM8#

74348BHOLDER, VISOR, RH

main74348-16010-03iEL42199009-199208

GRAY,TRIM2#

main74348-16010-04iEL42..DLX,LE199009-199208

GRAYISH BLUE,TRIM8#

main74348-16010-S3iEL42199208-199409

LI.GRAY,TRIM2#

main74348-16010-W7iEL42..DLX,LE199208-199409

LI.BLUE,TRIM8#

74348CHOLDER, VISOR, LH

main74348-16010-03iEL42199009-199208

GRAY,TRIM2#

main74348-16010-04iEL42..DLX,LE199009-199208

GRAYISH BLUE,TRIM8#

main74348-16010-S3iEL42199208-199409

LI.GRAY,TRIM2#

main74348-16010-W7iEL42..DLX,LE199208-199409

LI.BLUE,TRIM8#

74610AGRIP SUB-ASSY, ASSIST

main74610-16020-03×3iEL42..CND199009-199201

GRAY,TRIM2#

sub74610-10020

sub74617-14010

main74610-16020-04×3iEL42..DLX,LE199201-199208

GRAYISH BLUE,TRIM8#

sub74610-10020

sub74617-14010

main74610-16020-S3×3iEL42..DLX,LE;EL42..STD..CND199208-199409

LI.GRAY,TRIM2#

sub74610-10020

sub74617-14010

main74610-16020-W7×3iEL42..DLX,LE199208-199409

LI.BLUE,TRIM8#

sub74610-10020

sub74617-14010

74617APLUG, ASSIST GRIP

main74617-16020-03×6iEL42..CND199009-199201

GRAY,TRIM2#

main74617-16020-04×6iEL42..(DLX,LE)..CND199009-199201

GRAYISH BLUE,TRIM8#

main74617-16020-S3×6iEL42..DLX,LE;EL42..STD..CND199208-199409

LI.GRAY,TRIM2#

main74617-16020-W7×6iEL42..DLX,LE199208-199409

LI.BLUE,TRIM8#

9015960254

main90159-60254

9016460014

main90164-60014

9018906078

main90189-06078

9046805047

main90468-05047

9046805118

main90468-05118

9353045016

main93530-45016

18 parts on this diagram · 1 diagram in section
