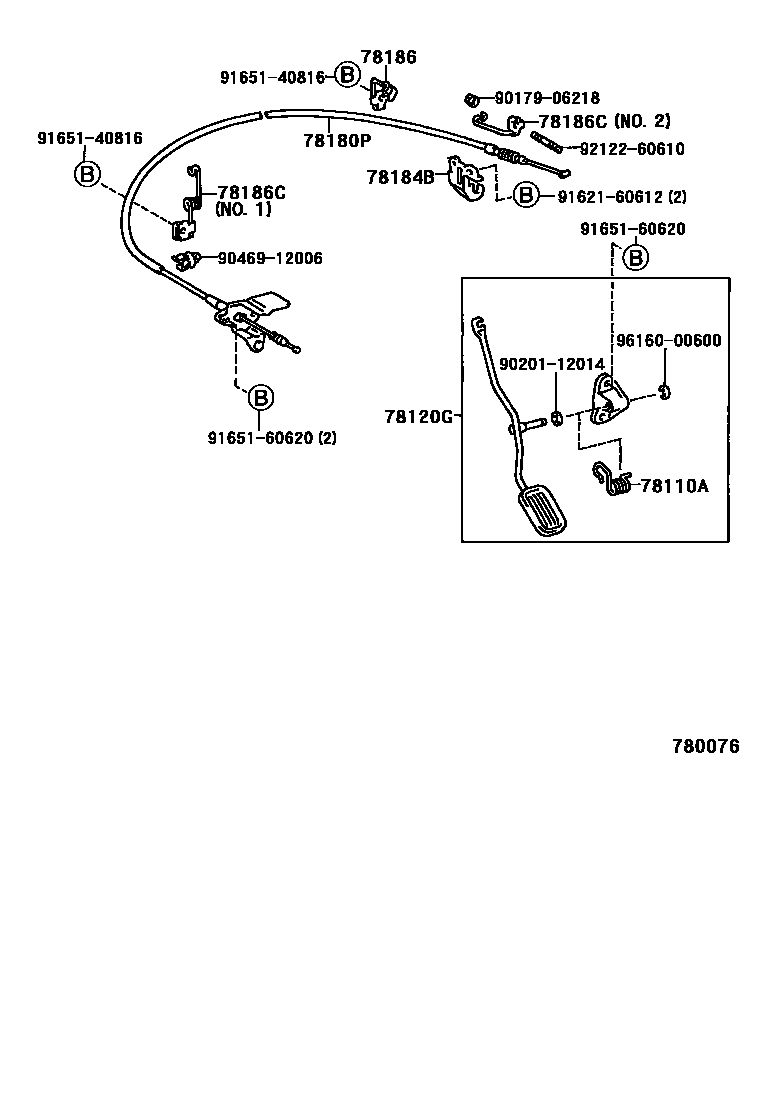

Toyota TERCEL — ACCELERATOR LINK
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78184BBRACKET, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186CSUPPORT, ACCELERATOR CONTROL CABLE NO.3
NO.1
NO.2
NO.2
9017906218
main90179-06218
9020112014
main90201-12014
9046912006
main90469-12006
9162160612
main91621-60612
9165140816
main91651-40816
9165160620
main91651-60620
9212260610
main92122-60610
9616000600
main96160-00600
14 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota TERCEL
This section contains 14 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota TERCEL. Key components include: SPRING (FOR ACCELERATOR PEDAL ROD), ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR CONTROL, BRACKET, ACCELERATOR CONTROL CABLE, SUPPORT, ACCELERATOR CONTROL CABLE, NO.1.
