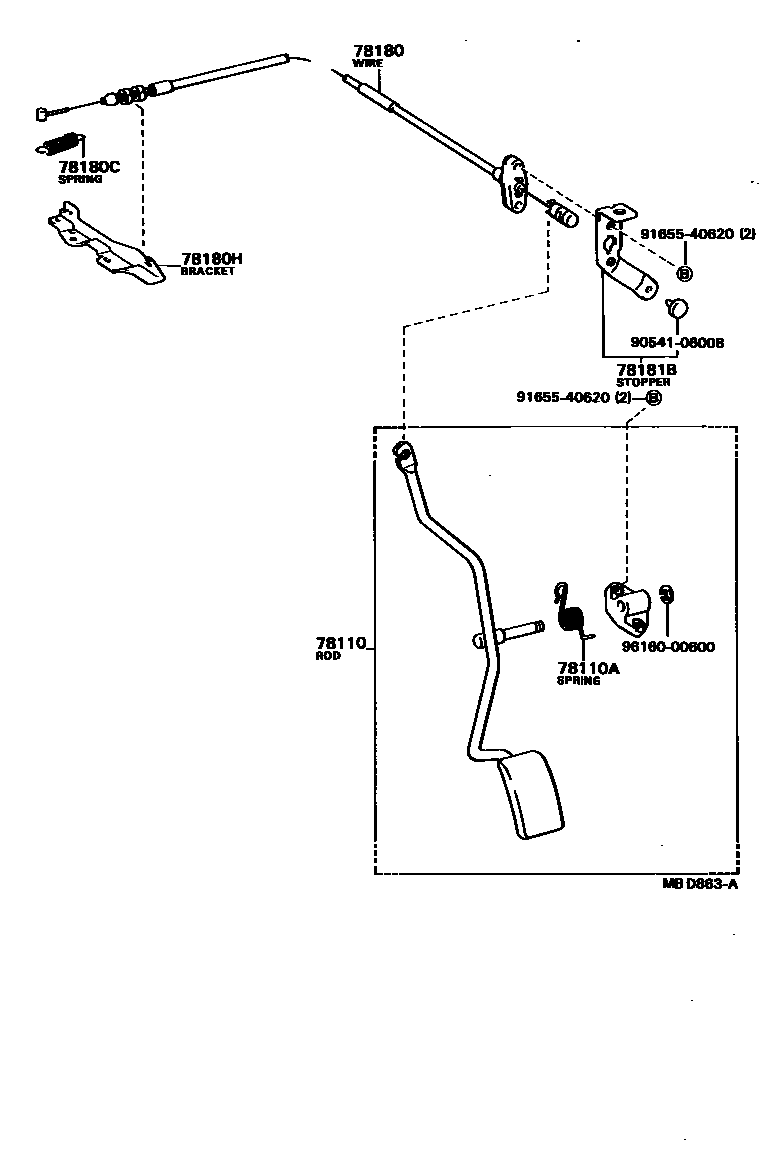

Toyota TERCEL — ACCELERATOR LINK

0001 1 0002 1

78110ROD ASSY, ACCELERATOR PEDAL

main78120-16030iAL20,25..RHD198205-198801

main78120-16040iAL20,25..LHD..GEN198207-198605

main78120-16050iAL2#..LHD..EUR198207-198605

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18030iAL20,25..RHD198205-198801

main90508-18031iAL2#..LHD198205-198801

78180WIRE ASSY, ACCELERATOR

main78180-16050iAL20,25..RHD198205-198801

CHUHATSU

main78180-16070iAL2#..LHD198205-198801

main78180-16080iAL20,25..RHD198205-198801

NIHON CABLE

78180CSPRING, TENSION (FOR ACCELERATOR WIRE)

main90507-12004iAL20,25..RHD..GEN198205-198801

78180HBRACKET, ACCELERATOR CONTROL CABLE

main21524-14010iAL20..RHD..3FC..EUG198205-198210

main21524-14011iAL20,25..RHD..GEN198210-198801

main78184-16030iAL2#..LHD198205-198801

78181BSTOPPER, ACCELERATOR IDLE ADJUSTING

main78181-16020iAL20,25..RHD198205-198801

9054106008

main90541-06008

9165540620

main91655-40620

9616000600

main96160-00600

9 parts on this diagram · 2 diagrams in section
