Toyota TACOMA — WINDSHIELD WIPER

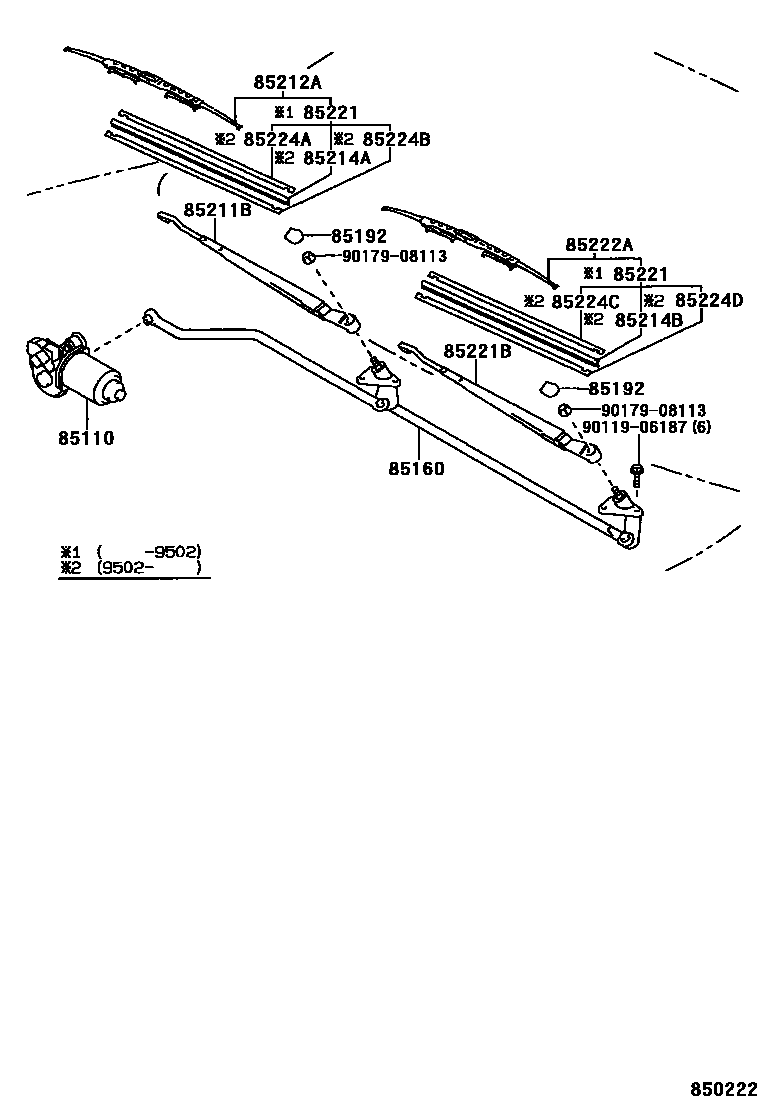

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-04010i199706-200009
MARK 90
main85110-04020i199706-200009
MARK 91
main85110-35170i199501-199706
main85110-35180i199501-199706
COLD SPEC
85160LINK ASSY, WINDSHIELD WIPER
main85150-04010i200009
MARK 577
main85150-04020i200009
MARK 592
main85150-35100i199501-199706
main85150-35110i199501-199706
COLD SPEC
85192COVER, WINDSHIELD WIPER ARM
main85292-01020×2i200009
85211BARM, FRONT WIPER, RH
main85211-04010i199706-200009
main85211-35060i199501-199706
85212ABLADE, FR WIPER, RH
main85212-04010i200009-200309
main85212-04011i200309
main85212-35020i199501-199701
main85212-35021i199701-199706
85214ARUBBER, WIPER, RH
main85214-04010i199706-200009
main85214-04011i200309
main85214-35020i199502-199706
85214BRUBBER, WIPER, LH
main85214-04010i200009-200309
main85214-04011i200309
main85214-35020i199502-199706
85221BLADE, WINDSHIELD WIPER
main85213-35060i199501-199502
RH
main85223-35080i199501-199502
LH
85221BARM, FRONT WIPER, LH
main85221-04010i199706-200009
main85221-35060i199501-199706
85222ABLADE, FR WIPER, LH
main85222-04010i200009-200309
main85222-04011i200309
main85222-35070i199501-199701
main85222-35071i199701-199706
85224APLATE, WIPER RUBBER BACKING, NO.1
main85224-08030i199706-200009
main85224-35020i199502-199706
85224BPLATE, WIPER RUBBER BACKING, NO.2
main85224-08030i199706-200009
main85224-35020i199502-199706
85224CPLATE, WIPER RUBBER BACKING, NO.3
main85224-04020i199706-200009
main85224-35030i199502-199706
85224DPLATE, WIPER RUBBER BACKING, NO.4
main85224-04020i199706-200009
main85224-35030i199502-199706
9011906187
main90119-06187
9017908113
main90179-08113

16 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota TACOMA

This section contains 16 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota TACOMA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
