Toyota TACOMA — WINDSHIELD WASHER

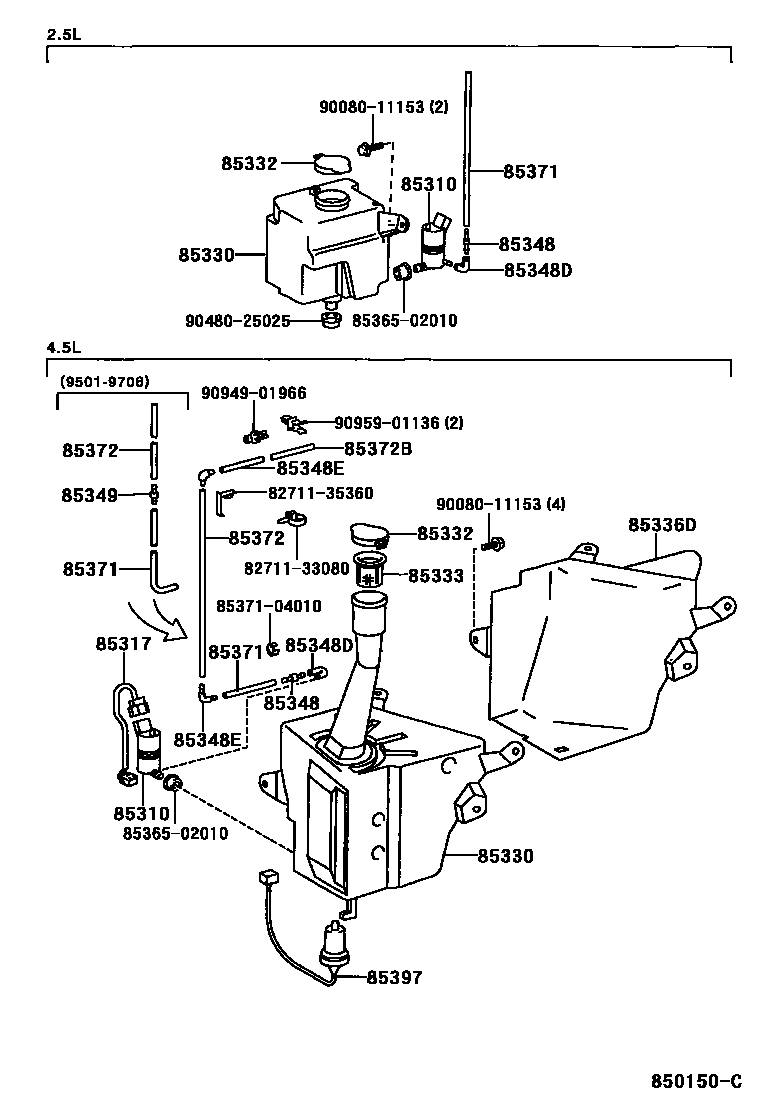

Parts diagram
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-06030i200009
85317WIRING ASSY, WASHER
main85317-04020i199501-199706
main85317-04021i199706-200009
85330JAR ASSY, WINDSHIELD WASHER
main85315-04040i199501-199601
main85315-04050i199706-200009
main85315-04060i200009
W(LEVEL WARNING)
85332CAP, WINDSHIELD WASHER JAR
main85316-06020i199501-199601
COLD SPEC OR W(*66) OR W(*CRC)
main85332-04010i199501-199601
85333FILTER, WINDSHIELD WASHER JAR
main85333-03010i199501-200009
85336DPACKING, WINDSHIELD WASHER JAR
main85336-04010i199501-200009
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85357-07010i200009
main85377-01010i199501-200009
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85376-01010i199501-199601
main85376-06010i199601-200009
COLD SPEC OR W(*66) OR W(*CRC)
main85376-06011i200009
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85355-20200×2i200009
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89122i199501-199706
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85374-04030i199501-199601
L=350,COLD SPEC OR W(*66) OR W(*CRC)
main85374-04040i199501-199601
L=340
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90068-33011i199706-200009
L=1250(*H,L=400); L=1250(*H,L=600)
main90099-33299i199601-199706
L=1000(*H,L=400); L=1000(*H,L=400),COLD SPEC OR W(*66) OR W(*CRC)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90068-33011i199706-200009
L=1250(*H,L=760)
main90099-33080i199501-199706
L=1450(*H,L=760)
85397SWITCH ASSY,LEVEL WARNING
main85397-35140i199501-199609
main85397-35141i199706-200009
8271133080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-33080
8271135360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35360
8536502010INSULATOR, WINDSHIELD WASHER JAR
main85365-02010
8537104010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-04010
9008011153
main90080-11153
9048025025
main90480-25025
9094901966
main90949-01966
9095901136
main90959-01136

22 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota TACOMA

This section contains 31 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota TACOMA. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, WIRING ASSY, WASHER, JAR ASSY, WINDSHIELD WASHER, CAP, WINDSHIELD WASHER JAR.
