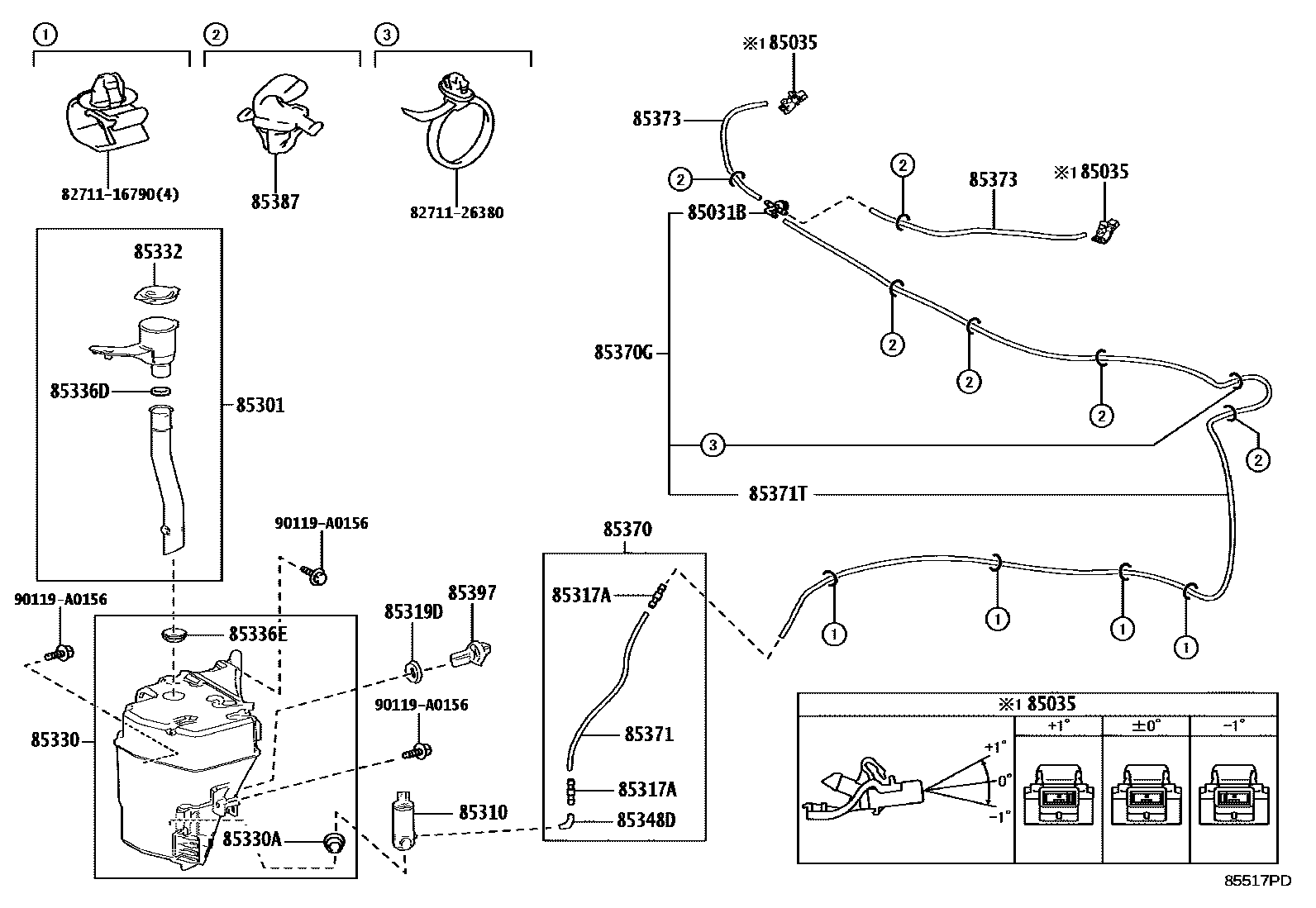

Toyota TACOMA — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-0C010i202312

85035NOZZLE SUB-ASSY, WASHER

main85381-0T010×2i202312

ANGLE 0

main85381-0T020×2i202312

ANGLE +1

main85381-0T030×2i202312

ANGLE -1

85301INLET SUB-ASSY, WASHER

main85301-AK010i202312

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-04011i202312

85317AJOINT, WASHER TANK

main85317-02300×2i202312

85319DPACKING, FRONT WASHER

main85319-AA020i202312

85330JAR ASSY, WINDSHIELD WASHER

main85315-AK010i202312

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202312

85332CAP, WINDSHIELD WASHER JAR

main85316-24130i202312

85336DPACKING, WINDSHIELD WASHER JAR

main85336-42320i202312

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i202312

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481i202312

85370HOSE ASSY, WINDSHIELD WASHER

main85370-AK020i202312

85370GHOSE ASSY, WINDSHIELD WASHER, NO.2

main85370-AK010i202312

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i202312

L=1450(*H,L=290)

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90069-46332i202312

L=2375

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-46333×2i202312

L=397

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-12040×6i202312

85397SWITCH ASSY,LEVEL WARNING

main85397-AA040i202312

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8271126380WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-26380

90119A0156

main90119-A0156

22 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota TACOMA

This section contains 22 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota TACOMA. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JOINT, WASHER TANK.
