Toyota TACOMA — WINDSHIELD WASHER

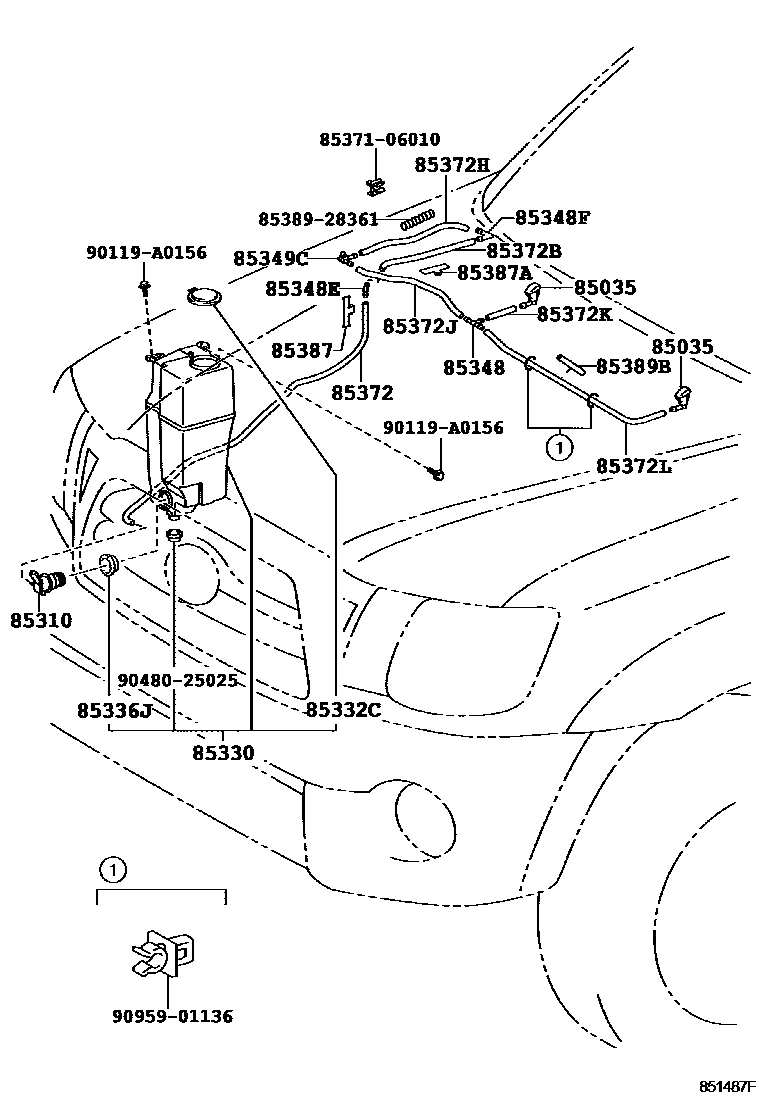

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-04040×2i201109-201508
main85381-30220×2i201508-201711
ANGLE 0
main85381-30230×2i201508-201711
ANGLE -2
main85381-30240×2i201508-201711
ANGLE +2
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85330-04010i201508-201705
main85330-04011i201706-201711
main85330-AE010i201109-201408
85330JAR ASSY, WINDSHIELD WASHER
main85315-04090i200409-200805
main85315-04110supersedes 85315-04100i201711-201909
CANADA SPEC
85332CCAP, FRONT WASHER TANK
main85316-0C060i200805-201109
main85316-20300i200409-200712
85336JPROTECTOR, WASHER JAR
main85336-60300i201109-201508
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85375-17050i201109-201408
main85378-32220i200805-201006
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85355-20200i200409-200612
main85375-02260i200805-201006
main85387-04101i201701-201711
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
main85355-12360i201109-201408
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
main85375-04080i200702-200805
main85387-14540i200409-200702
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90068-33041i200409-200805
L=830
main90068-33273i201909
L=870
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
main90068-33023i201508-201711
L=260
main90068-33040i201109-201408
L=240
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
main90068-33021i200409-200805
L=280
main90068-33274i201508-201711
L=790
main90099-33080i201109-201408
L=1450(*H,L=280)
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
main90068-33042i200805-201006
L=420
main90068-33053i201109-201508
L=450
85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
main90068-33026i200409-200805
L=50
main90068-33029i201109-201408
L=90
85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
main90068-33039i200409-200805
L=640
main90068-33086i201109-201408
L=650
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
main82711-1E450i200409-200805
85387ACLAMP, WASHER, NO.2
main82711-3A610i200409-200805
85389BPROTECTOR, WINDSHIELD WASHER
main85389-04080i200702-200805
8537106010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-06010
8538928361PACKING, WINDSHIELD WASHER HOSE, NO.1
main85389-28361
90119A0156
main90119-A0156
9048025025
main90480-25025
9095901136
main90959-01136

23 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota TACOMA

This section contains 33 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota TACOMA. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
