Toyota TACOMA — SWITCH & RELAY & COMPUTER

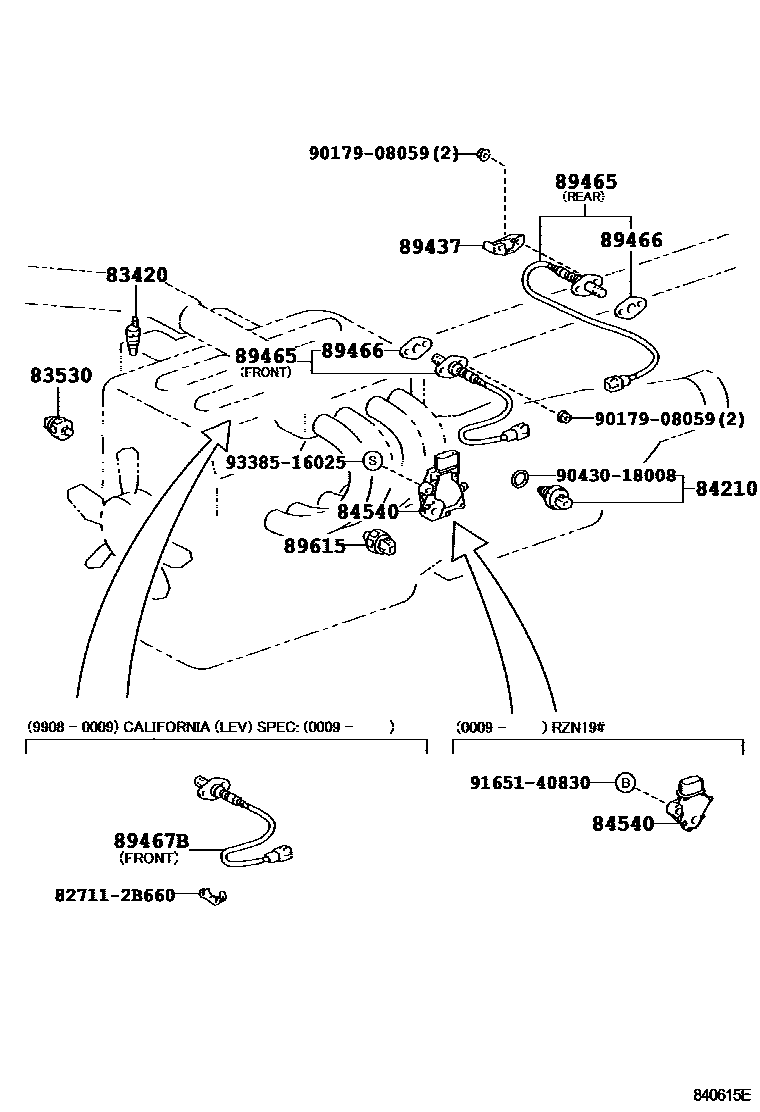

Parts diagram
83420GAGE ASSY, WATER TEMPERATURE SENDER
main83420-16020i199501-200009
main83420-20040i200009
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
main83530-28020i199808-200009
main83530-30090i199501-200009
84210SWITCH ASSY, BACK-UP LAMP
main84210-12040i199501-200009
84540SWITCH ASSY, NEUTRAL START
main84540-30270i199501-200009
main84540-30290i200009-200409
TOKAIRIKA
main84540-30300i200009-200409
MATSUSHITA
main84540-51010i200009-200409
89437COVER, SENSOR
main89437-60030i200009
CALIFORNIA(LEV) SPEC
89465SENSOR, OXYGEN
main89465-09020i199809-200009
FRONT
main89465-09030i199808-200009
REAR
main89465-09040i199808-200009
FRONT
main89465-09050i199808-199908
REAR
main89465-09080i199808-199810
FRONT
main89465-09090i199808-200009
REAR
main89465-09120i199808-200009
REAR
main89465-09140i199809-200009
FRONT
main89465-09210i199809-199908
FRONT
main89465-09220i199809-200009
FRONT
main89465-09230i199810-199908
FRONT
main89465-09250i199908-200009
CALIFORNIA(LEV) SPEC,REAR
main89465-09260i199908-200009
CALIFORNIA(LEV) SPEC,REAR
main89465-09270i199908-200009
CALIFORNIA(LEV) SPEC,REAR; REAR
main89465-09280i200009-200209
REAR
main89465-09330i200009-200209
REAR
main89465-09340i200009-200209
REAR
main89465-09350i200209-200409
REAR
main89465-09360i200209-200409
REAR
main89465-09370i200209-200409
REAR
main89465-39735i199501-199808
FRONT
main89465-39785i199501-199808
REAR
main89465-39825i199501-199808
REAR
main89465-39835i199802-199808
FRONT
main89465-39875i199501-199808
FRONT
main89465-39885i199501-199808
FRONT
main89465-80019i199802-199808
REAR
main89465-80026i199802-199808
REAR
89466GASKET, OXYGEN SENSOR
main89466-20020×2i199501-200009
89467BSENSOR, AIR FUEL RATIO
main89467-34011i199908-200009
CALIFORNIA(LEV) SPEC,FRONT
main89467-35030i199908-200009
CALIFORNIA(LEV) SPEC,FRONT
main89467-35040i199908-200009
CALIFORNIA(LEV) SPEC,FRONT
main89467-35050i200009
FRONT
main89467-35060i199908-200009
CALIFORNIA(LEV) SPEC,FRONT
89615SENSOR, KNOCK CONTROL
main89615-12040×2i200009
MATSUSHITA
main89615-12050×2i200009
DENSO
main89615-26010i200009
CALIFORNIA(LEV) SPEC
main89615-50010i199501-200009
827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B660
9017908059
main90179-08059
9043018008
main90430-18008
9165140830
main91651-40830
9338516025
main93385-16025

14 parts on this diagram · 13 diagrams in section
