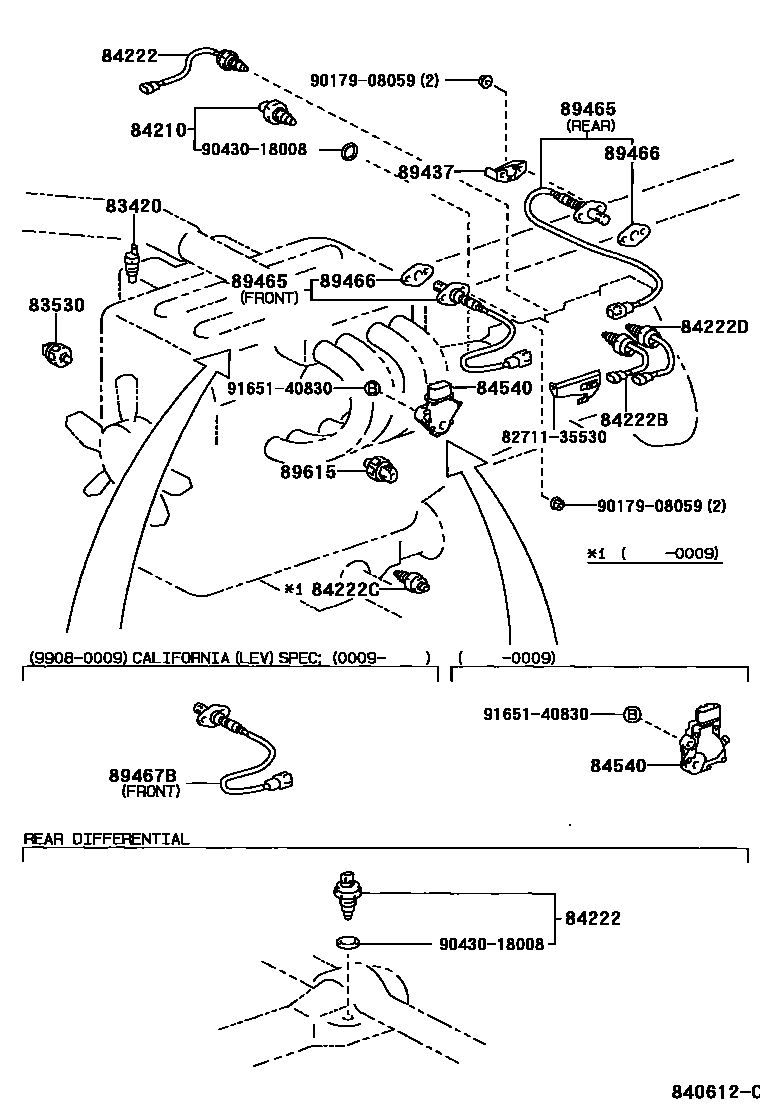

Toyota TACOMA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1INSTRUMENT PANEL SWITCHES 0007 1INSTRUMENT PANEL SWITCHES 0008 1COWL 0009 1COWL 0010 1COMBINATION SWITCH 0011 1COMBINATION SWITCH 0012 1DOOR & FLOOR SWITCHES 0013 1DOOR & FLOOR SWITCHES

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVZN160,170199501-200009

main83420-20040iRZN161,171199501-200009

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iRZN161,171,VZN170200009

main83530-30090iRZN161,171,VZN160,170199501-200009

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iRZN161,171,VZN160,170..5F199501-200009

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iVZN170..XTR;RZN161,171..W200009-200409

W(REAR DIFFERENTIAL LOCK)

main84222-35100iRZN161,171,VZN160,170199501-199609

main84222-35110iRZN161,171,VZN170200009-200409

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35080iRZN161,171,VZN170200009-200409

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35070iRZN161,171,VZN160,170199501-200009

84222DSWITCH, TRANSFER INDICATOR, NO.4

main84222-35090iRZN161,171,VZN170..4FC200009-200409

84540SWITCH ASSY, NEUTRAL START

main84540-30270iRZN161,171,VZN170..4FC199501-200009

main84540-51010iRZN161,171,VZN170..4FC200009-200409

89437COVER, SENSOR

main89437-60030iRZN161,171,VZN170199908-200009

89465SENSOR, OXYGEN

main89465-09020iVZN170..4FC199808-200009

REAR

main89465-09070iRZN161,171..4FC199808-200009

REAR

main89465-09100iVZN170..R199808-199810

FRONT

main89465-09110iVZN170..R199808-200009

REAR

main89465-09140iRZN161,171..4FC199809-200009

FRONT

main89465-09220iVZN170..4FC199809-200009

FRONT

main89465-09240iVZN170..R199810-200009

FRONT

main89465-09250iRZN161199908-200009

CALIFORNIA(LEV) SPEC,REAR

main89465-09260iRZN171199908-200009

CALIFORNIA(LEV) SPEC,REAR

main89465-09270iVZN170199908-200009

CALIFORNIA(LEV) SPEC,REAR

main89465-09280iRZN161200009-200209

REAR

main89465-09330iRZN171200009-200209

REAR

main89465-09340iVZN170200009-200209

REAR

main89465-09350iRZN161200209-200409

REAR

main89465-09360iRZN171200209-200409

REAR

main89465-09370iVZN170200209-200409

REAR

main89465-39735iVZN170..4FC199501-199808

REAR

main89465-39835iRZN161,171,VZN170..4FC199501-199808

FRONT

main89465-39855iVZN160,170..R199501-199808

REAR

main89465-39865iRZN161,171..4FC199501-199808

REAR

main89465-39895iVZN160,170..R199501-199808

FRONT

89466GASKET, OXYGEN SENSOR

main89466-20020×2iRZN161,171,VZN160,170199501-200009

89467BSENSOR, AIR FUEL RATIO

main89467-34011iVZN170..R200009

FRONT

main89467-35011iRZN161,171..W200009

FRONT

main89467-35040iRZN161,171..W199908-200009

CALIFORNIA(LEV) SPEC,FRONT

main89467-35050iRZN161,171..4FC200009

FRONT

main89467-35060iVZN170..4FC200009

FRONT

89615SENSOR, KNOCK CONTROL

main89615-12040×2iVZN160,170199501-200009

MATSUSHITA

main89615-12050×2iVZN160,170199501-200009

NIPPONDENSO

sub89615-12090

main89615-26010iRZN161,171200009

CALIFORNIA(LEV) SPEC

main89615-50010iRZN161,171199501-200009

8271135530WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35530

9017908059

main90179-08059

9043018008

main90430-18008

9165140830

main91651-40830

17 parts on this diagram · 13 diagrams in section
