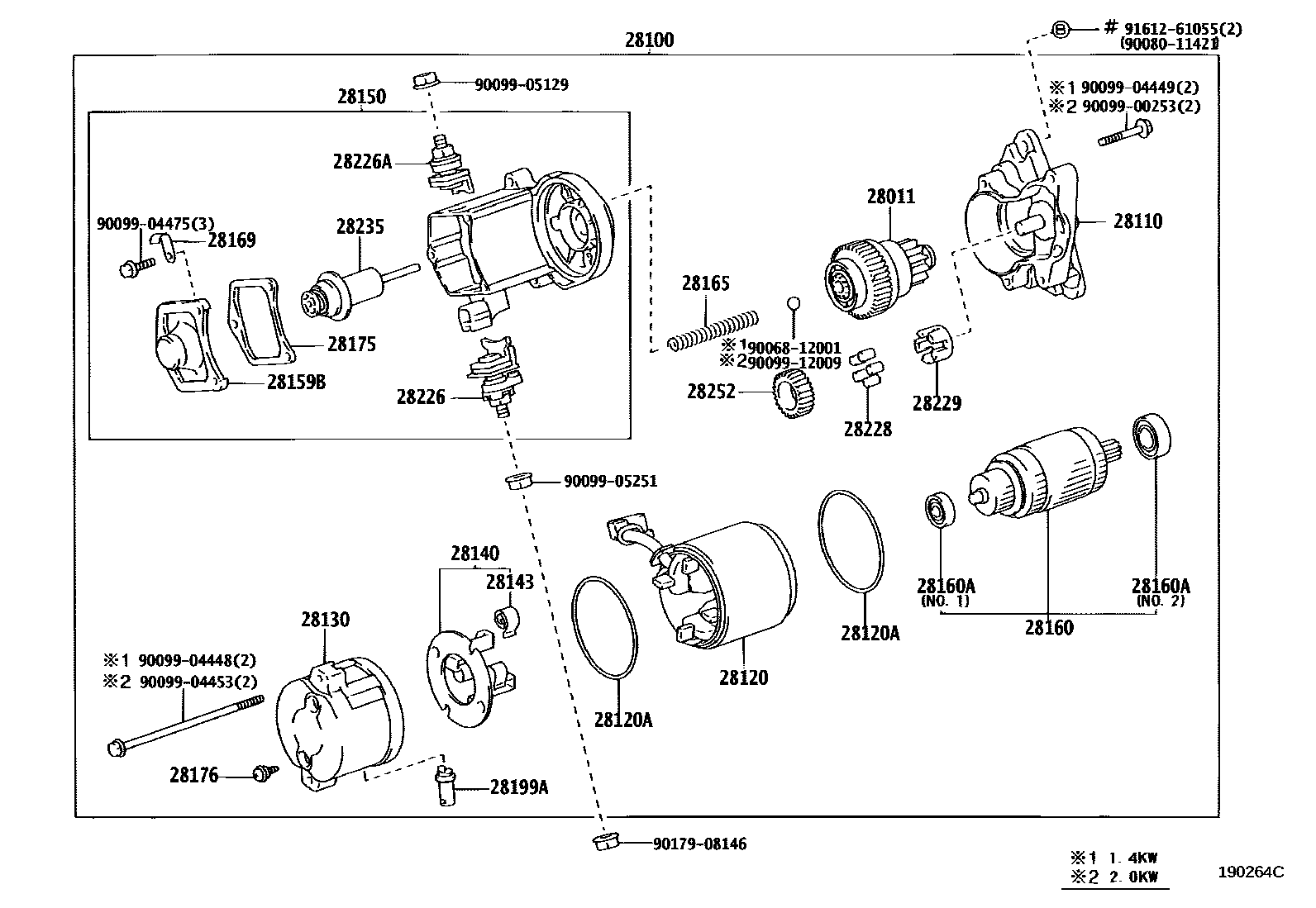

Toyota TACOMA — STARTER
28011CLUTCH SUB-ASSY, STARTER
COLD SPEC
28100STARTER ASSY
12V 1.4KW
12V 1.4KW
12V 1.8KW; 12V 1.8KW,COLD SPEC
12V 2.0KW,COLD SPEC
28110HOUSING ASSY, STARTER DRIVE
COLD SPEC
COLD SPEC
28120YOKE ASSY, STARTER
COLD SPEC
COLD SPEC
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
COLD SPEC
COLD SPEC
28140HOLDER ASSY, STARTER BRUSH
COLD SPEC
28143SPRING, STARTER BRUSH
COLD SPEC
28150SWITCH ASSY, MAGNET STARTER
COLD SPEC
COLD SPEC
28159BCOVER, MAGNET SWITCH
COLD SPEC
28160ARMATURE ASSY, STARTER
COLD SPEC
COLD SPEC
28160ABEARING, STARTER ARMATURE
NO.1
NO.2
COLD SPEC,NO.2
COLD SPEC,NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
28169CLAMP, STARTER MOTOR LEAD WIRE
28175PACKING, STARTER BEARING COVER
COLD SPEC
28176SCREW, STARTER
COLD SPEC
COLD SPEC
28199APROTECTOR, DUST STARTER
28226STARTER KIT, BATTERY TERMINAL
COLD SPEC
COLD SPEC
28226ASTARTER KIT, MOTOR TERMINAL
COLD SPEC
28228ROLLER, STARTER IDLE GEAR CLUTCH
28229RETAINER, STARTER IDLE GEAR
COLD SPEC
28235PLUNGER, MAGNET SWITCH
COLD SPEC
28252GEAR, STARTER IDLE
COLD SPEC
9006812001
main90068-12001
9008011421
main90080-11421
9009900253
main90099-00253
9009904448
main90099-04448
9009904449
main90099-04449
9009904453
main90099-04453
9009904475
main90099-04475
9009905129
main90099-05129
9009905251
main90099-05251
9009912009
main90099-12009
9017908146
main90179-08146
9161261055
main91612-61055
35 parts on this diagram · 2 diagrams in section
STARTER for Toyota TACOMA
This section contains 40 genuine Toyota parts for the STARTER system of the Toyota TACOMA. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, YOKE ASSY, STARTER, RING, O(FOR STARTER YOKE).
