Toyota TACOMA — SPEAKER

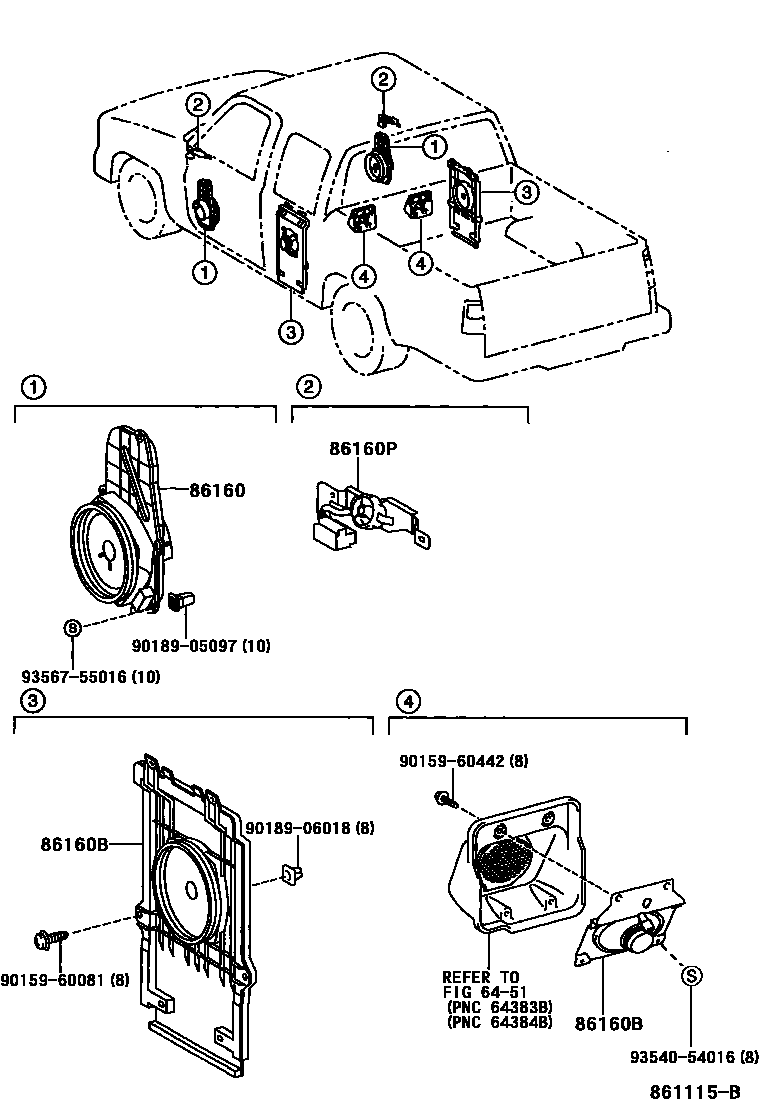

Parts diagram

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

86160SPEAKER ASSY, FRONT NO.1

main86160-04020i199501-200009

RH

main86160-04030i199501-200009

LH

main86160-AD010i200009

RH

main86160-AD020i200009

LH

86160BSPEAKER ASSY, REAR

main86160-04040×2i199501-200009

main86160-AD050×2i200009

main86160-AD060×2i200009

main86160-AD070i200009

RH

main86160-AD080i200009

LH

86160PSPEAKER ASSY, FRONT NO.2

main86160-AD030i200009-200409

RH

main86160-AD040i200009-200409

LH

9015960081

main90159-60081

9015960442

main90159-60442

9018905097

main90189-05097

9018906018

main90189-06018

9354054016

main93540-54016

9356755016

main93567-55016

10 parts on this diagram · 2 diagrams in section

SPEAKER for Toyota TACOMA

This section contains 10 genuine Toyota parts for the SPEAKER system of the Toyota TACOMA. Key components include: INSIDE TRIM BOARD, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
