Toyota TACOMA — SPARE WHEEL CARRIER

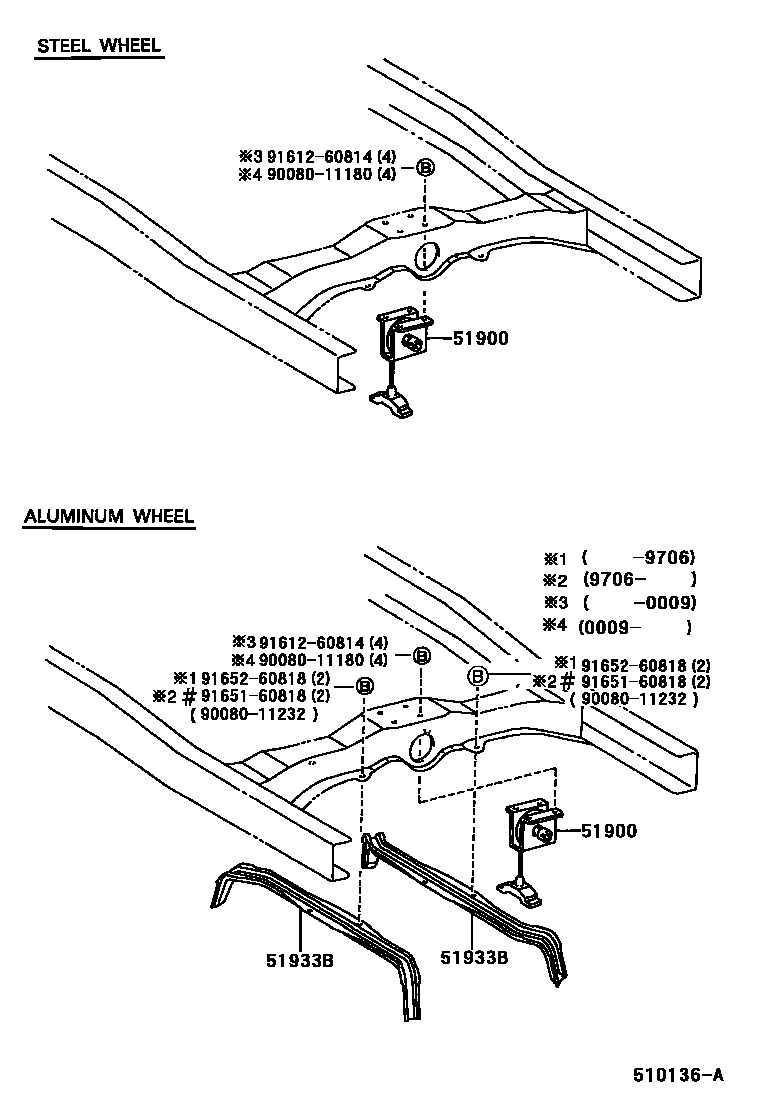

Parts diagram

51900CARRIER ASSY, SPARE WHEEL

main51900-04040i199501-200009

51933BSTOPPER, SPARE WHEEL CARRIER, RH

main51933-35160×2i199501-200009

9008011180

main90080-11180

9008011232

main90080-11232

9161260814

main91612-60814

9165160818

main91651-60818

9165260818

main91652-60818

7 parts on this diagram · 1 diagram in section

SPARE WHEEL CARRIER for Toyota TACOMA

This section contains 7 genuine Toyota parts for the SPARE WHEEL CARRIER system of the Toyota TACOMA. Key components include: CARRIER ASSY, SPARE WHEEL, STOPPER, SPARE WHEEL CARRIER, RH.
